Integra GS-R Sedan L4-1797cc 1.8L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Under-Hood Fuse/Relay Box
Under-Hood Fuse/Relay Box

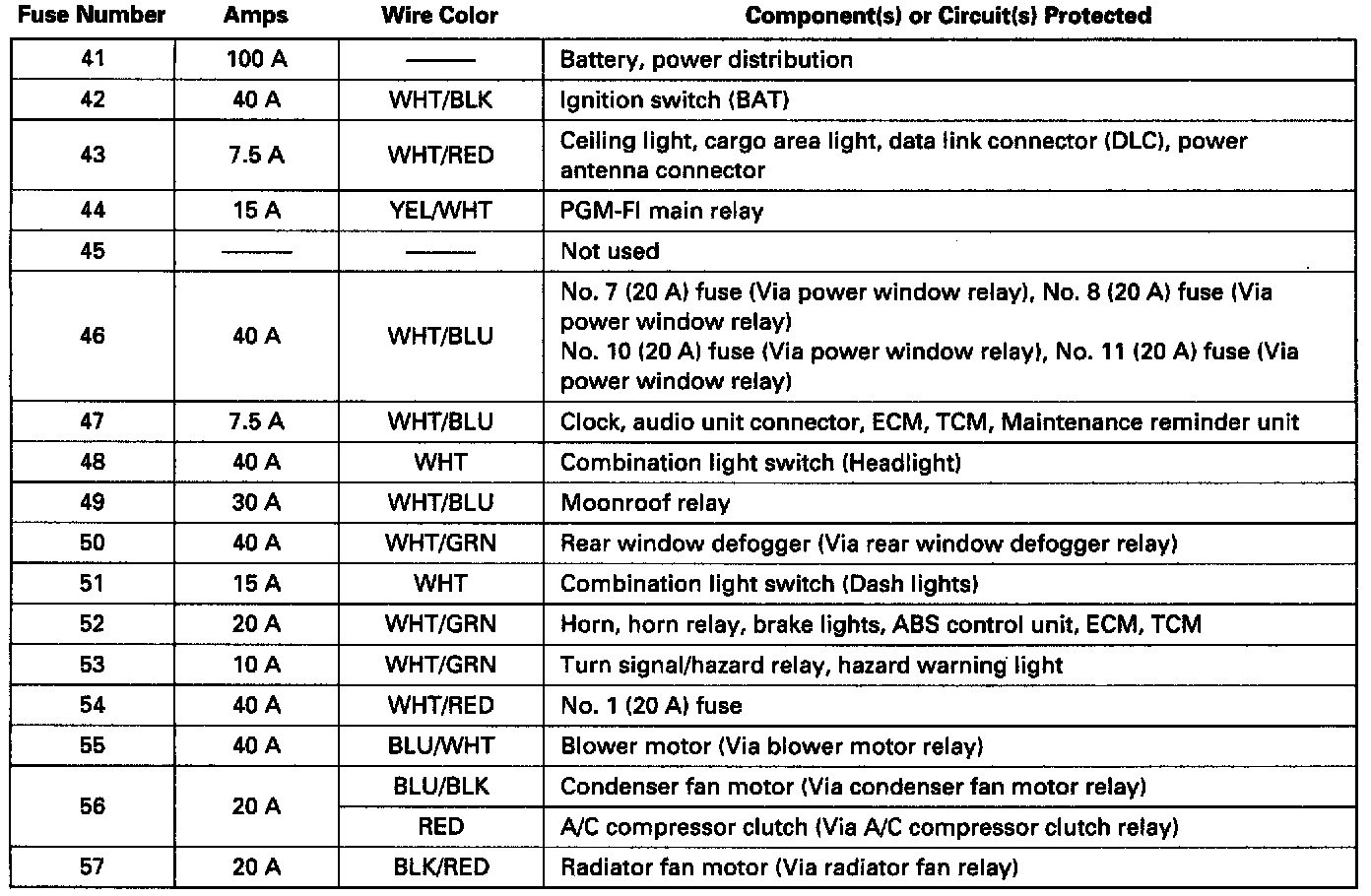

Under-Hood Fuse/Relay Box (1 Of 2):

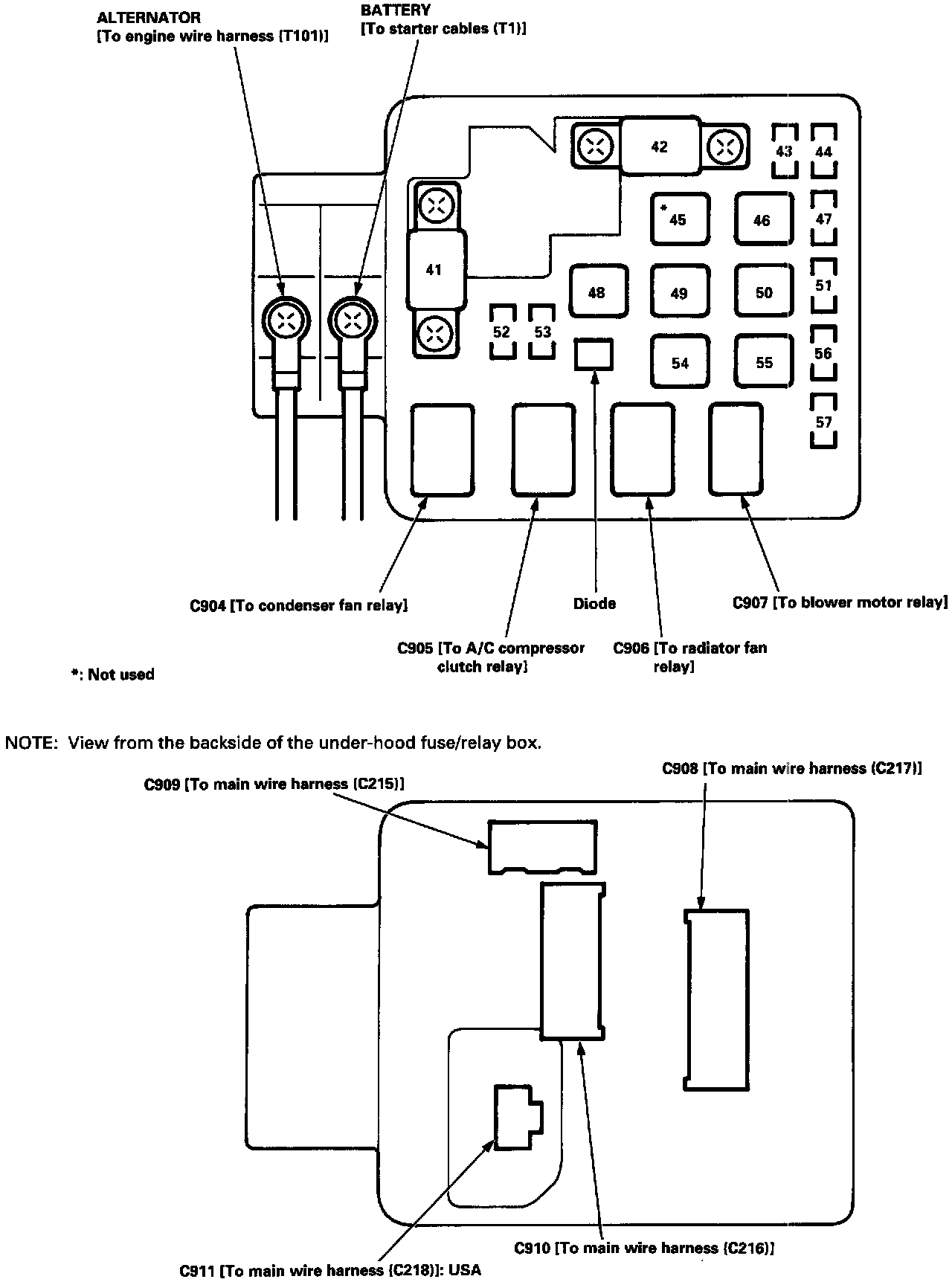

Under-Hood Fuse/Relay Box (2 Of 2):
21. Right Rear Corner of Engine Compartment:
