Mode Control Motor

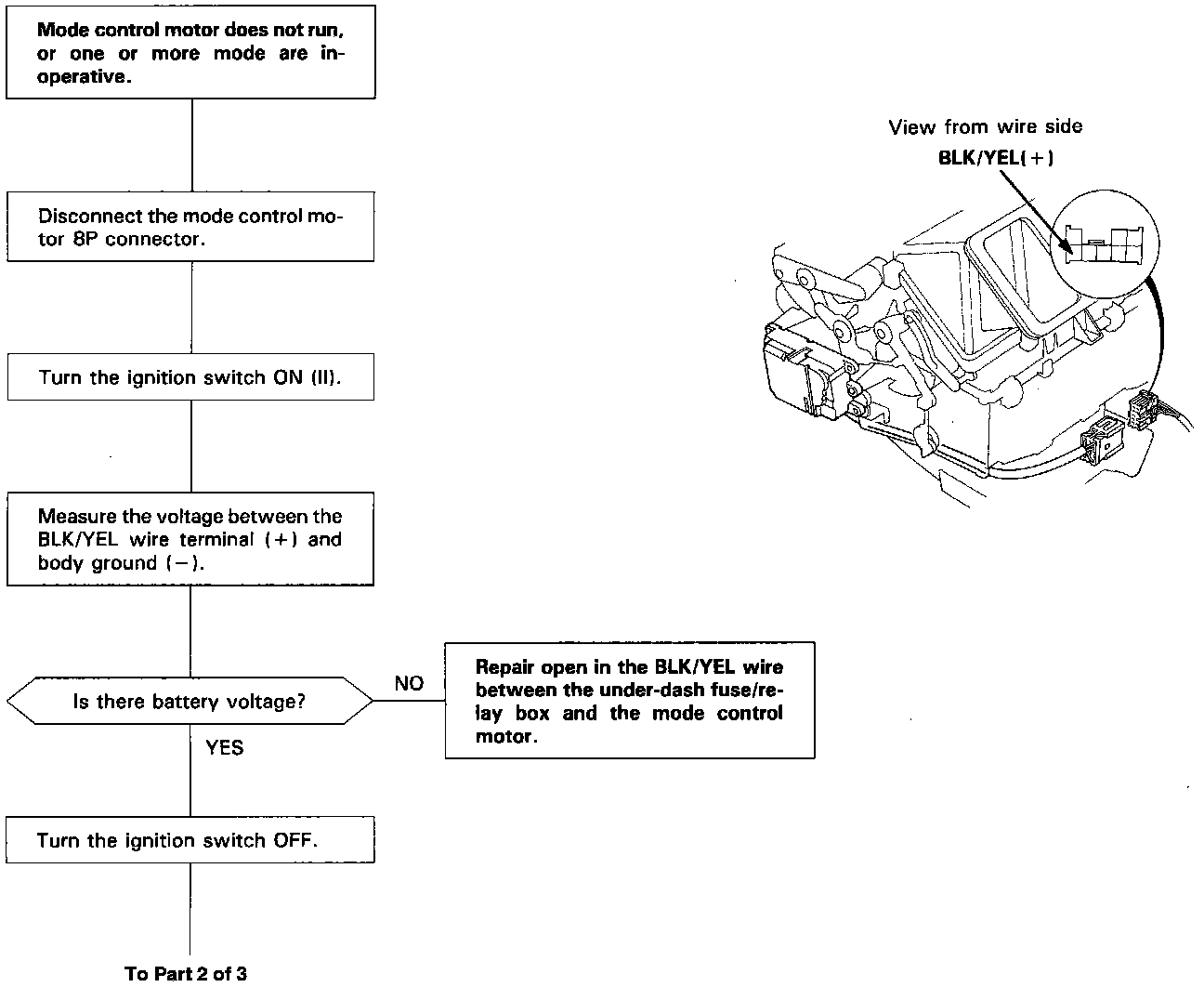

Mode Control Motor (1 Of 3):

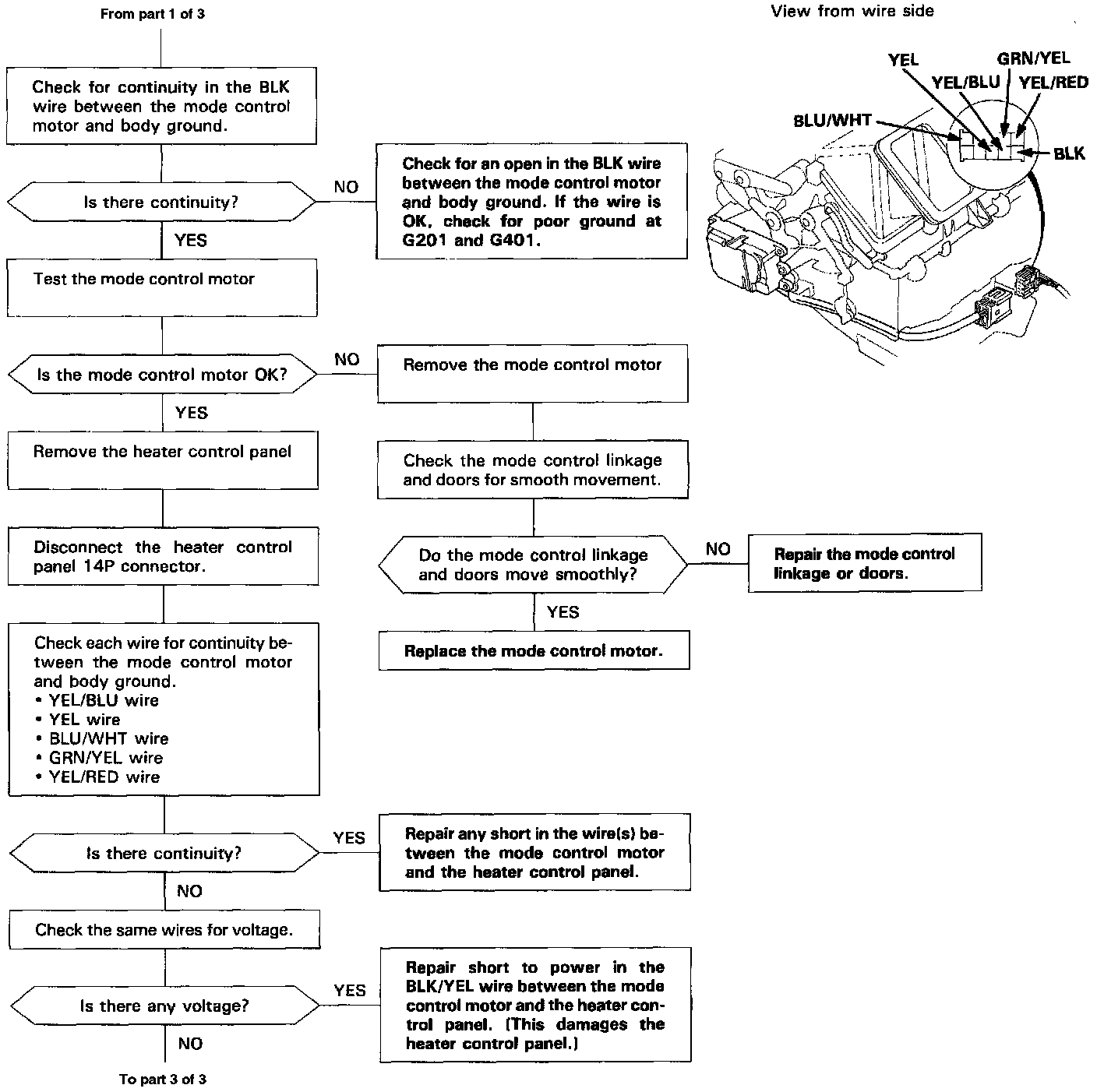

Mode Control Motor (2 Of 3):

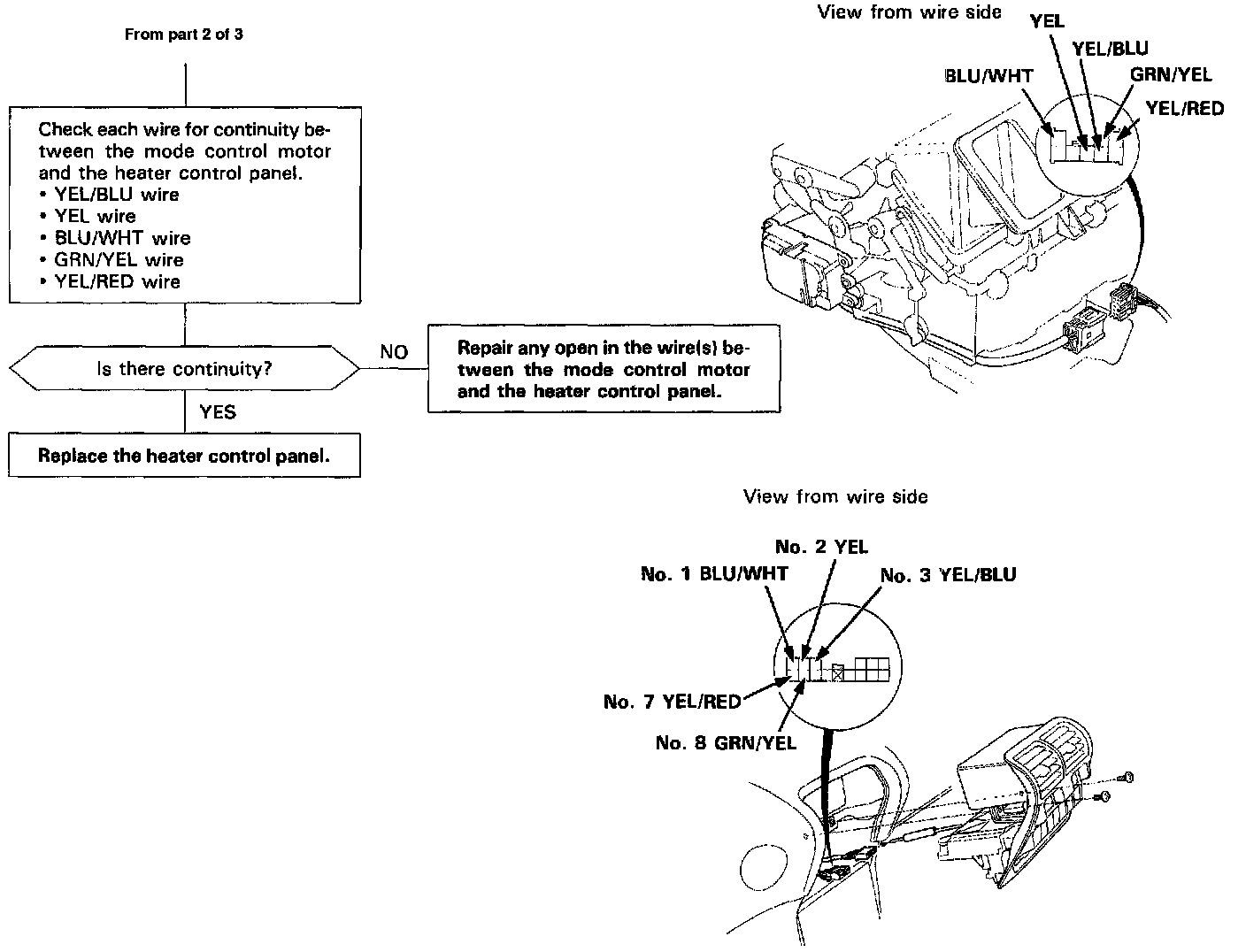

Mode Control Motor (3 Of 3):






Mode Control Motor / Troubleshooting
