Transmission Control Systems

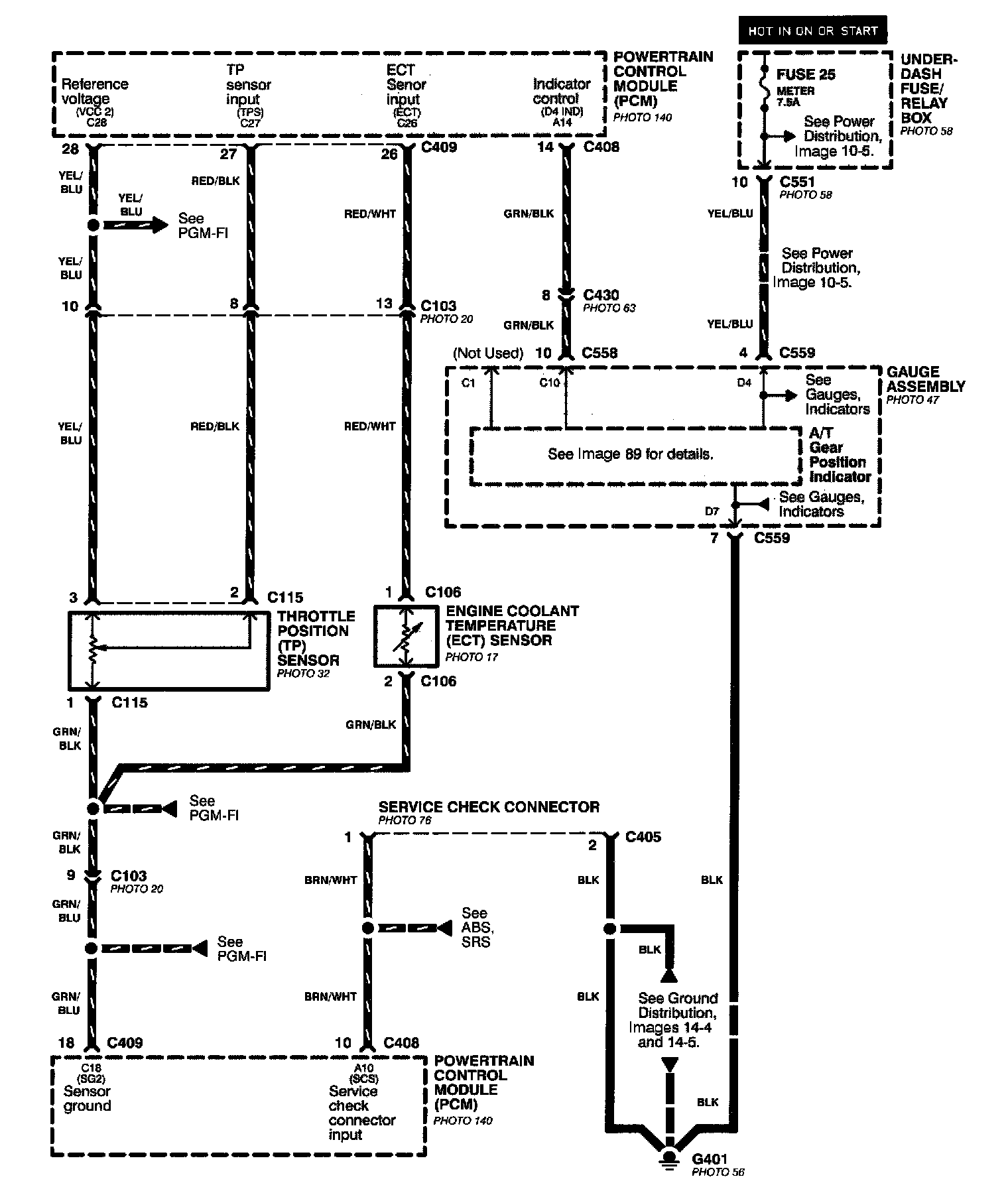

Automatic Transmission Controls Image 39-4:

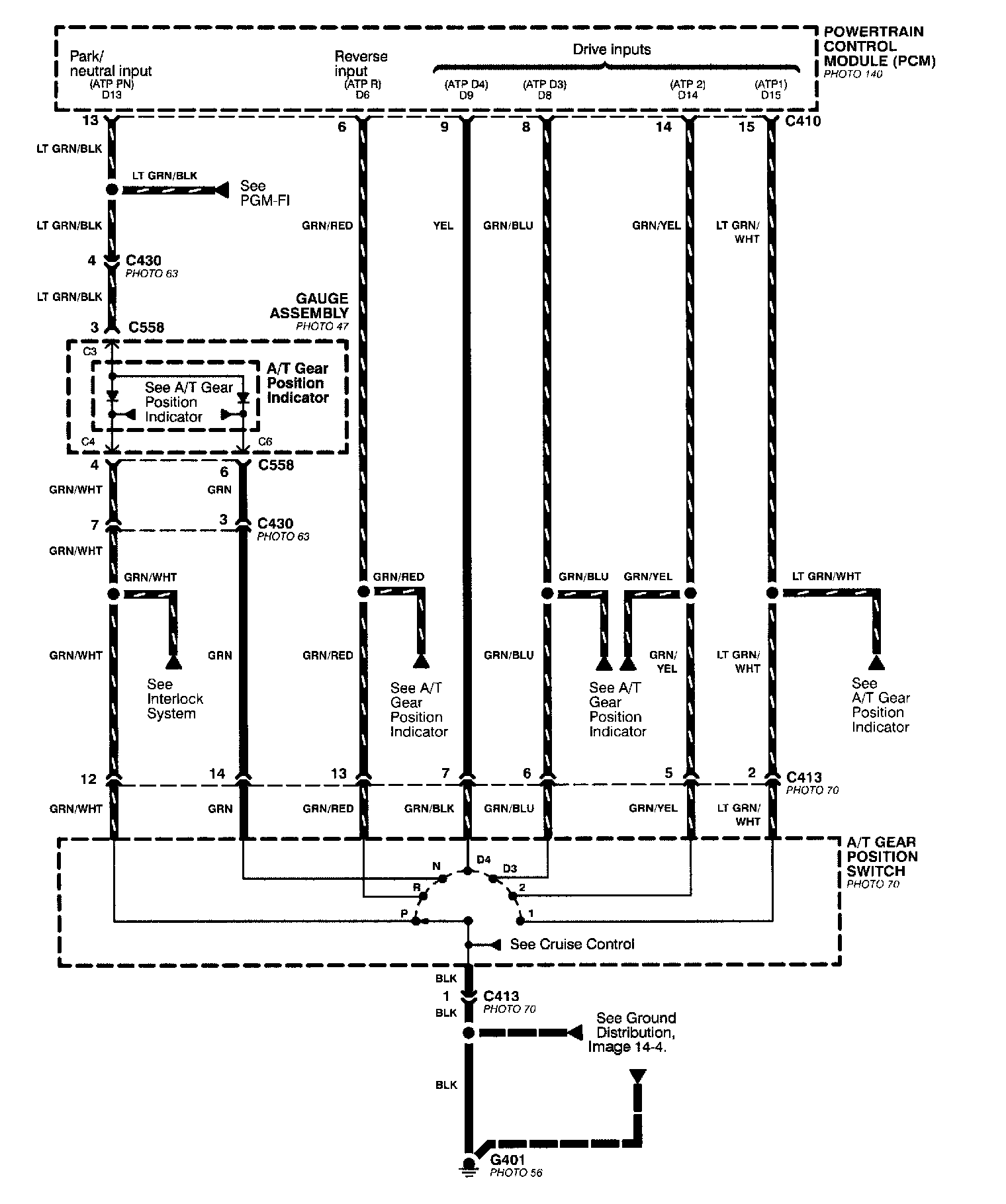

Automatic Transmission Controls Image 39-5:

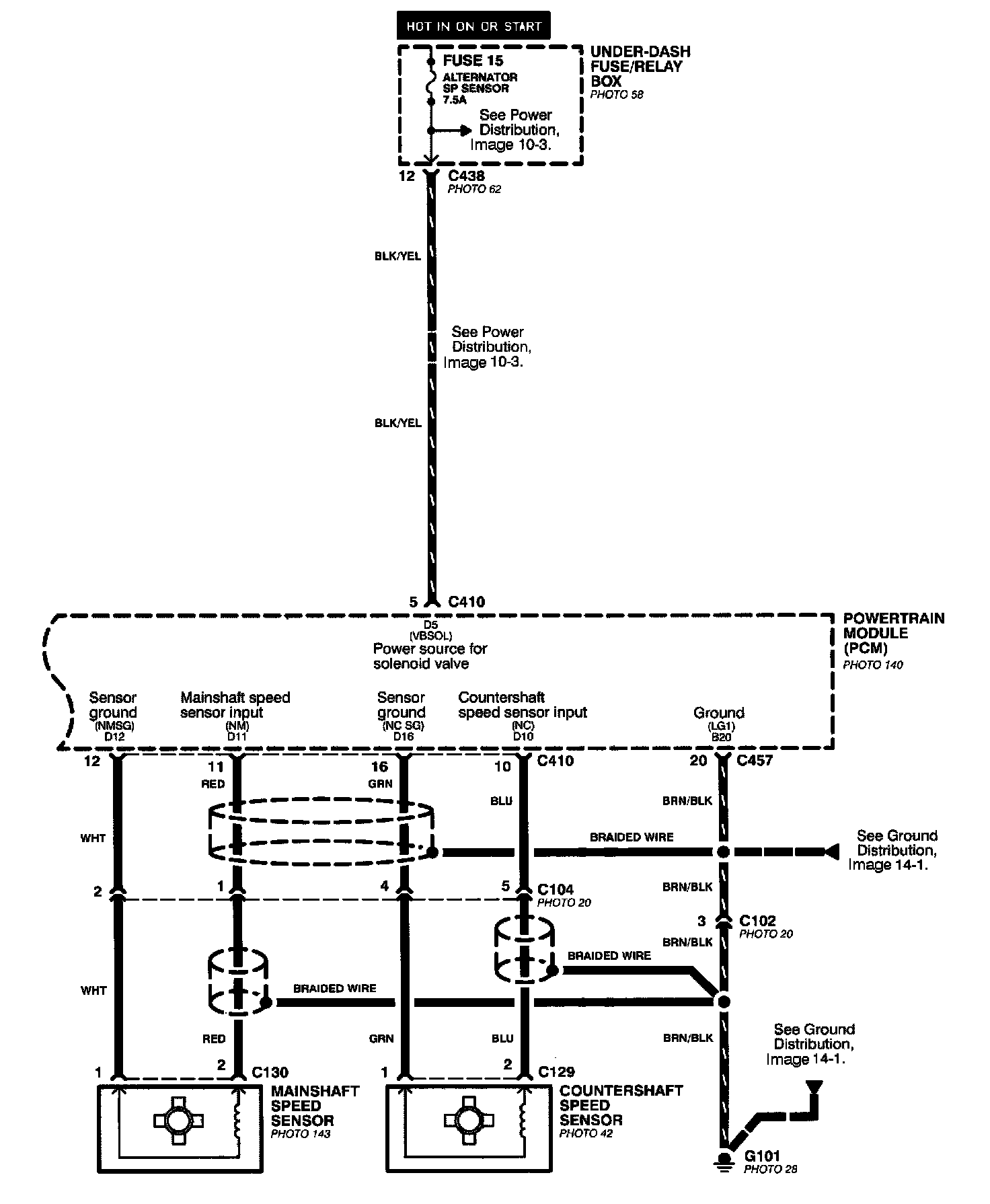

Automatic Transmission Controls Image 39-6:

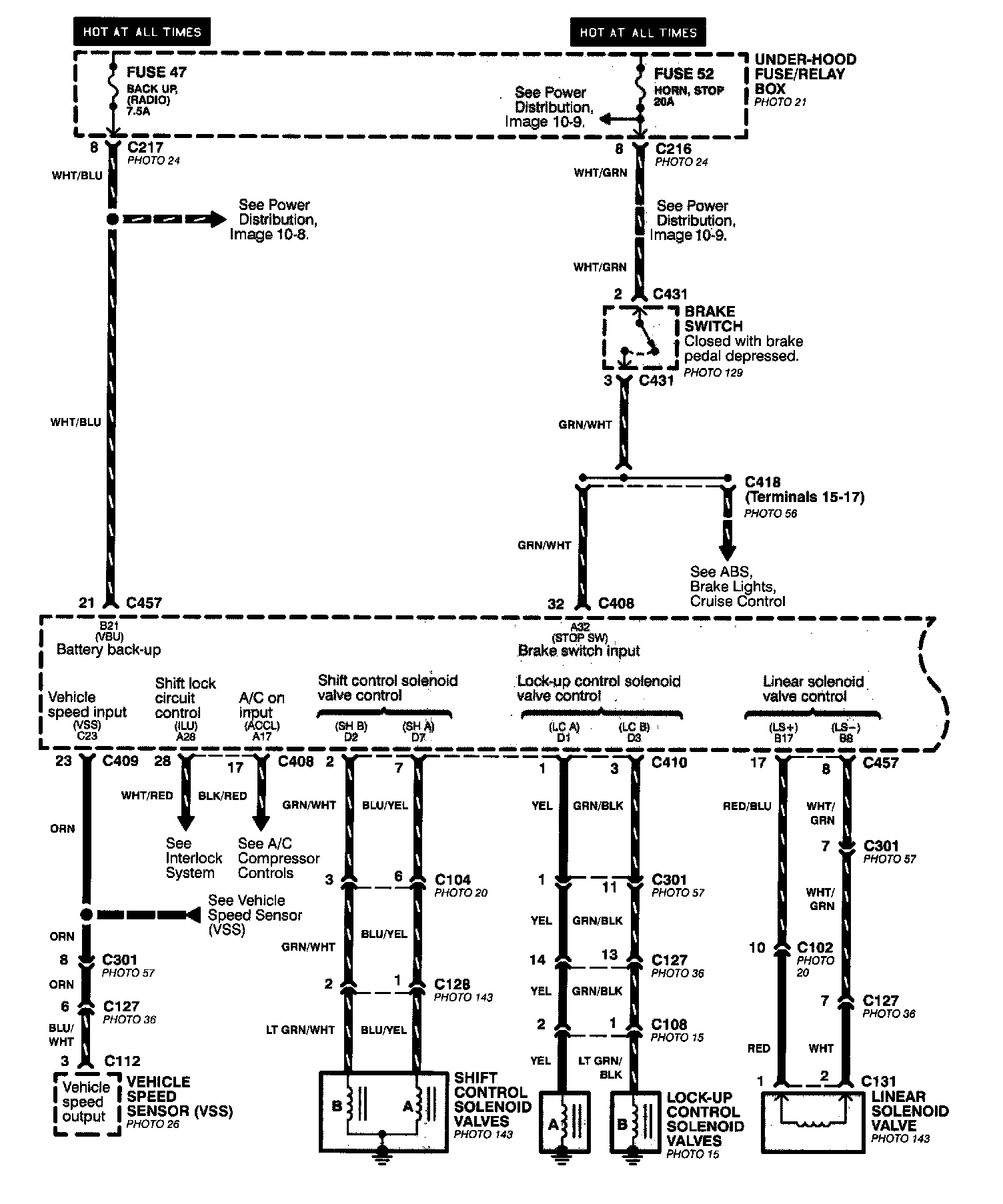

Automatic Transmission Controls Image 39-7:
