Integra GS-R Sedan L4-1797cc 1.8L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Security System
Security System

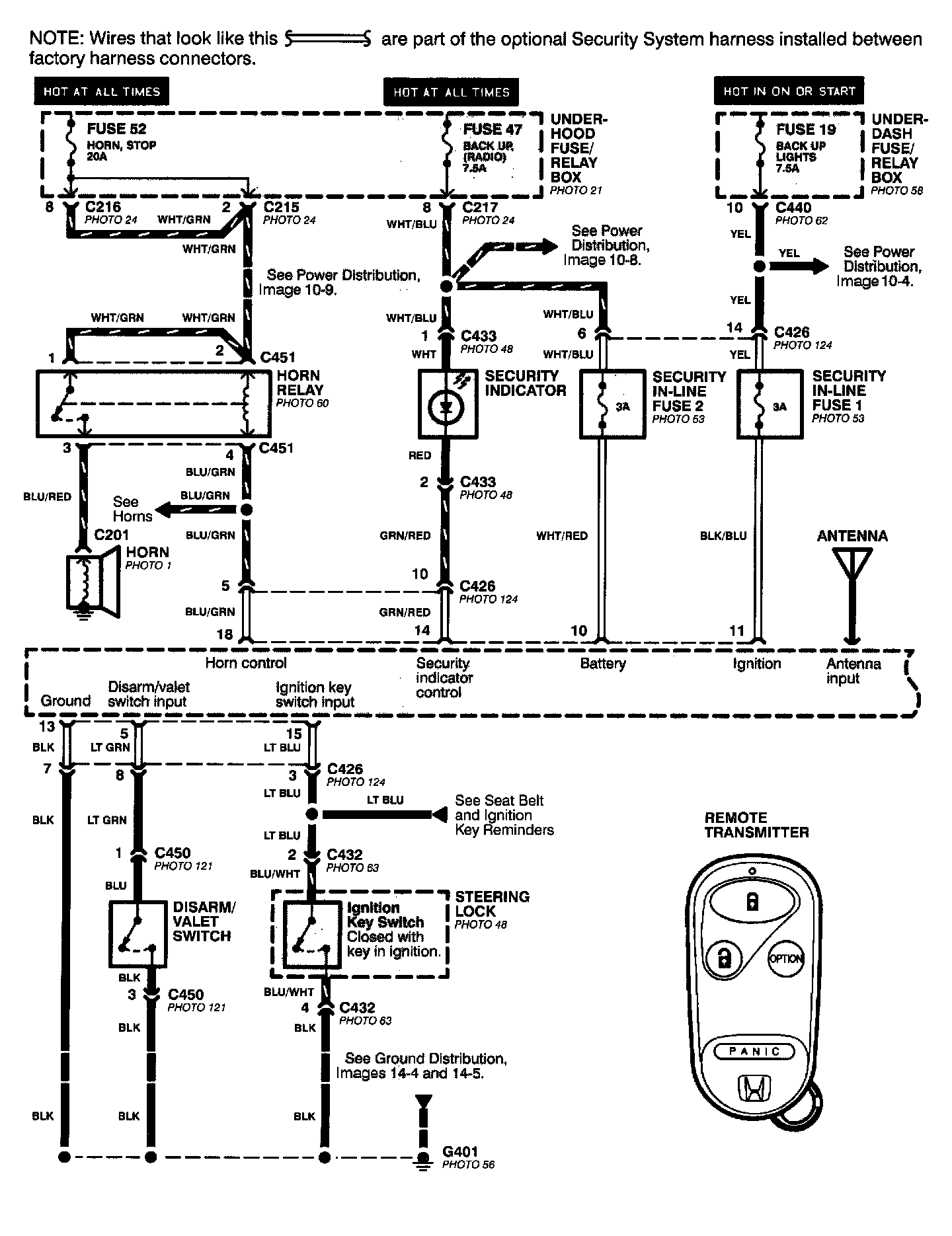

Security System Image 133:

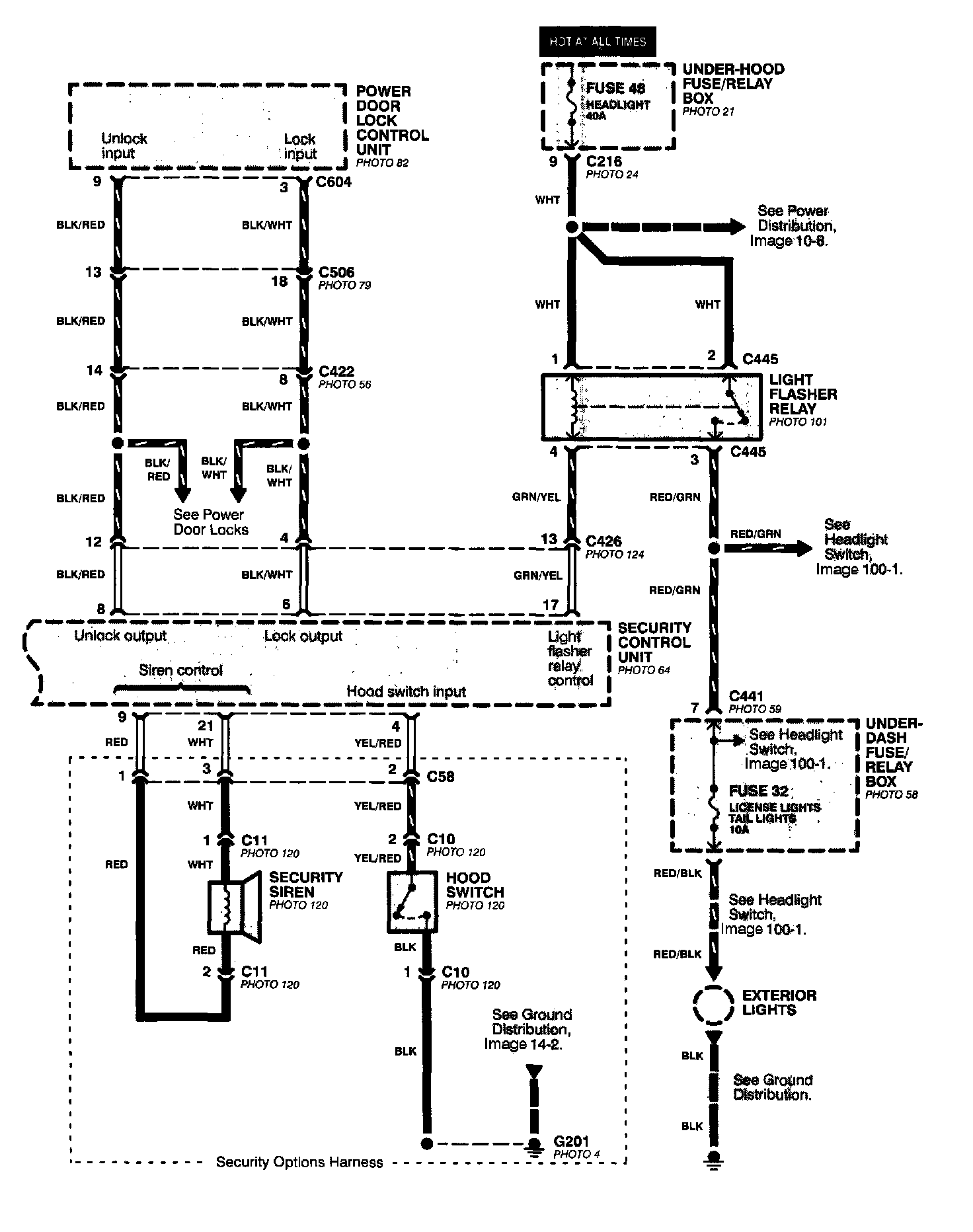

Security System Image 133-1:

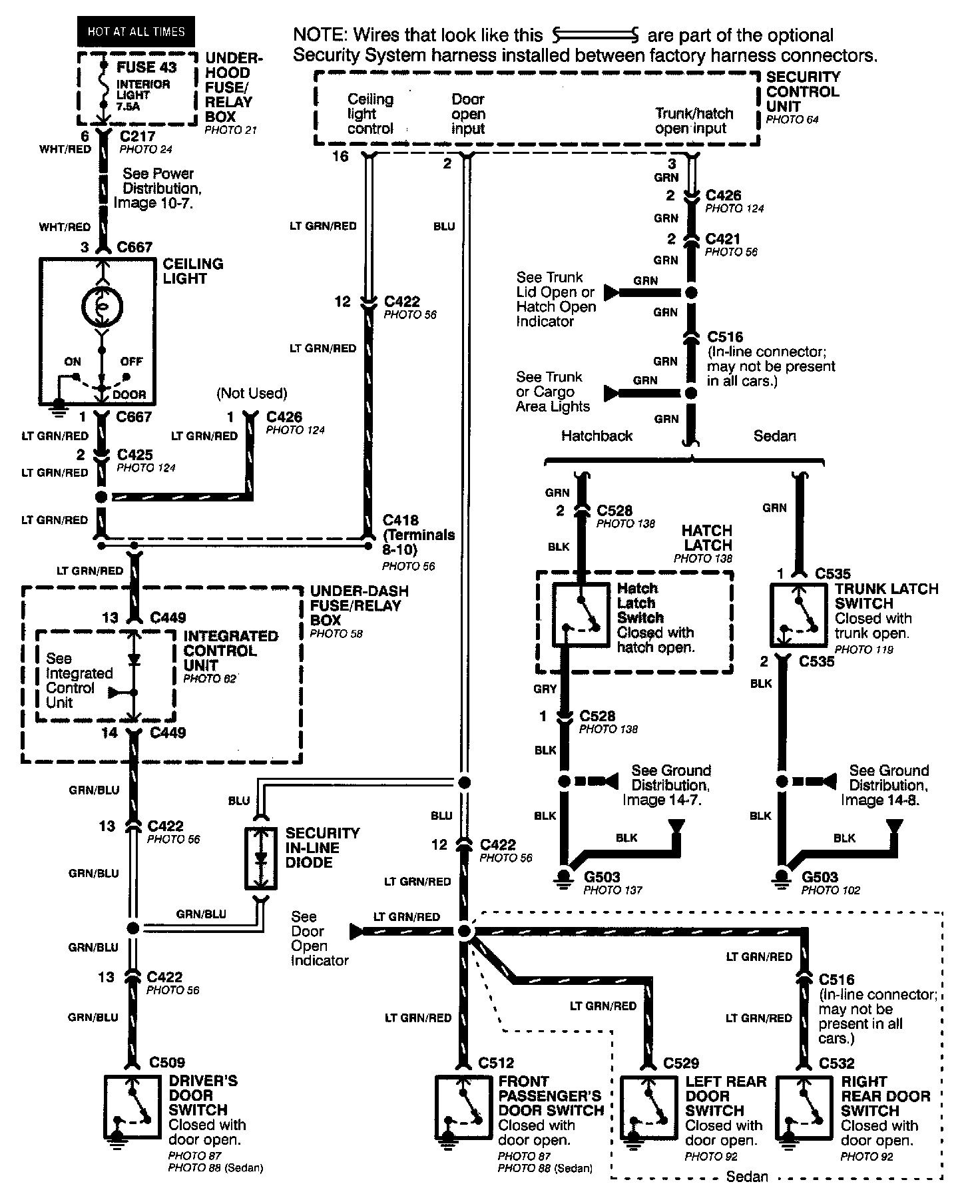

Security System Image 133-2:

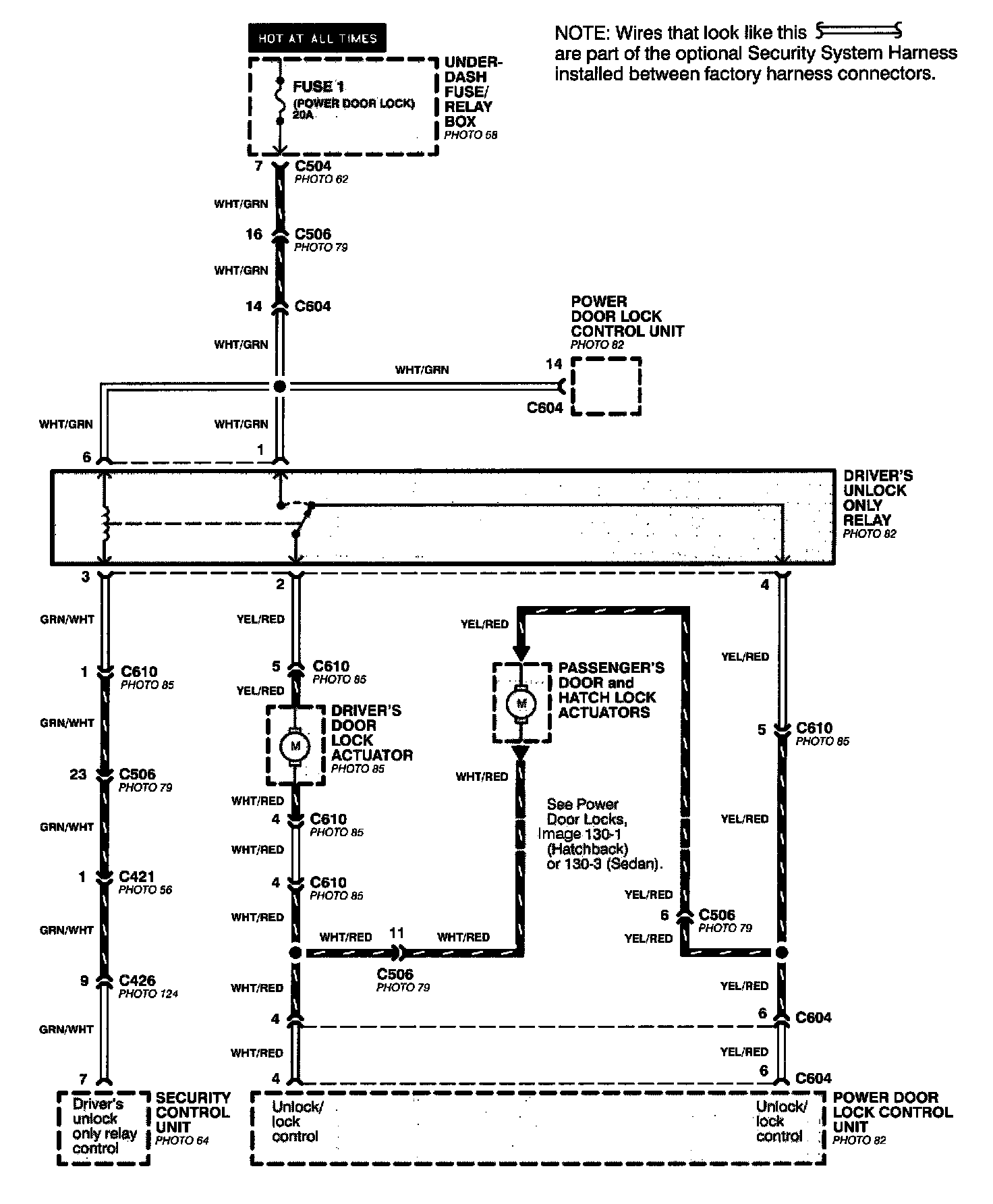

Security System Image 133-3:

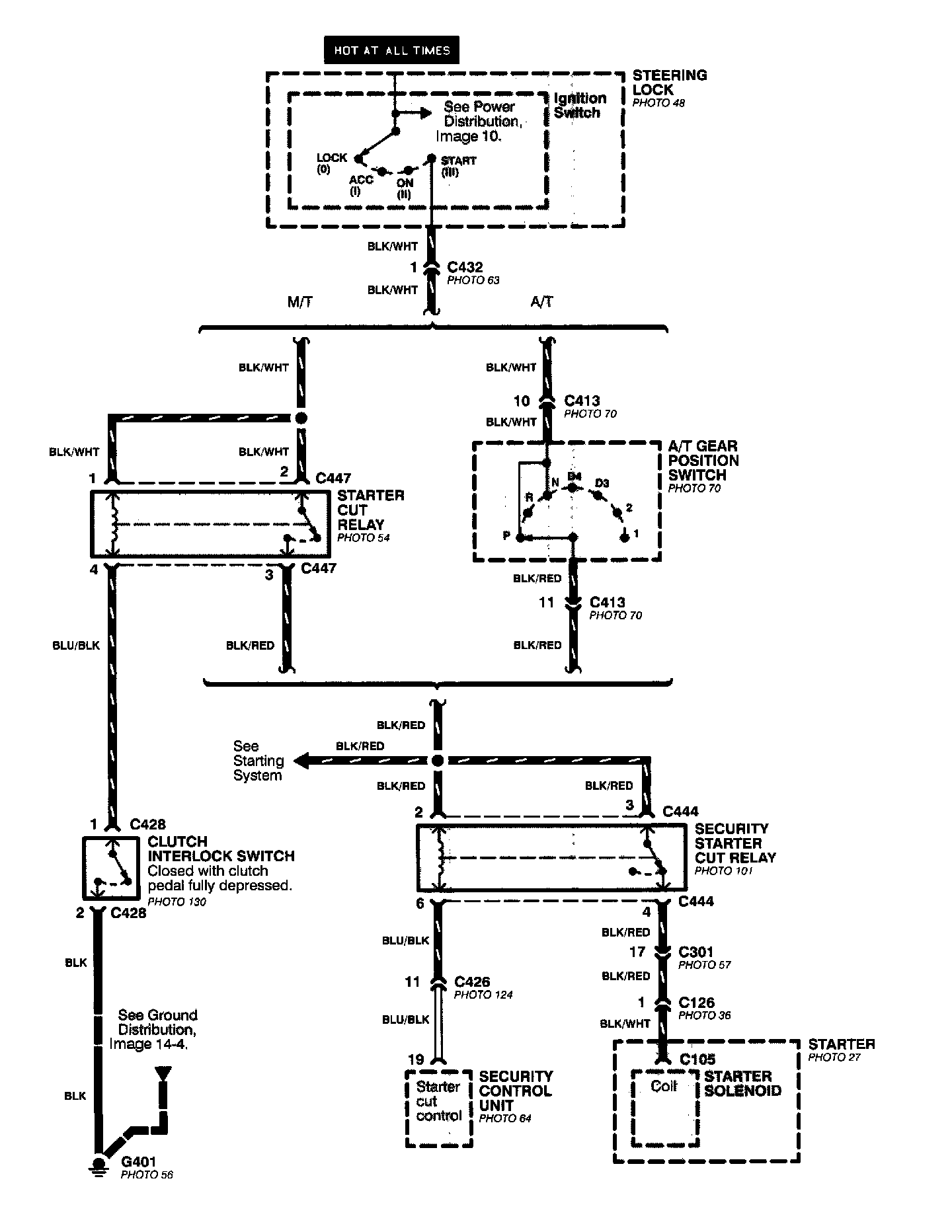

Security System Image 133-4:
