Integra GS-R Coupe L4-1797cc 1.8L DOHC (VTEC) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Cooling System
>>
Water Pump

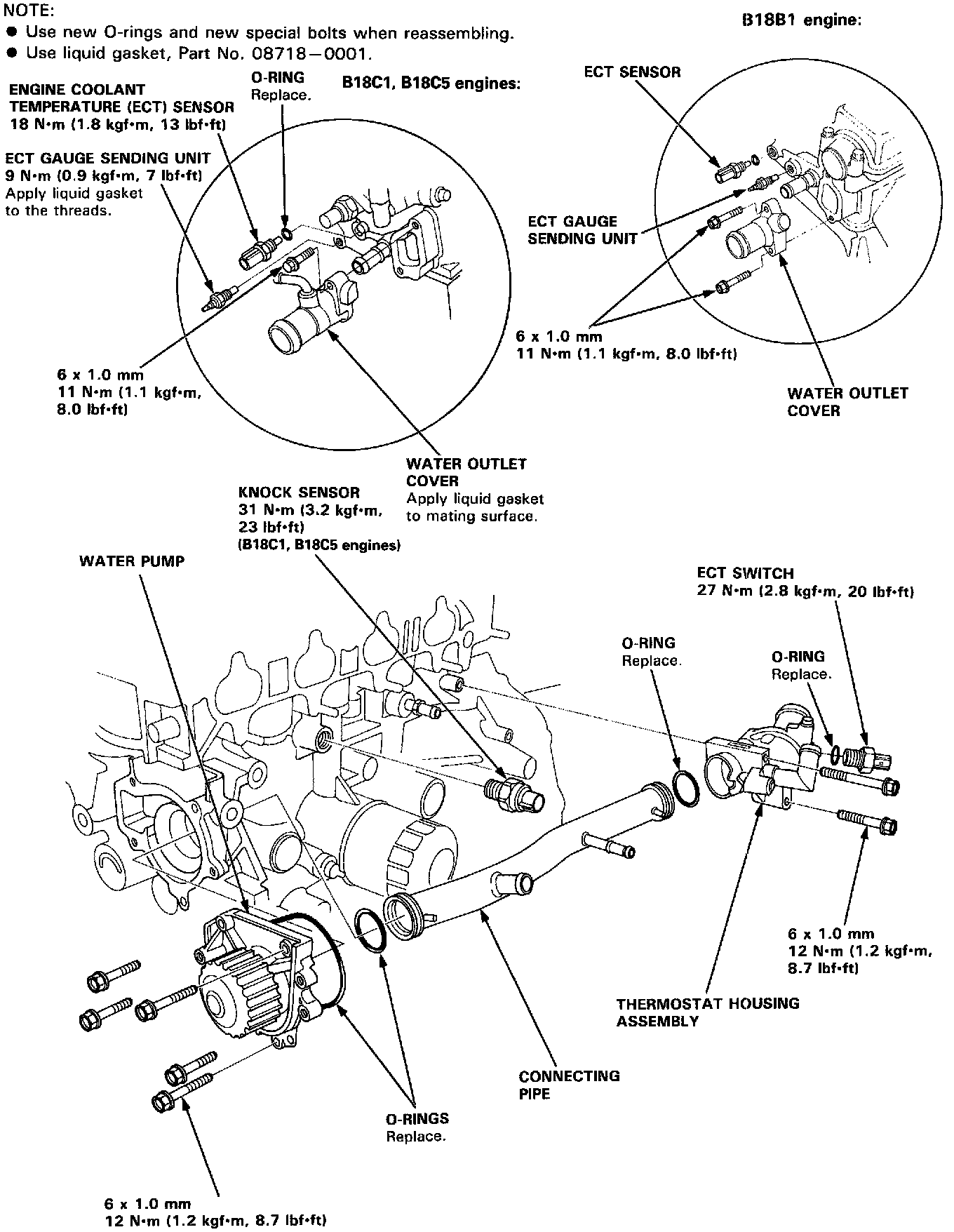

Water Pump
NOTE:
-
Use new O-rings and new special bolts when reassembling.
-
Use liquid casket. Part No. 08718 - 0001.
