Passenger's Window Motor Test

1. Remove the door panel.

Passenger's Window Motor Test:

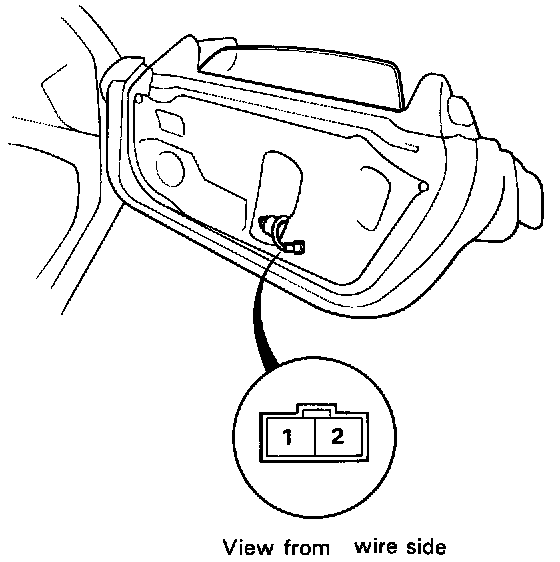

2. Disconnect the 2P connector from the motor.
3. Test the motor by connecting battery power to the No. 1 terminal and ground to the No. 2 terminal. Test the motor in each direction, by switching the leads.

CAUTION: When the motor stops running, disconnect one lead immediately.

Passenger's Window Motor Test:

4. If the motor does not run, replace it.
