Parking Pin Switch Test/Replacement

1. Remove the center console panel and dashboard.
2. Disconnect the 2P connector of the parking pin switch from the floor wire harness.

Parking Pin Switch Test/Replacement:

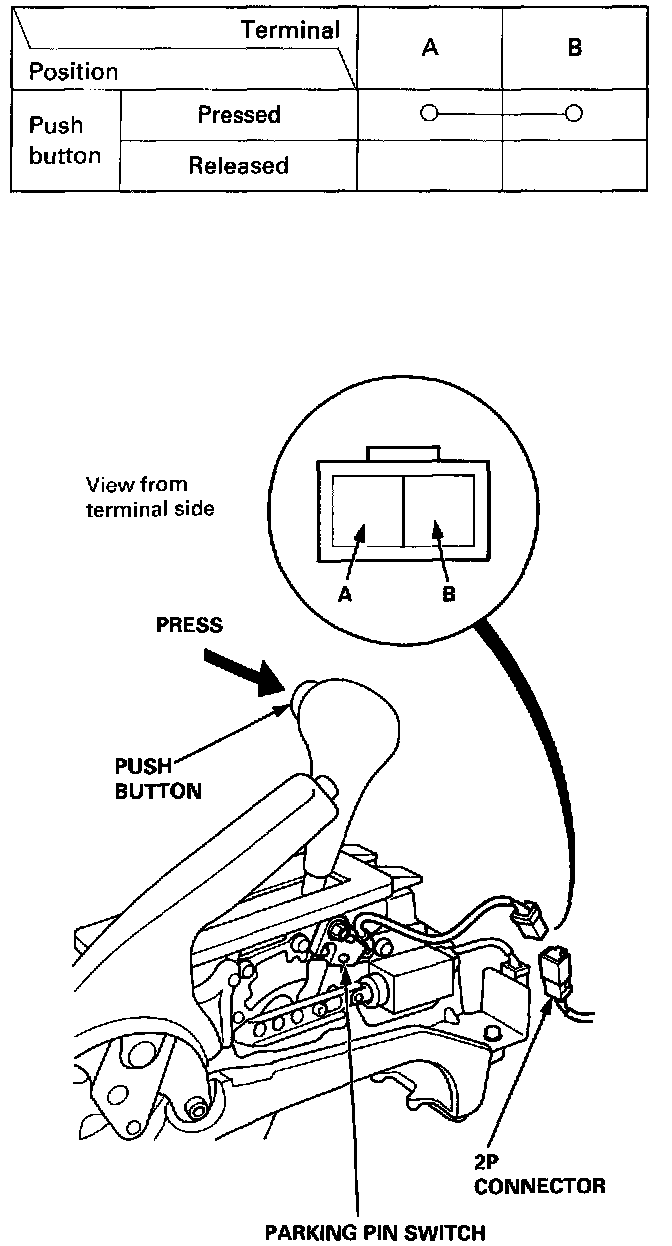

3. Check for continuity between the terminals in each switch lever position according to the table.
4. If necessary, replace the parking pin switch.

Parking Pin Switch Test/Replacement:

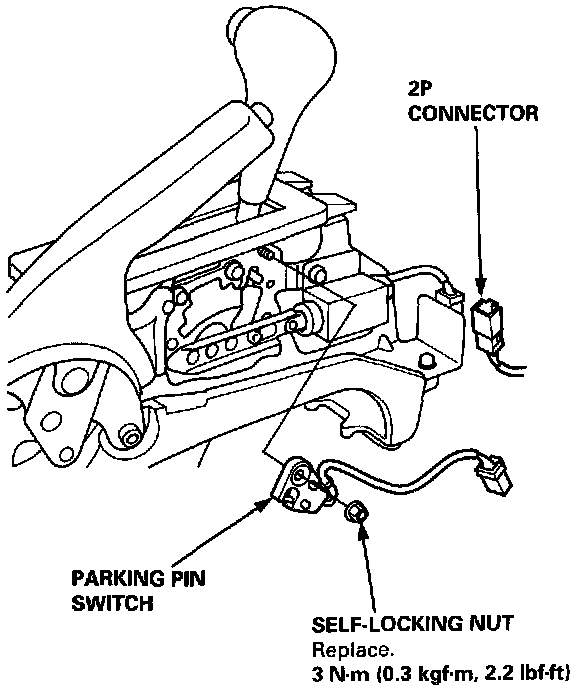

5. Remove the self-locking nut and parking pin switch.
