A/T Gear Position Switch Test

SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS section before performing repairs or service.

1. Remove the center console panel and dashboard .

A/T Gear Position Switch Test:

2. Disconnect the 12P and 2P connectors from the A/T gear position switch.

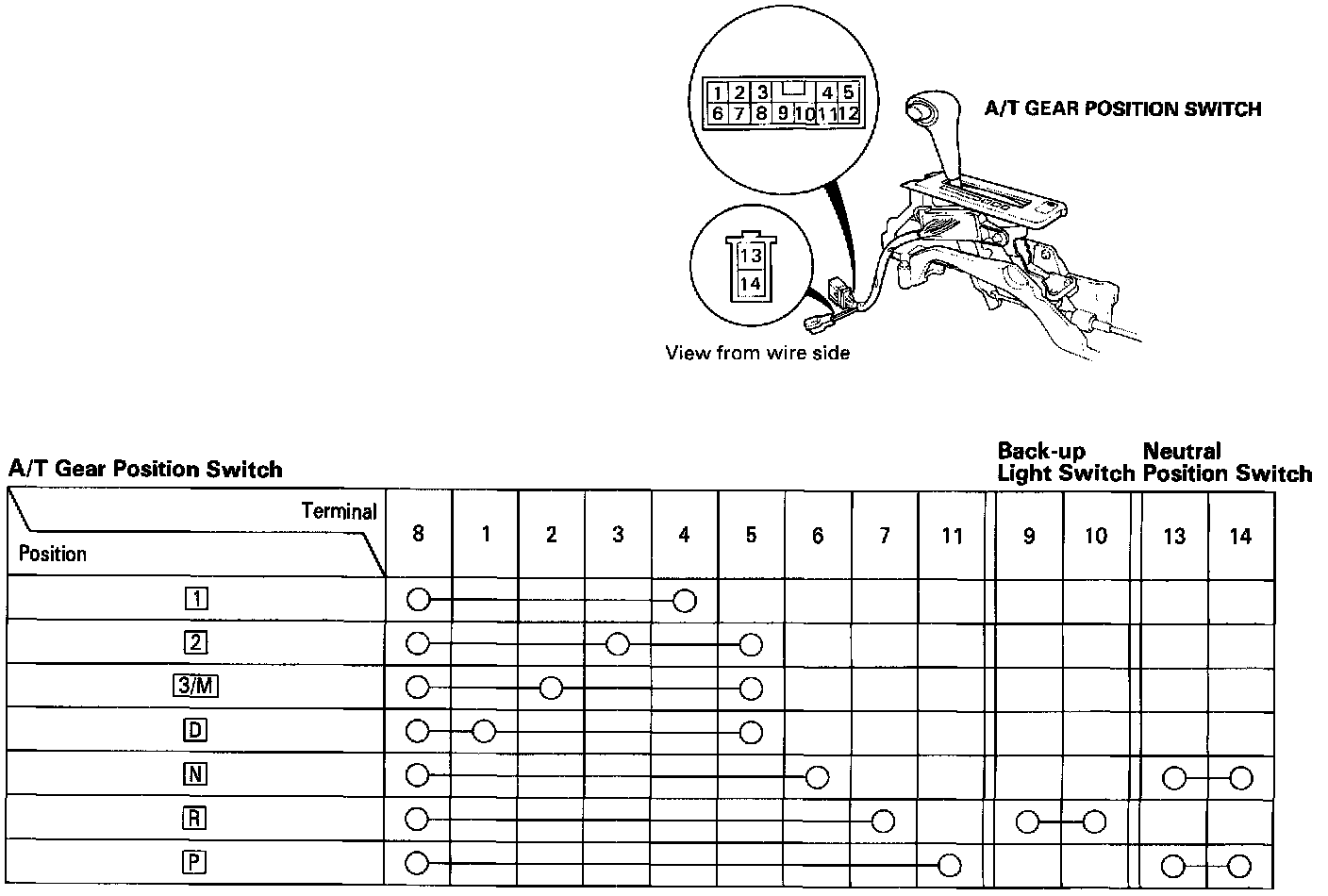

3. Check for continuity between the terminals in each switch position according to the table.
- Move the lever back and forth at each switch position without touching the push button, and check for continuity within the range of free play.
- If there is no continuity within the range of free play, adjust the position of the switch as described below.
