Shifter A/T: Adjustments

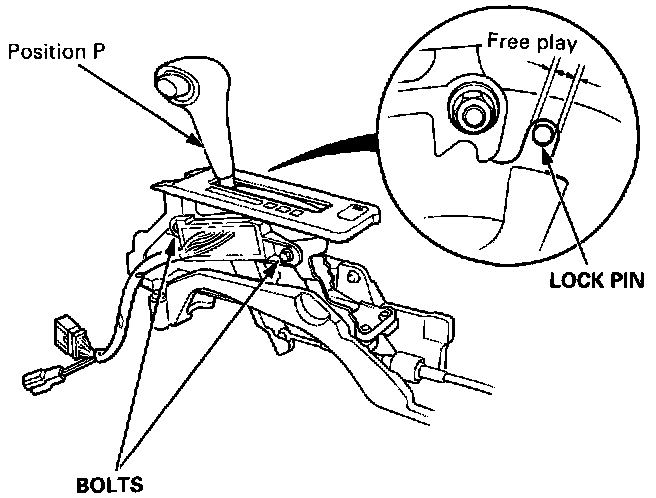

A/T Gear Position Switch Adjustment:

1. Shift to [P] position, and loosen the bolts.
2. Slide the switch in the direction of [P] position [within 2.0 mm (0.08 in)] until there is continuity between No. 8 and No. 11 terminals in the range of free play of the shift lever.
3. Recheck for continuity between each of the terminals.


NOTE:
- If adjustment is not possible, check for damage to the shift lever detent and/or bracket. If there is no damage, replace the A/T gear position switch.
- You should be able to start the engine with the shift lever in position [N], within the range of free play.
