Shift Cable: Service and Repair

REMOVAL/INSTALLATION
SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS section before performing repairs or service.

WARNING: Make sure lifts are placed properly.





1. Remove the center console panel.

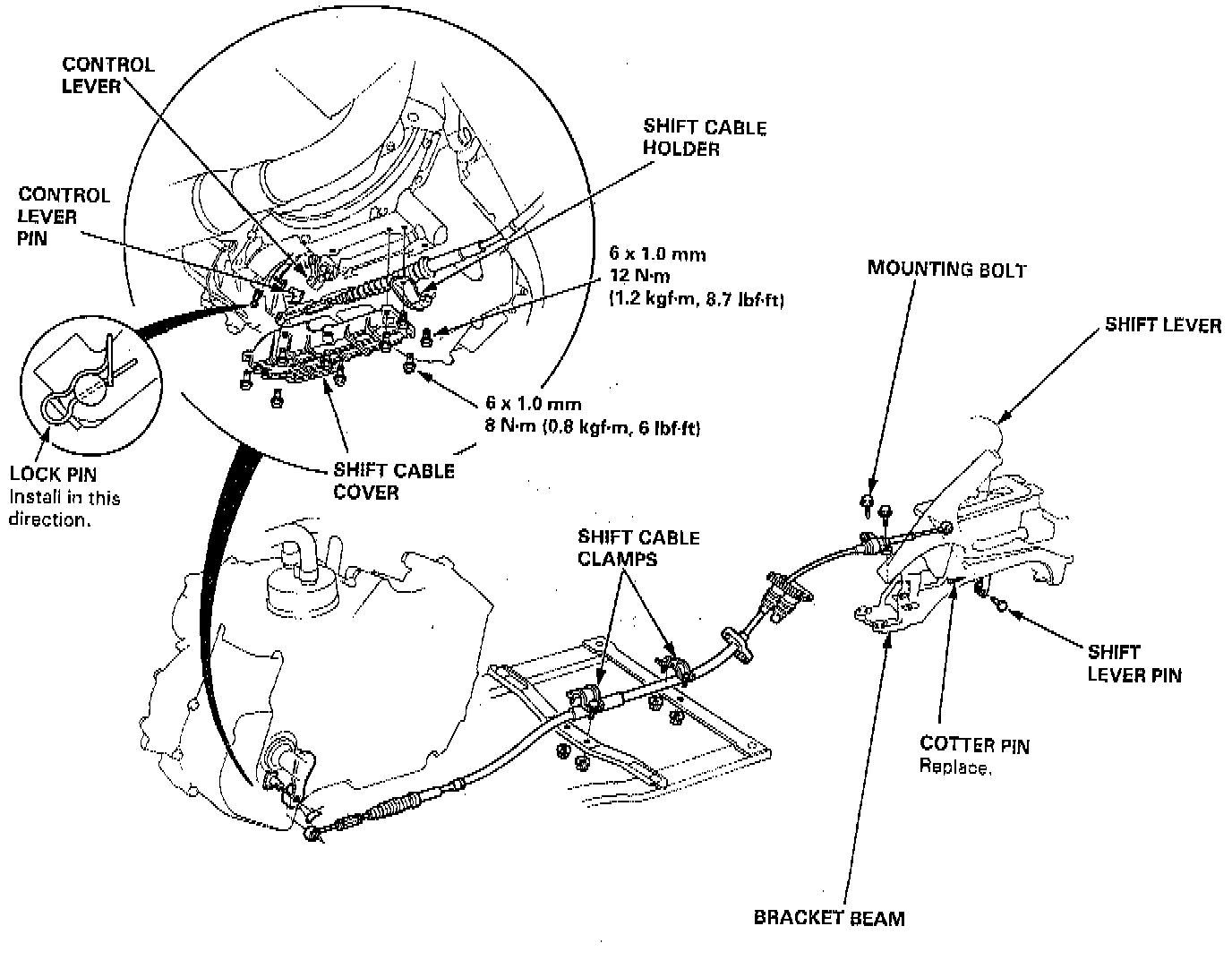

2. Remove the shift cable by removing the cotter pin and shift lever pin from the shift lever. Remove the mounting bolts from the bracket beam.
3. Remove the shift cable clamp.
4. Remove the shift cable holder and shift cable cover.
5. Remove the shift cable by removing the lock pin and control lever pin from the control lever.

CAUTION: Take care no to bend the cable when removing it.

6. Install the shift cable in the reverse order of removal.
7. After installation, check the cable adjustment.
