Removal

WARNING: Store a removed airbag assembly with the pad surface up. If the airbag is improperly stored face down, accidental deployment could propel the unit with enough force to cause serious injury. SRS components are located in this area. Review the SRS component locations, precautions, and procedure before performing repairs or service. Refer to Air Bags and Seat Belts.

NOTE: Before removing the steering wheel, make sure the front wheels are straight ahead.

REMOVAL
1. Disconnect both the negative cable and positive cable from the battery.

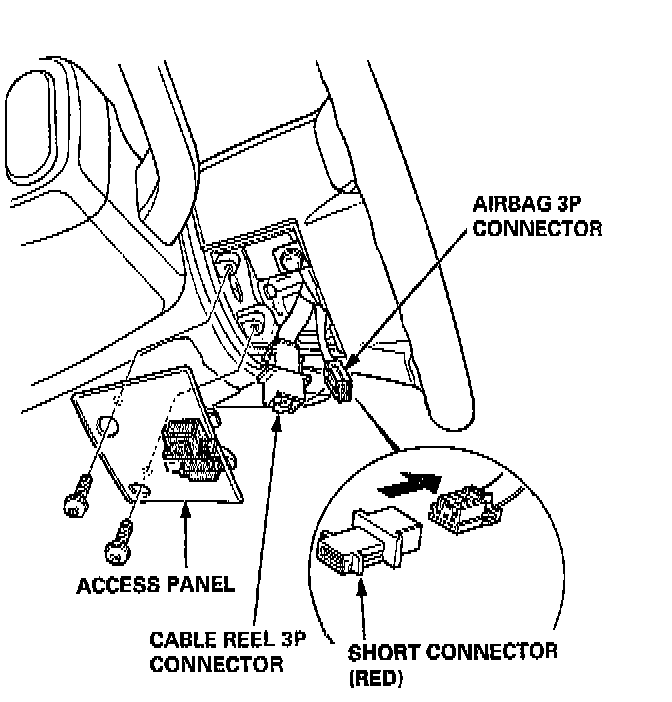

2. Remove the access panel from the steering wheel lower cover, then remove the short connector.
3. Disconnect the connector between the airbag and cable reel.





4. Connect the short connector to the airbag 3P connector.

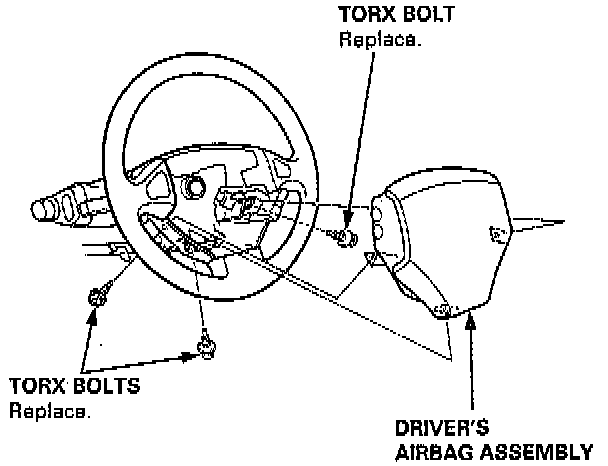

5. Remove the Torx bolts using a Torx T30 bit, then remove the driver's airbag assembly.

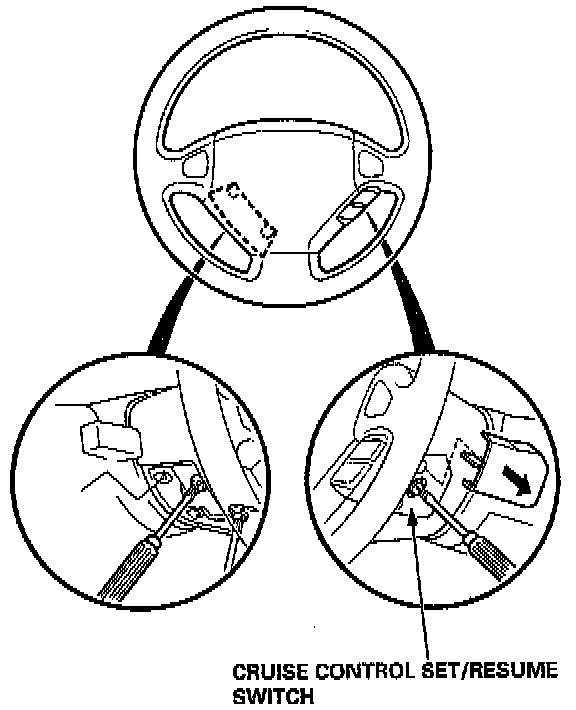

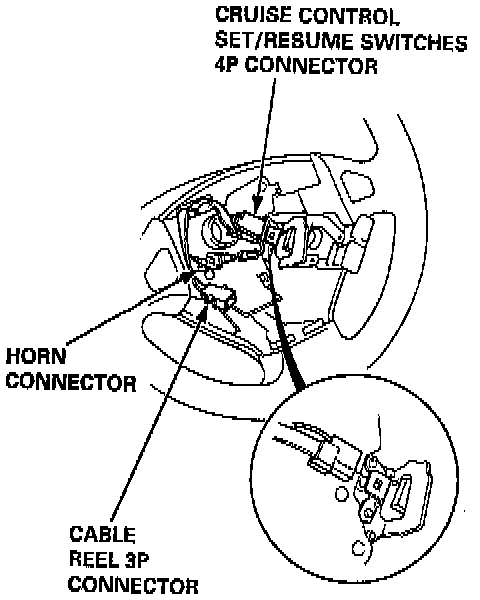

7. Disconnect the connectors from the horn and cruise control set/resume switches, then remove the cable reel 3P connector from its clips.

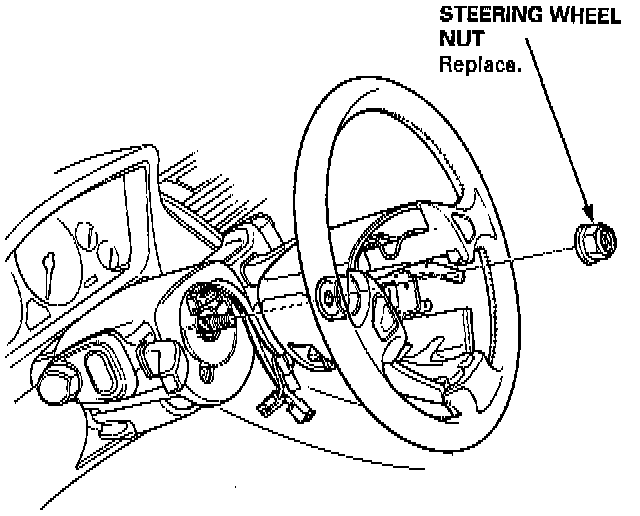

8. Remove the steering wheel nut.
9. Remove the steering wheel by rocking it slightly from side-to-side as you pull steadily with both hands.

CAUTION: If an intact driver's airbag assembly has been removed from a scrapped vehicle or has been found defective or damaged during transit, storage or service, it should be deployed. Carefully inspect the driver's airbag assembly before installing. Do not install an driver's airbag assembly that shows signs of being dropped or improperly handled, such as dents, cracks or deformation. Always keep the short connector on the airbag 3P connector when the harness is disconnected. Do not disassemble or tamper with the driver's airbag assembly. Refer to Air Bags and Seat Belts.

NOTE: Before installing the steering wheel, make sure the front wheels are straight ahead.
