Acura
>>
1999
>>
NSX V6-3.0L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Under-Hood Fuse/Relay Box

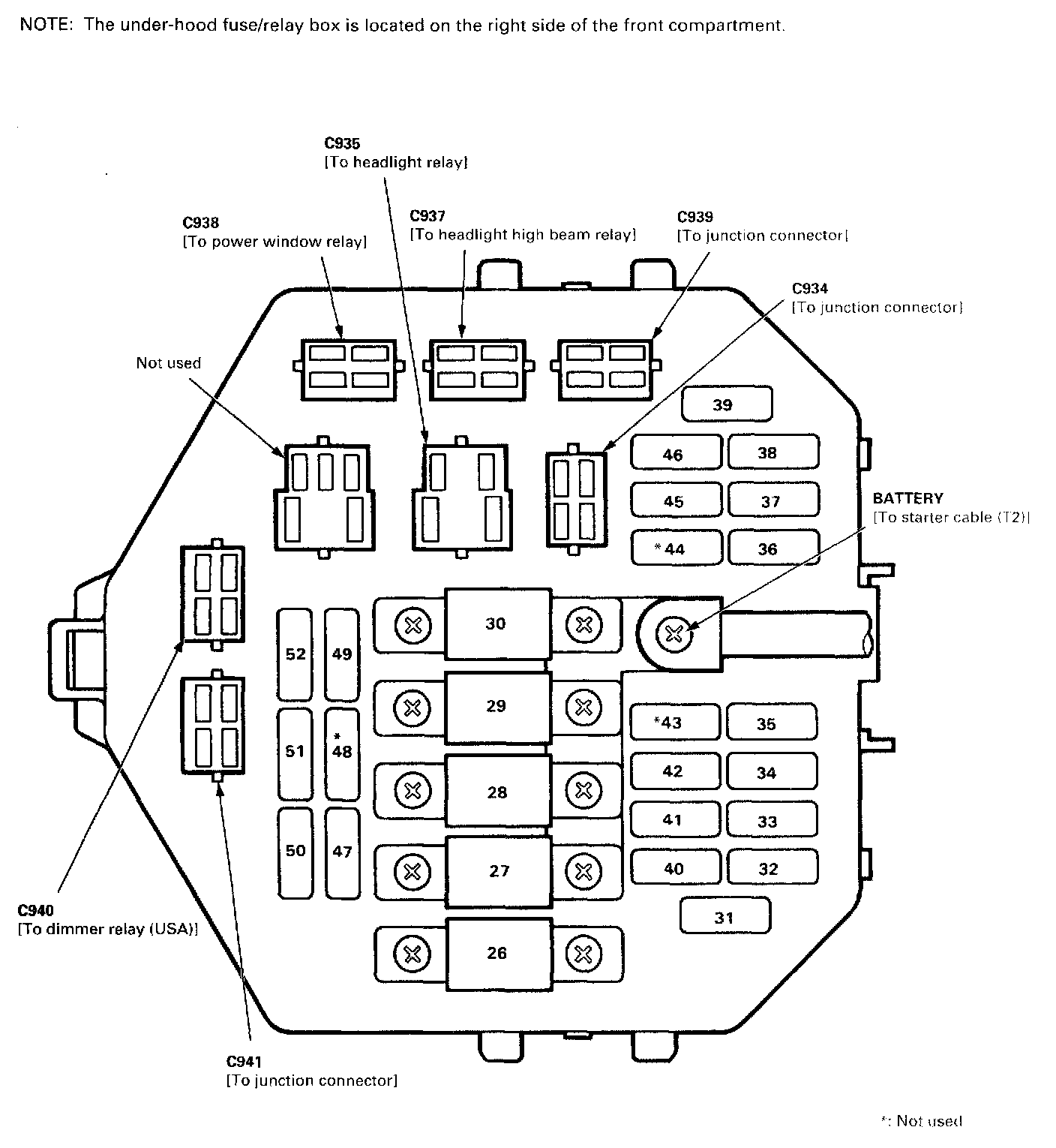

Under-Hood Fuse/Relay Box

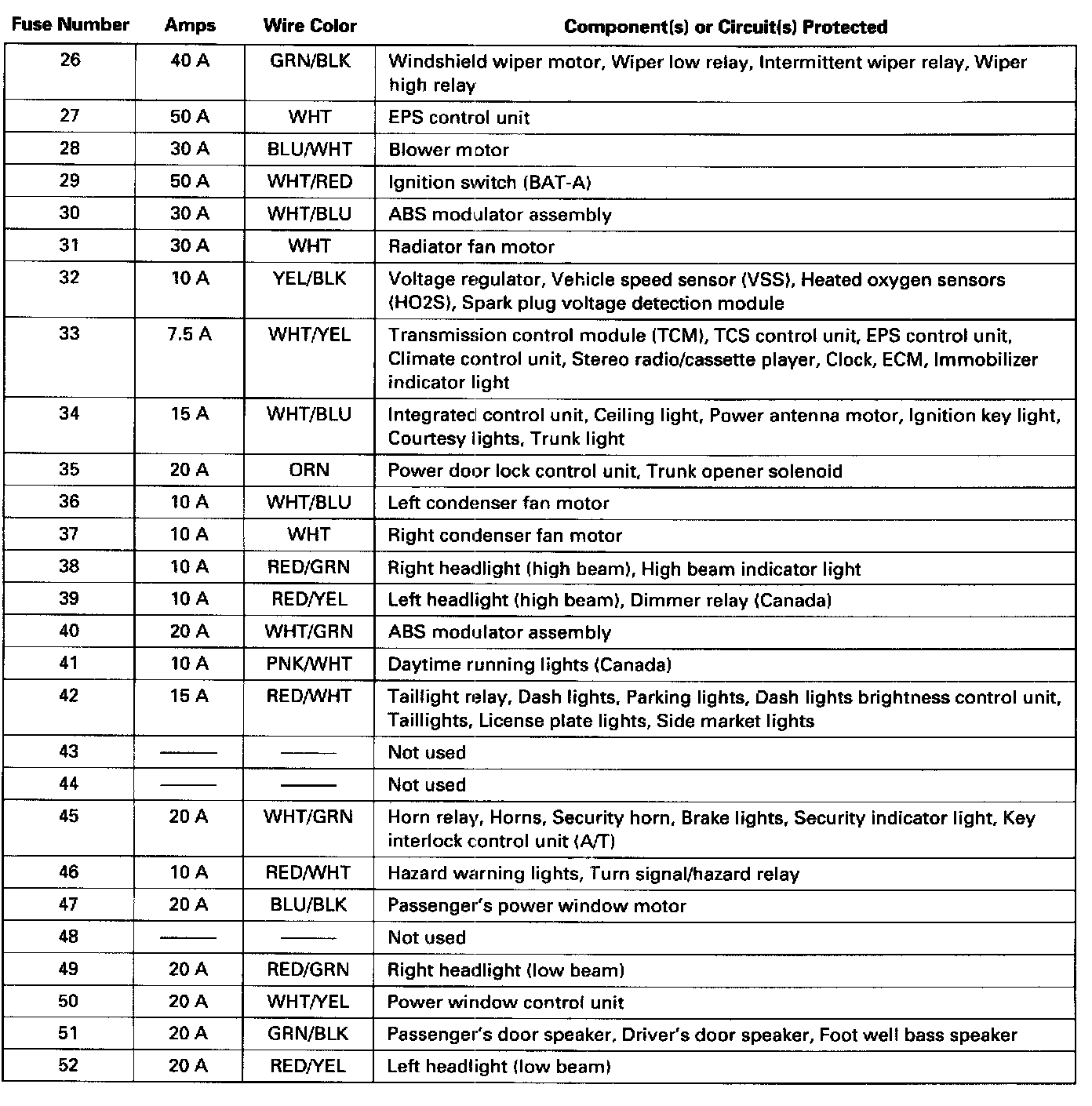

Under-hood Fuse/Relay Box Part 1:
Under-hood Fuse/Relay Box Part 2:

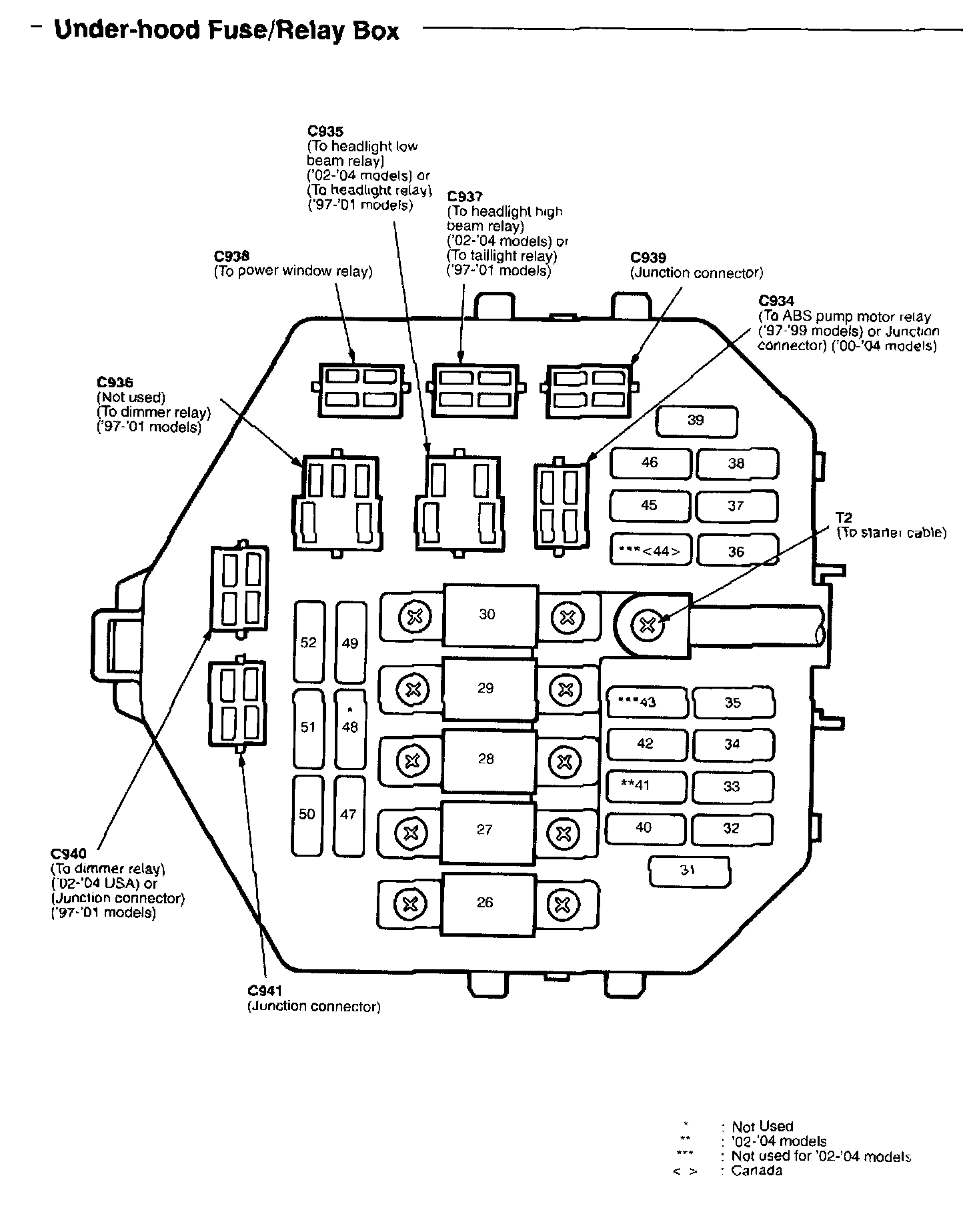

Under-hood Fuse/Relay Box:

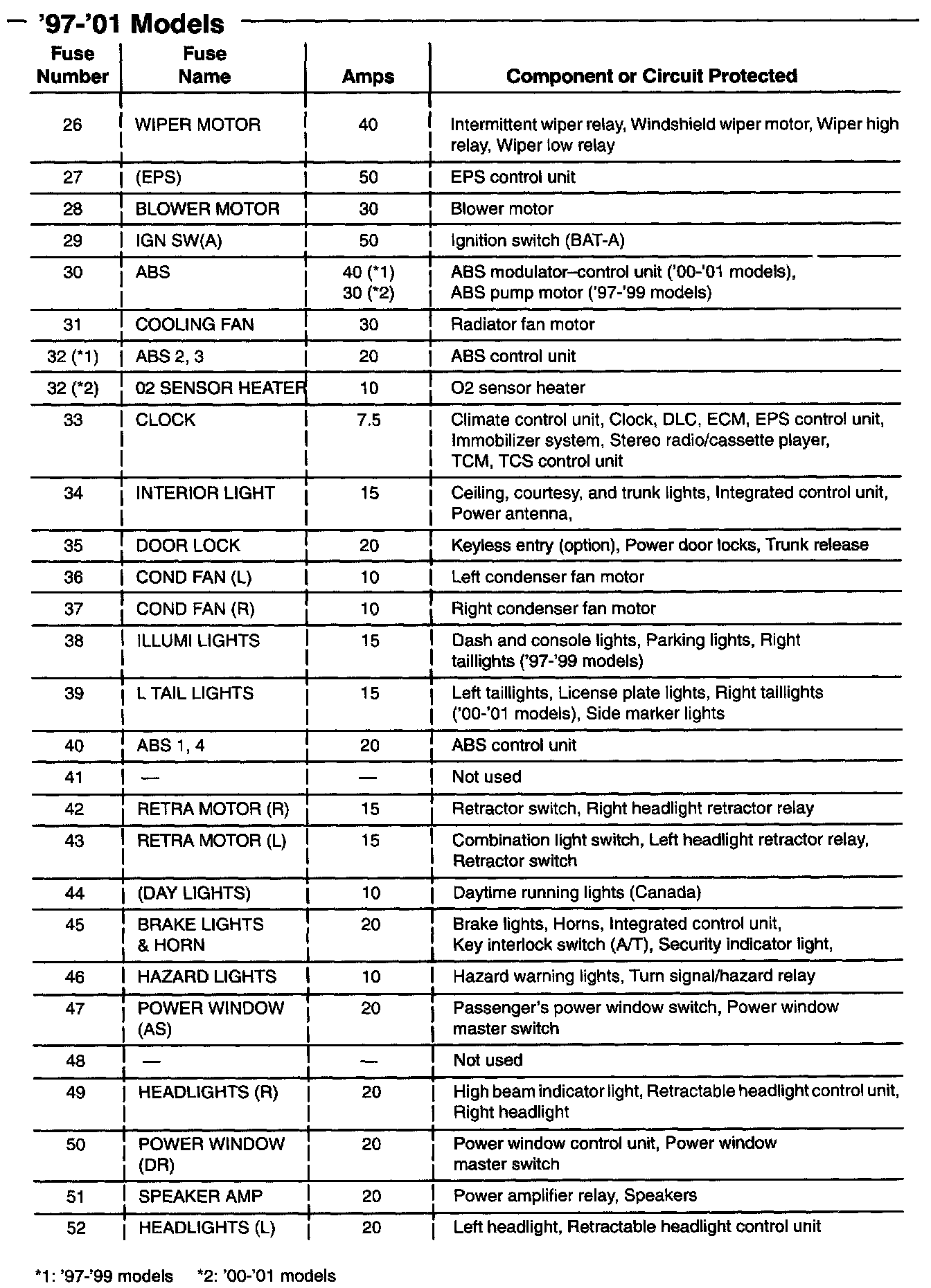

Under-hood Fuse/Relay Box ('97-'01 Models):
