Passenger's Window Switch Replacement
Passenger's Window Switch Replacement
1.
Remove the door panel.

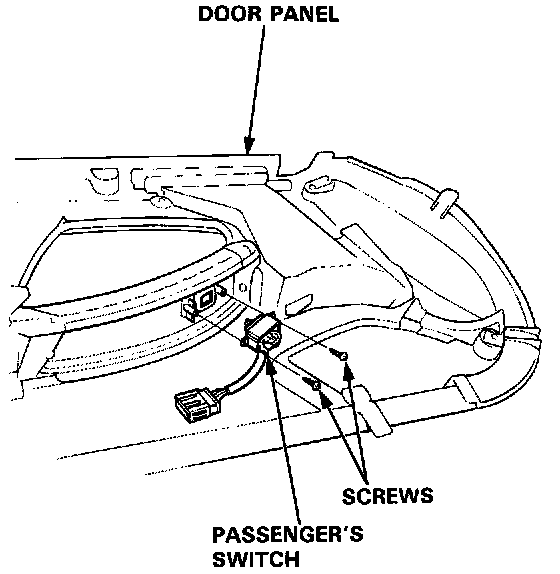

Passenger's Switch Replacement:
2.
Remove the two screws, then remove the passenger's switch from the door panel.
3.
Install in the reverse order of removal.
