Parking Brake Warning Switch: Testing and Inspection

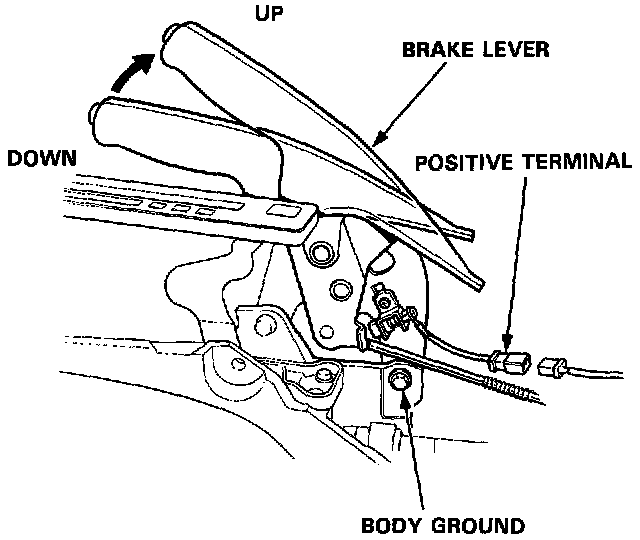

1. Remove the center console, and disconnect the connector from the switch.

Parking Brake Switch Test:

2. Check continuity between the positive terminal and body ground with the brake lever up and down.
- There should be no continuity with the brake lever down.
- There should be continuity with the brake lever up.


NOTE: (Canada) If the parking brake switch is OK, but the brake warning system does not work, make the input test for the daytime running lights control unit.
