Controller Light Bulb Replacement

1. Remove the dash lights brightness controller.

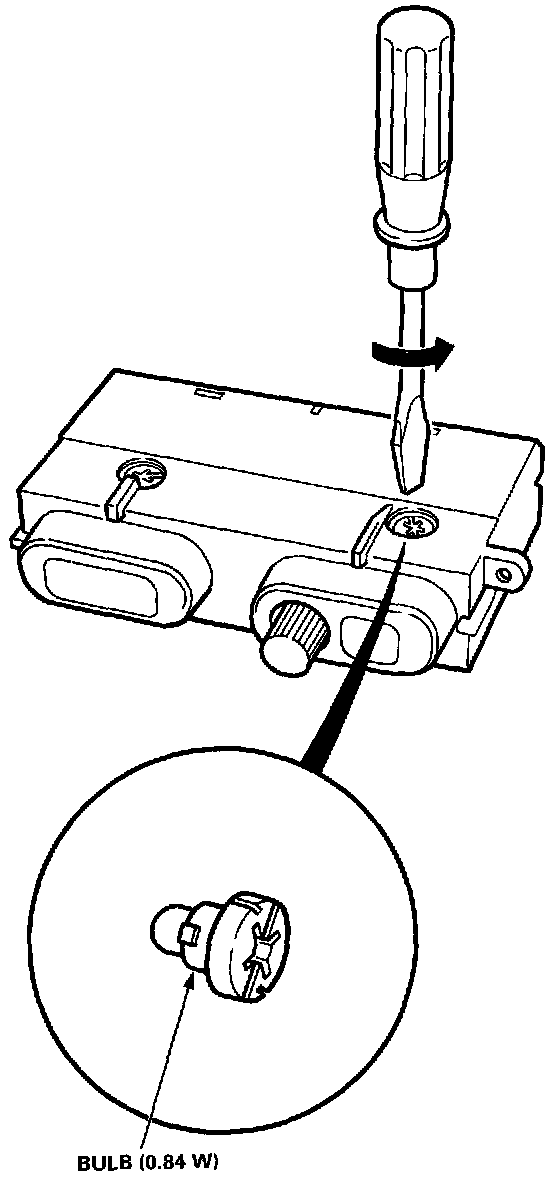

Controller Light Bulb Replacement:




2. Turn the socket 45° counterclockwise to remove it.
