Home >> Acura >> 1999 >> NSX V6-3.0L DOHC (VTEC) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Dimmer Switch >> Diagrams >> Electrical Diagrams

Electrical Diagrams

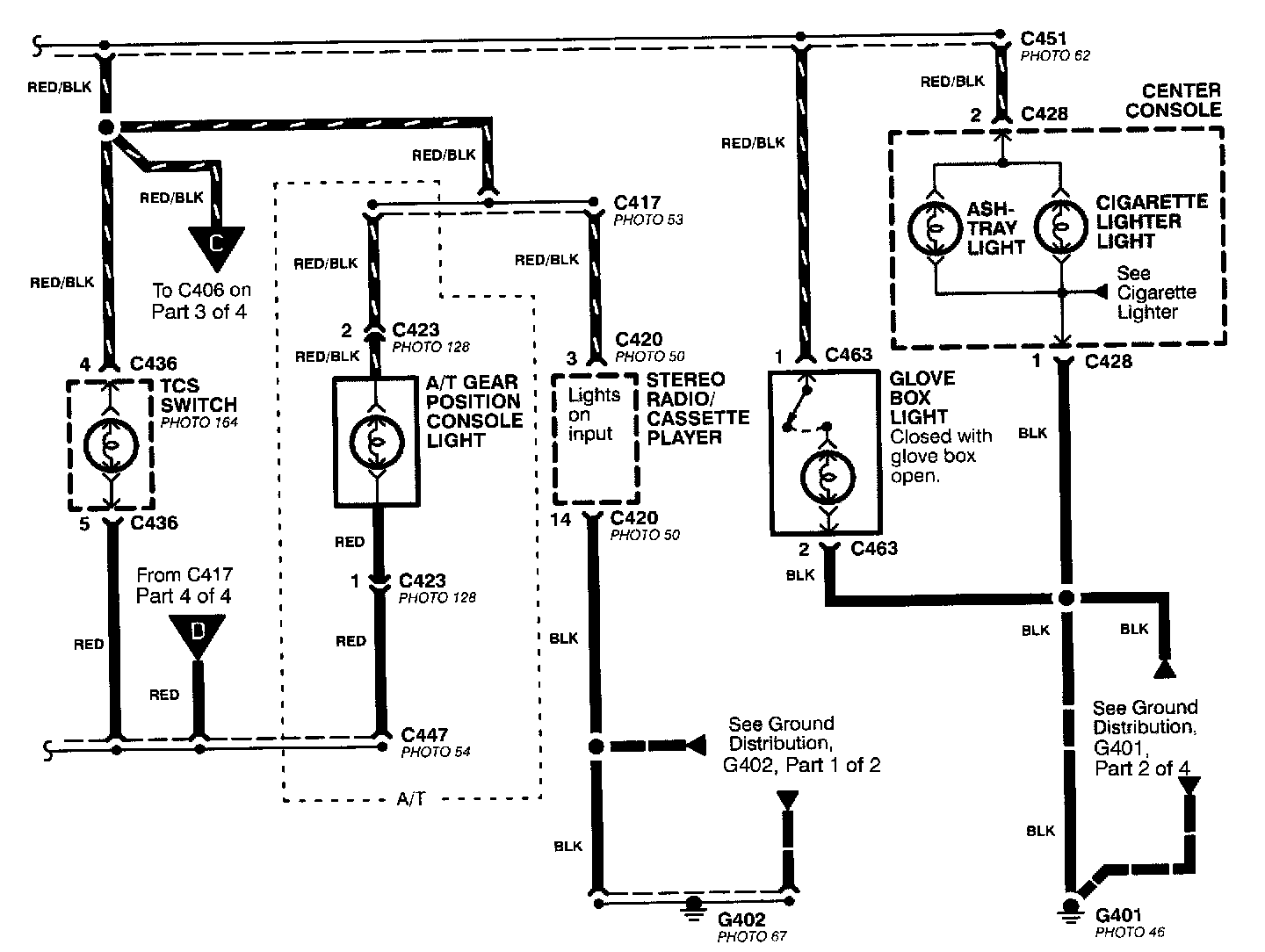

Part 1 of 4:

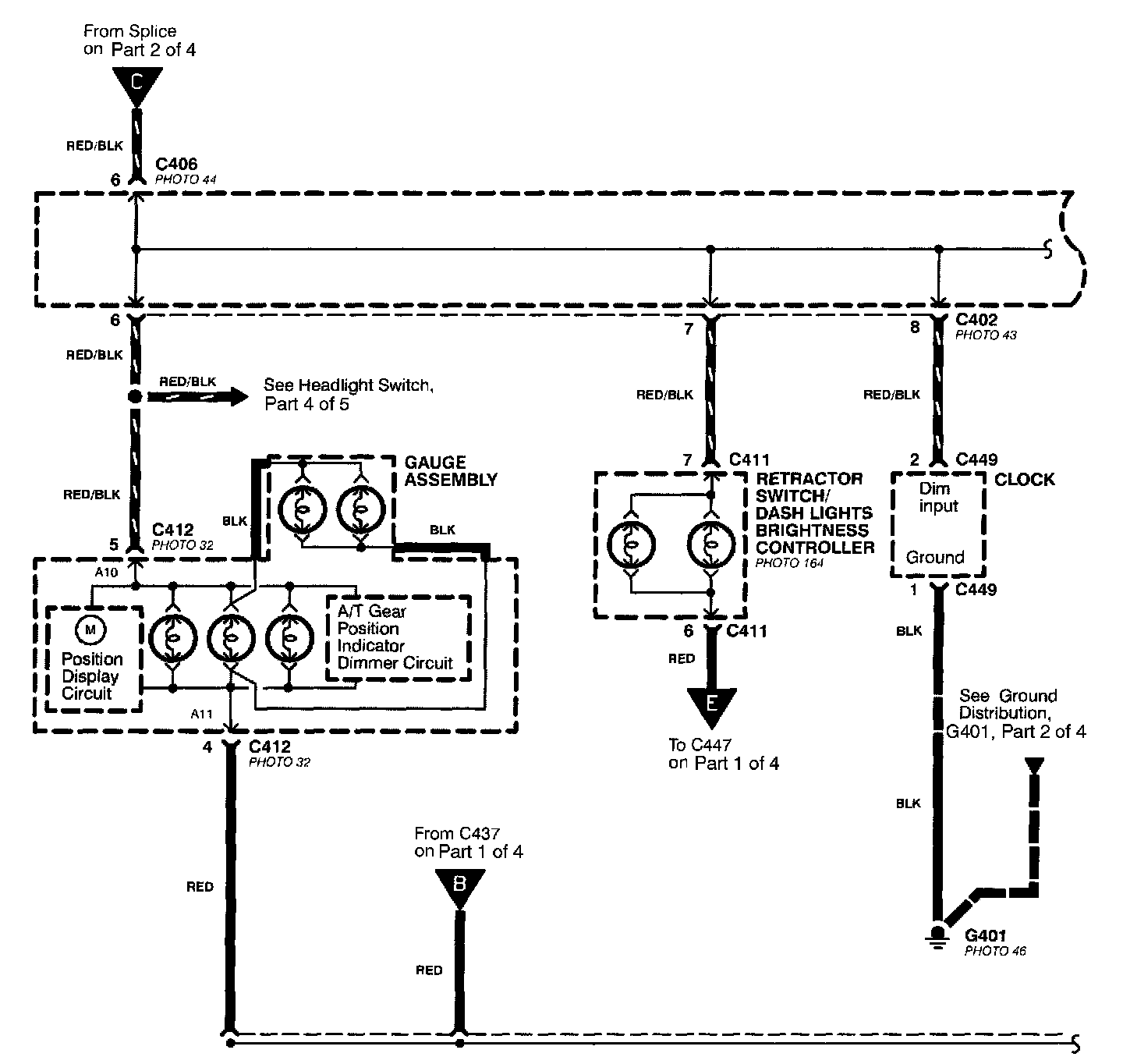

Part 2 of 4:

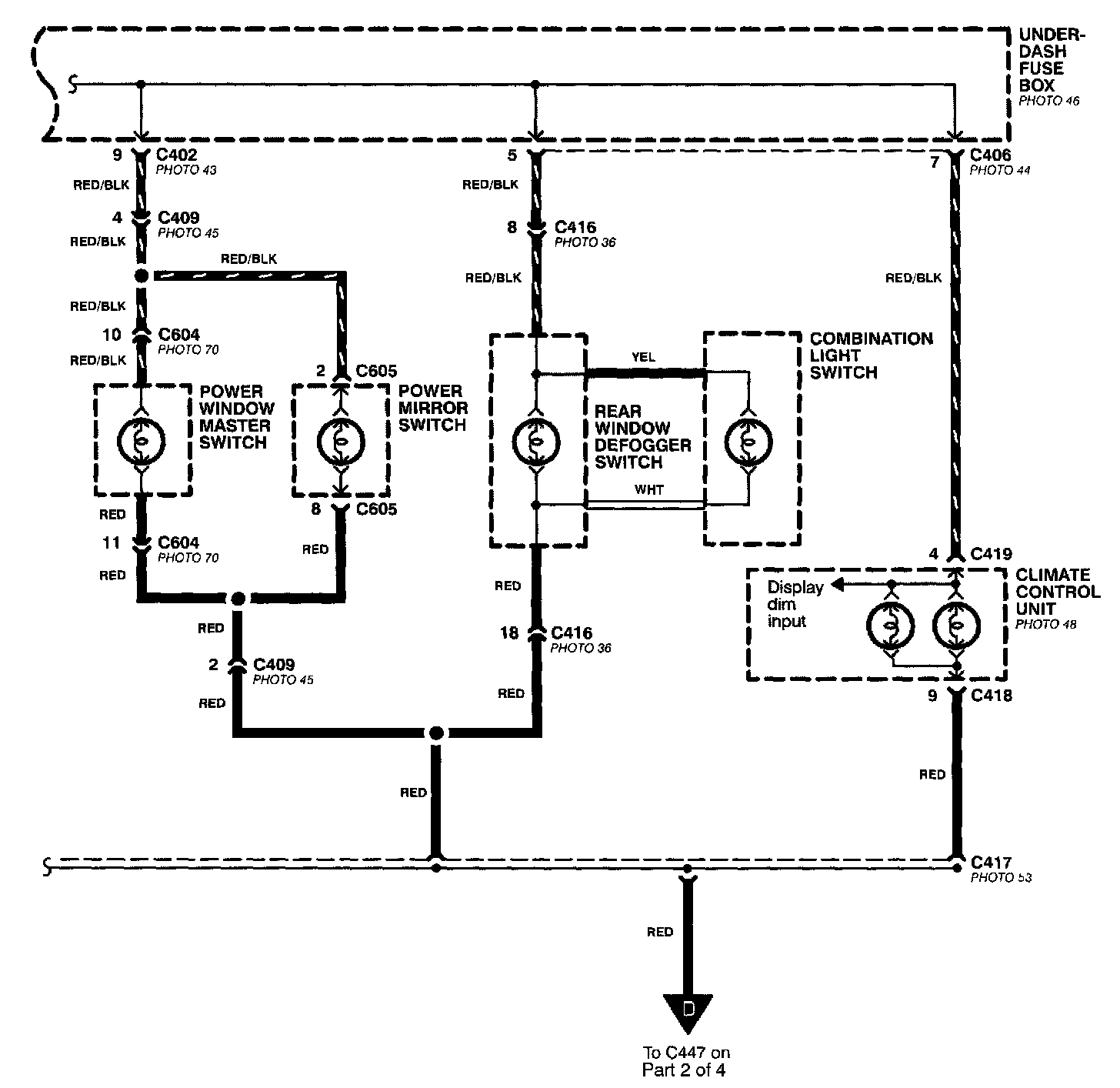

Part 3 of 4:

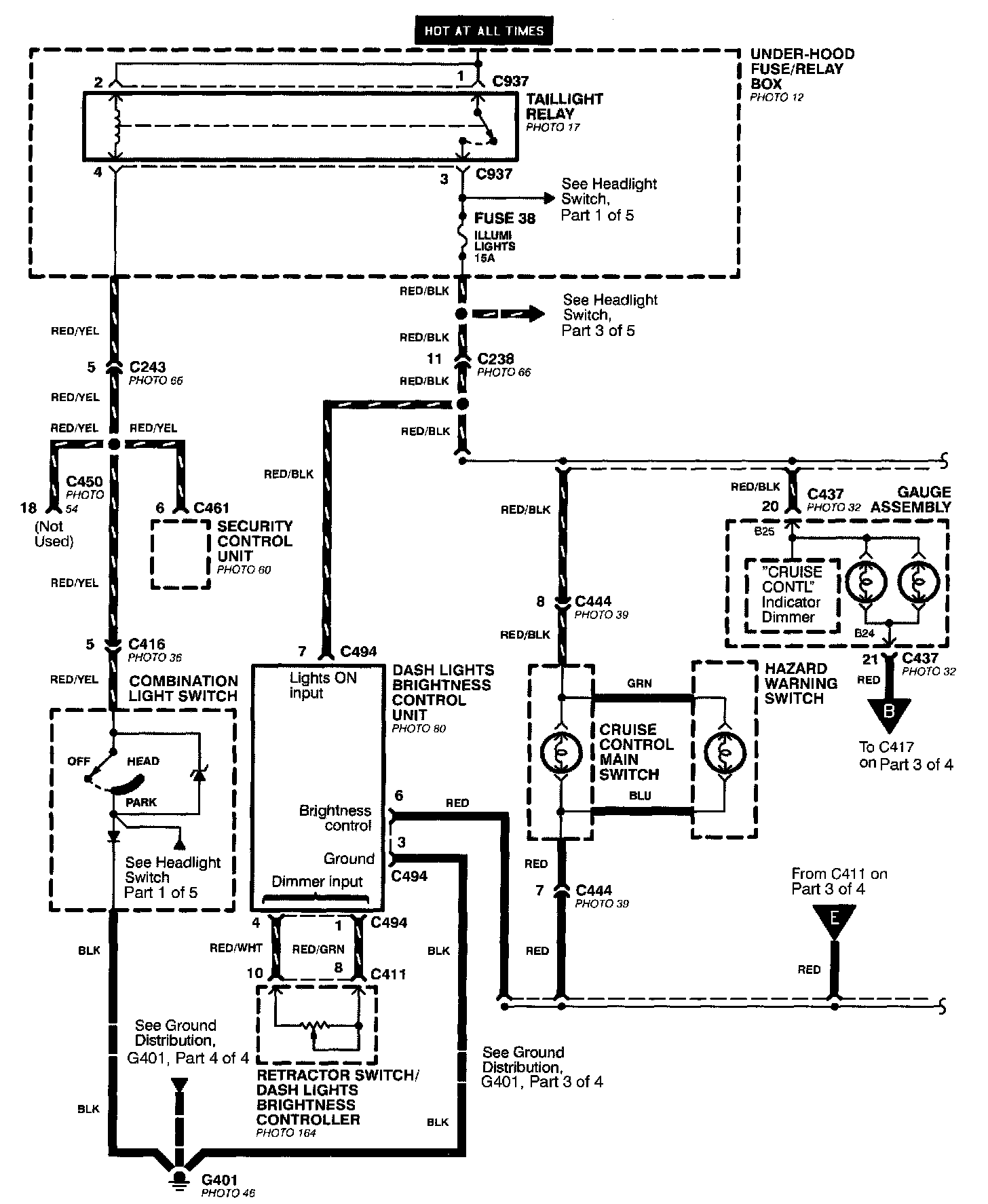

Part 4 of 4:
