Brake Switch (Cruise Control): Testing and Inspection

Brake Switch Test:

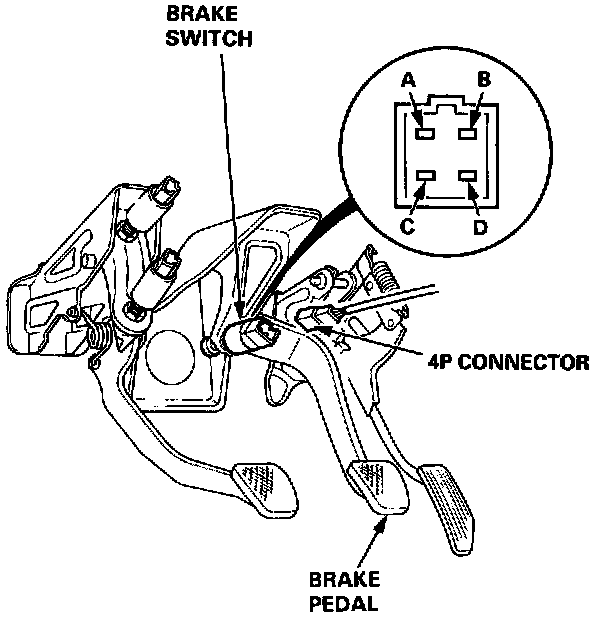

1. Disconnect the 4P connector from the switch.

Brake Switch Test:

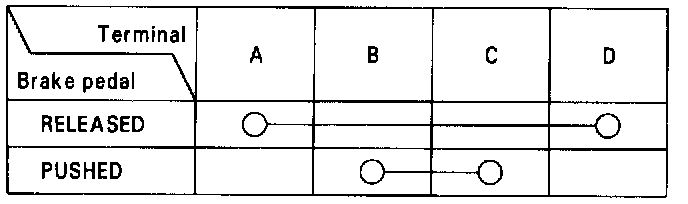

2. Check for continuity between the terminals according to the table.
3. If necessary, replace the switch or adjust pedal height (see Brakes, Anti-lock Brake system).
