Lateral Accelerometer: Service and Repair

CAUTION: Be careful not to drop or bump the Lg sensor, and don't remove or install it with an impact wrench; the Lg sensor may be damaged.

1. Remove the rear center trim panel.

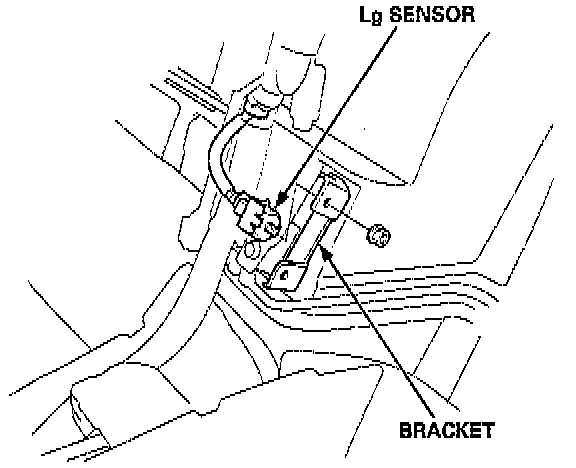

2. Remove the Lg sensor from the bracket.
3. Reverse procedure to install.
