Power Mirror Switch: Testing and Inspection
1.
Remove the
power mirror switch
from the armrest.
2.

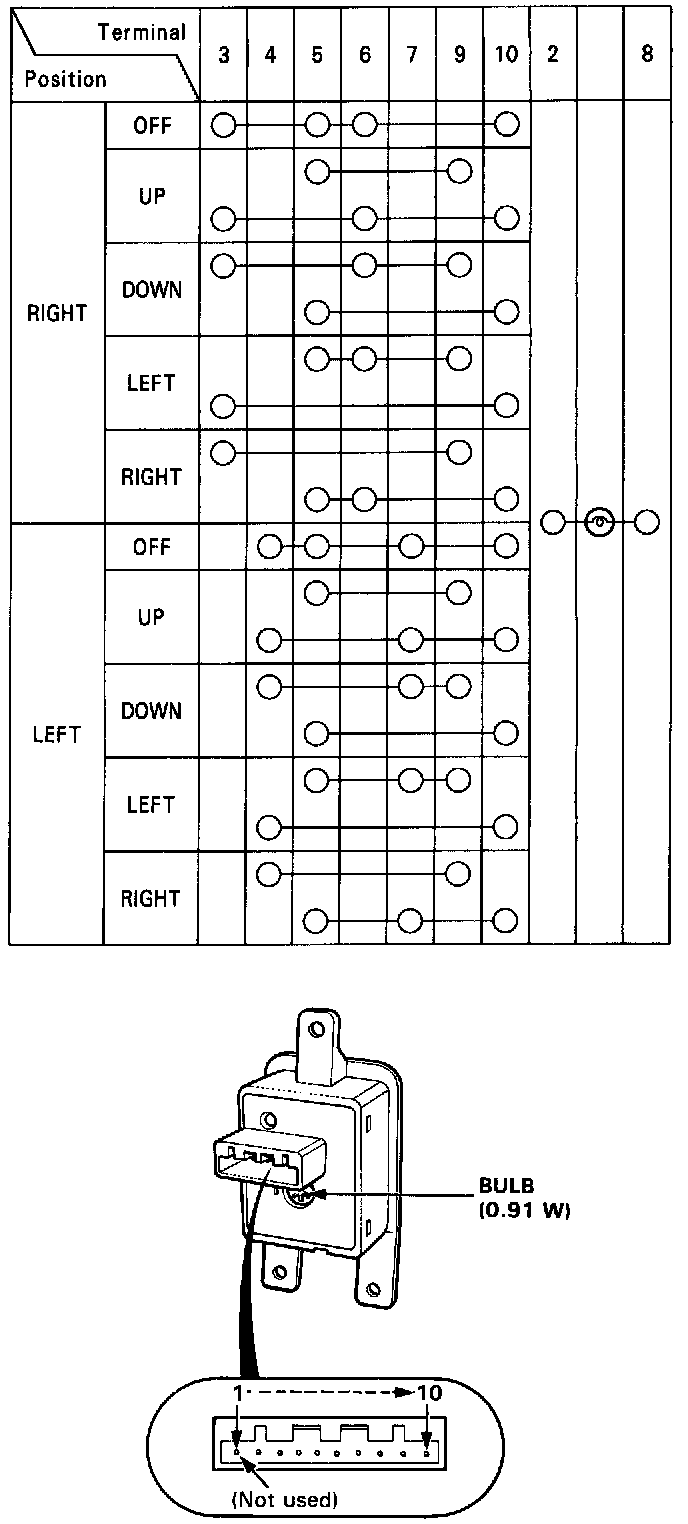

Check for continuity between the terminals in each switch position according to the table.
Switch Test:
Mirror Switch
