Removal

CAUTION
- Do not install used SRS parts from another car: use only new SRS parts.
- Carefully inspect the seat belt tensioner before installing it. Do not install a tensioner that shows signs of being dropped or improperly handled, such as dents, cracks or deformation.
- The shoulder harness anchor bolt must be removed before you remove the tensioner.
- After completing repair work, be sure to remove SRS Service Connector.

1. Before disconnecting any part of the SRS wire harness, install the short connectors (RED).

Seat Belt Tensioner Removal:

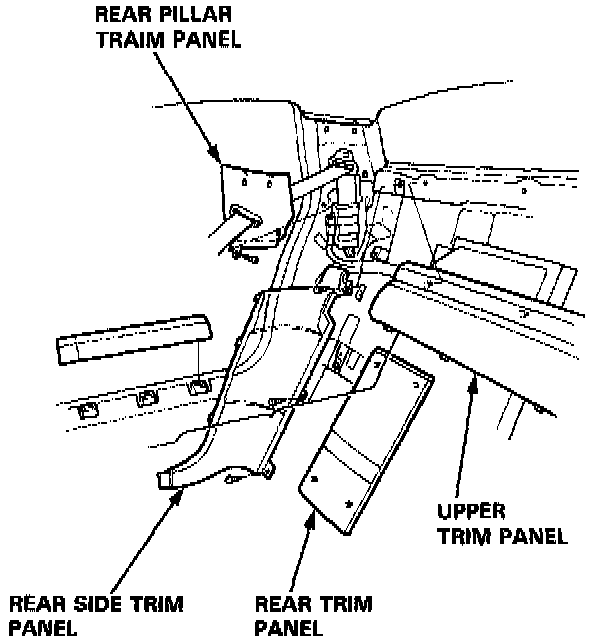

2. Remove the rear trim panel, upper trim panel, rear side trim panel, and rear pillar trim panel.

Seat Belt Tensioner Removal:

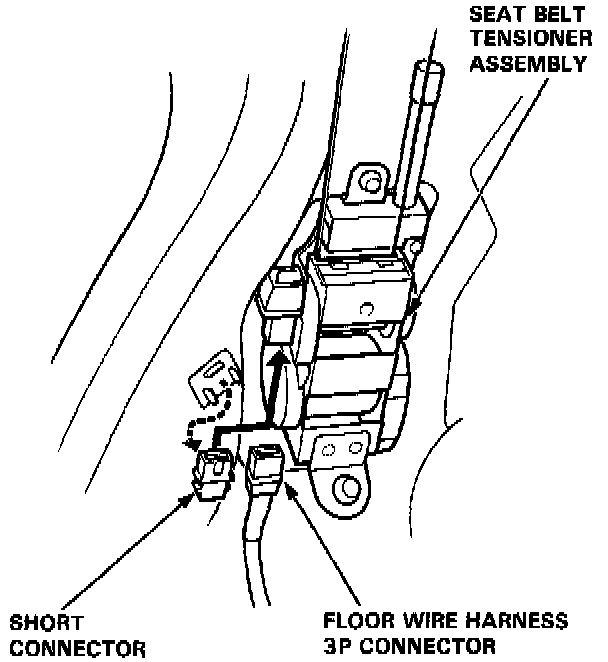

3. Disconnect the 3P connector from the seat belt tensioner, then install the short connectors (RED) on the seat belt tensioners.

Seat Belt Tensioner Removal:

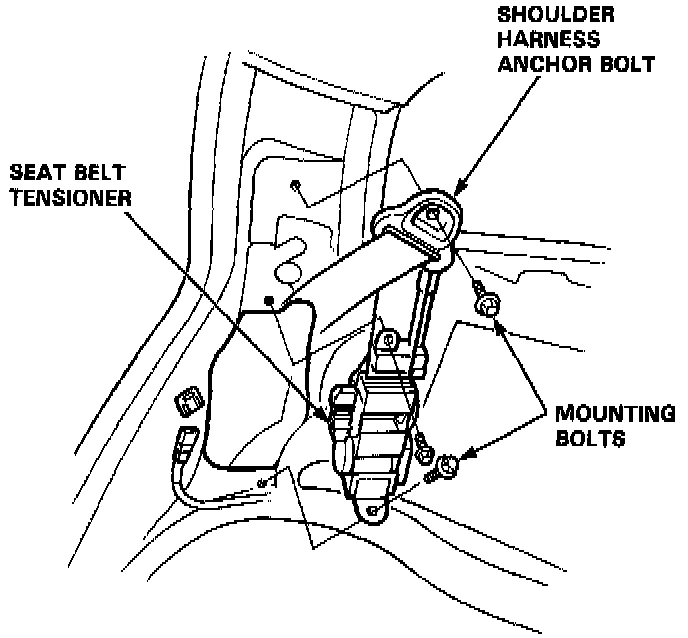

4. Remove the shoulder harness anchor bolt, then remove the two seat belt tensioner mounting bolts and tensioner.
