Removal

WARNING: Store a removed airbag assembly with the pad surface up. If the airbag is improperly stored face down, accidental deployment could propel the unit with enough force to cause serious injury.

CAUTION
- Carefully inspect the airbag assembly before installing it. Do not install an airbag assembly that shows signs of being dropped or improperly handled, such as dents, cracks or deformation.
- Always keep the short connectors (RED) on the air- bags when the harness is disconnected.
- Do not disassemble or tamper with the airbag assembly.

1. Disconnect the battery negative cable and then the positive cable.
2. Before disconnecting any part of the SRS wire harness, install the short connectors (RED).
3. Make sure the wheels are aligned straight ahead.

Cable Reel Removal:

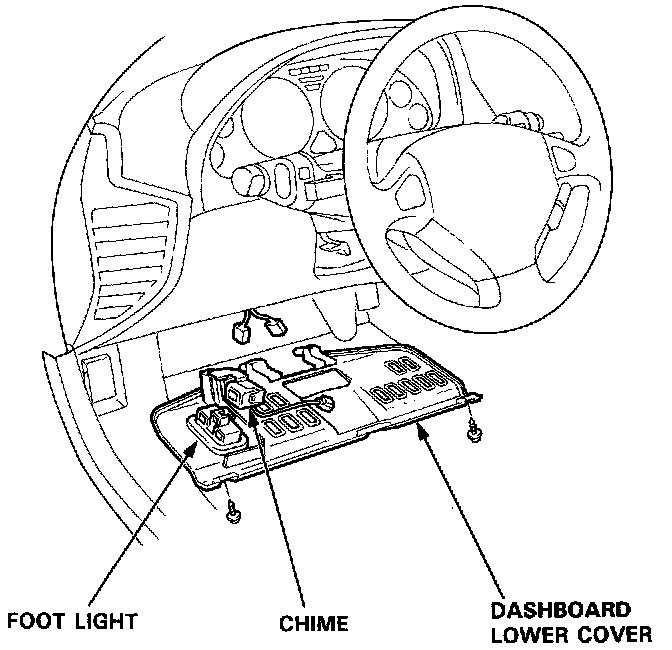

4. Remove the dashboard lower cover, then disconnect the foot light connector and lights-on chime connector from the dashboard lower cover.

Cable Reel Removal:

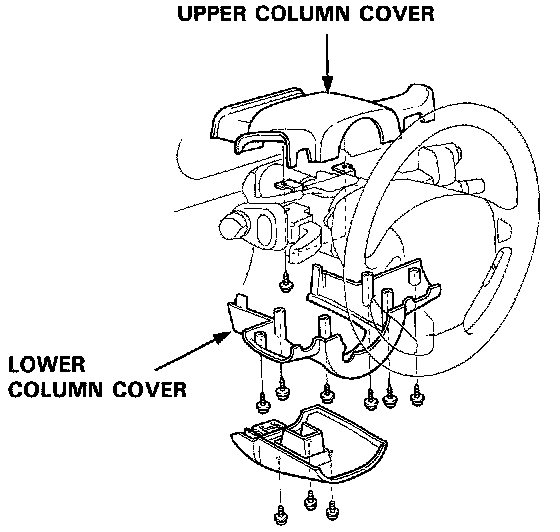

5. Remove the column covers.
6. Disconnect the connector between the cable reel and SRS main harness.

Cable Reel Removal:

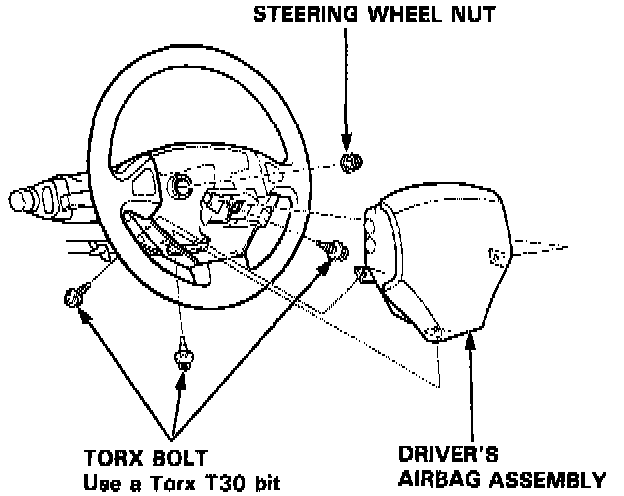

7. Remove the driver's airbag assembly from the steering wheel, then remove the steering wheel nut.

Cable Reel Removal:

8. Disconnect the connectors from the horn and cruise control set/resume switches, then remove the cable reel 3P connector from its clips.
9. Remove the steering wheel from the column.

Cable Reel Removal:

10. Remove the cable reel and cancel sleeve.
