Removal

Driver's Airbag


REMOVAL

WARNING: Store a removed airbag assembly with the pad surface up; if the airbag is improperly stored face down, accidental deployment could propel the unit with enough force to cause serious injury.

CAUTION
- Do not install used SRS parts from another car. When repairing, use only new SRS parts.
- Carefully inspect the airbag assembly before you install it. Do not install an airbag assembly that shows signs of being dropped or improperly handled, such as dents, cracks or deformation.
- Do not disassemble or tamper with the airbag assembly.

1. Before disconnecting any parts of the SRS wire harness, install the short connectors (RED).

Driver's Airbag:

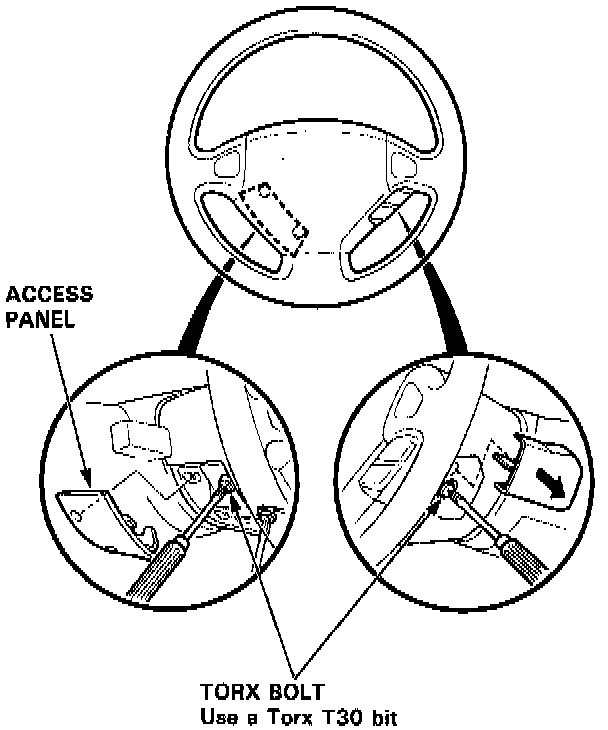

2. Remove the two Torx bolts using a Torx T30 bit, then remove the driver's airbag assembly.
