Installation

INSTALLATION

CAUTION
- Be sure to install the SRS wiring so that it is not pinched or interfering with other car parts.
- Be sure the battery cables are disconnected.
- After completing repair work, be sure to remove the short connectors (RED) and reconnect all the connectors.

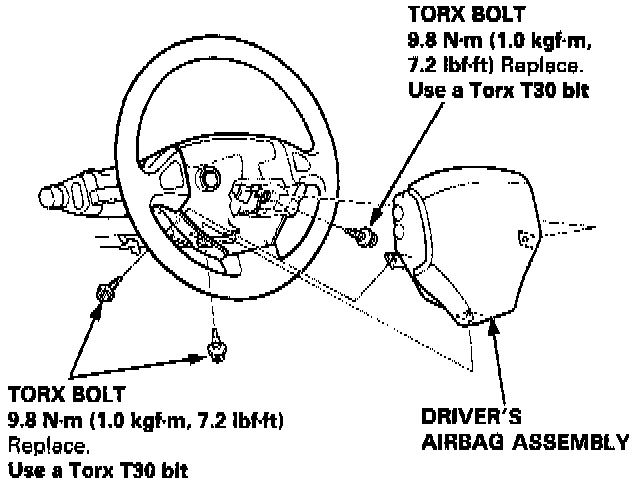

Driver's Airbag:

1. Place the driver's airbag assembly in the steering wheel, and secure it with new Torx bolts.

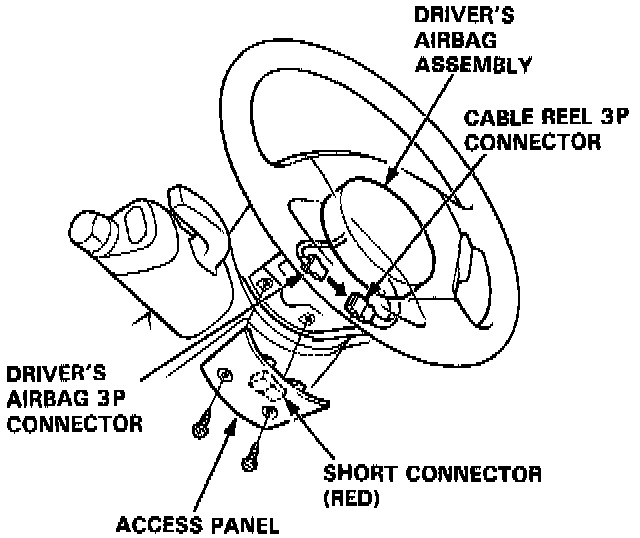

Driver's Airbag:

2. Reconnect the driver's airbag 3P connector to the cable reel 3P connector. Attach the short connector to the access panel, then reinstall the panel on the steering wheel.
3. Remove the short connectors from the seat belt tensioners, then attach them to their holders.

Airbag Assembly Installation:

4. Reconnect the floor wire harness 3P connector to the seat belt tensioner.
5. Reinstall the rear side trim panel.
6. Reconnect the battery positive cable, then the negative cable.
7. After installing the airbag assembly, confirm proper system operation:
- Turn the ignition switch ON (II); the instrument panel SRS indicator light should come on for about six seconds and then go off.
- Confirm operation of horn buttons.
- Confirm operation of cruise control set/resume switch.
