Headlamp Motor Relay: Locations

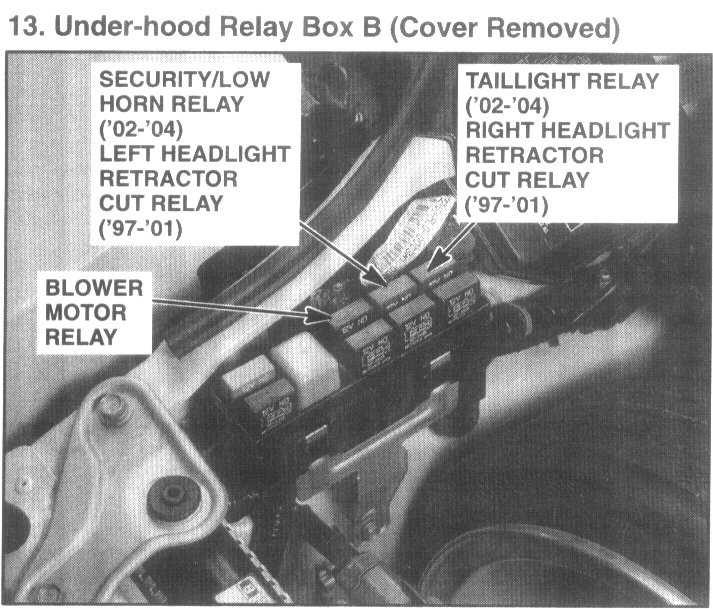

13. Under-hood Relay Box B (Cover Removed):

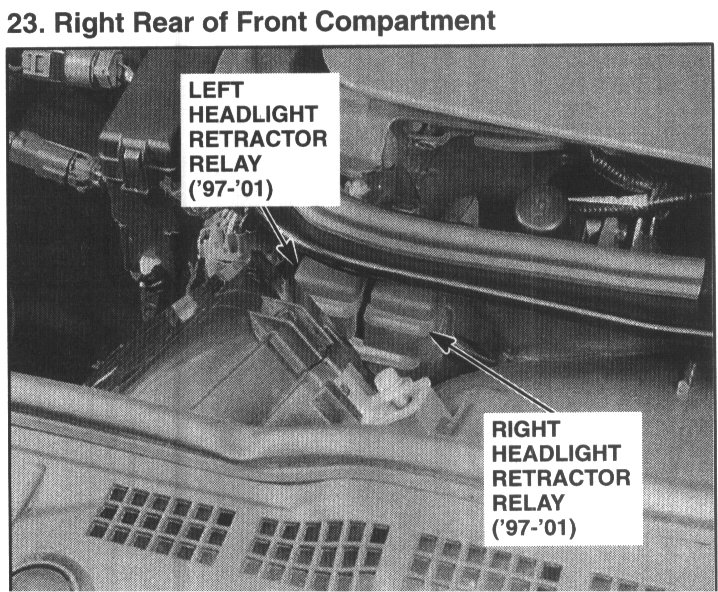

23. Right Rear of Front Compartment:
