Home >> Acura >> 1999 >> NSX V6-3.0L DOHC (VTEC) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> ABS Light Relay >> Locations

ABS Light Relay: Locations

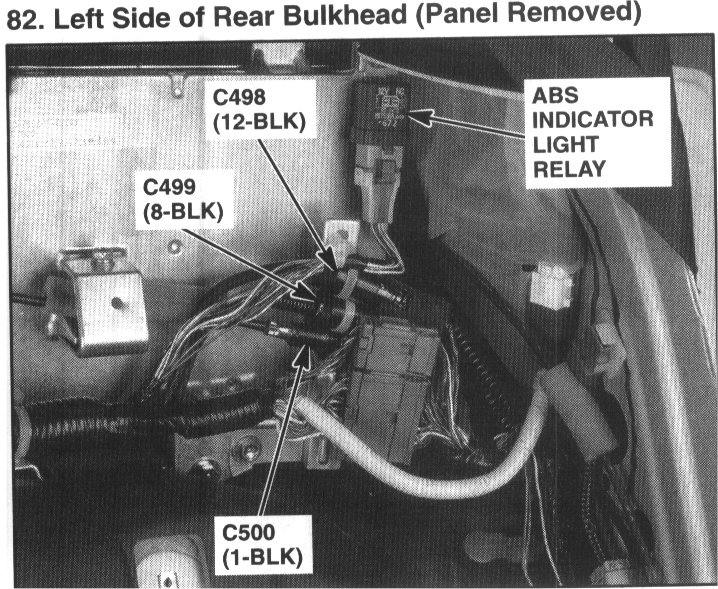

82. Left Side of Rear Bulkhead (Panel Removed):
