Symptom Related Diagnostic Procedures

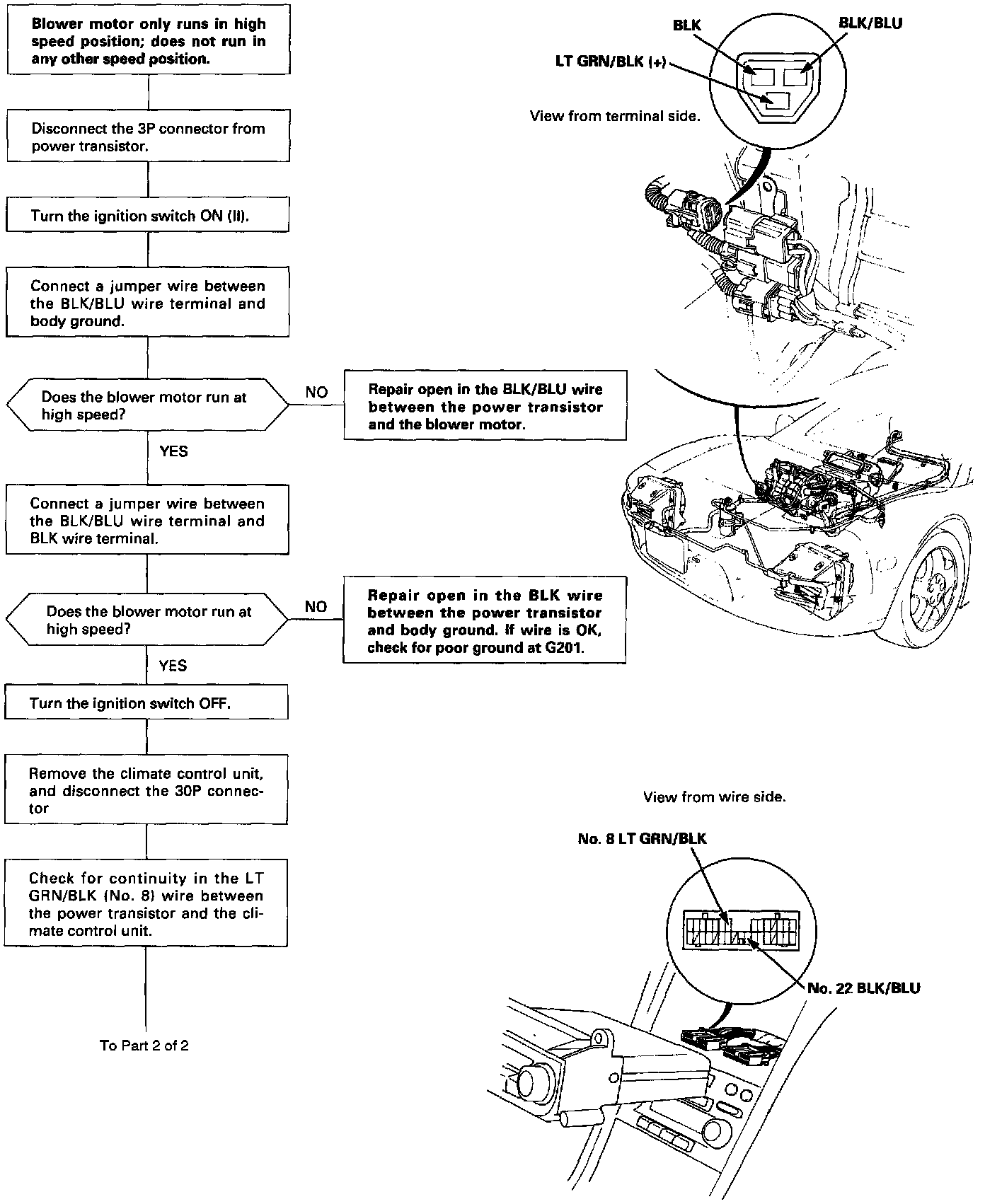

Flowchart-Blower Motor Speed (Part 1 Of 2):



Flowchart-Blower Motor Speed (Part 2 Of 2):
