Control Module HVAC: Service and Repair
Climate Control Unit Removal and InstallationSRS components are located in this area. Review the SRS component locations, precautions, and procedures before performing repairs or service.
1. Remove the clock.
Climate Control Unit-Replacement:

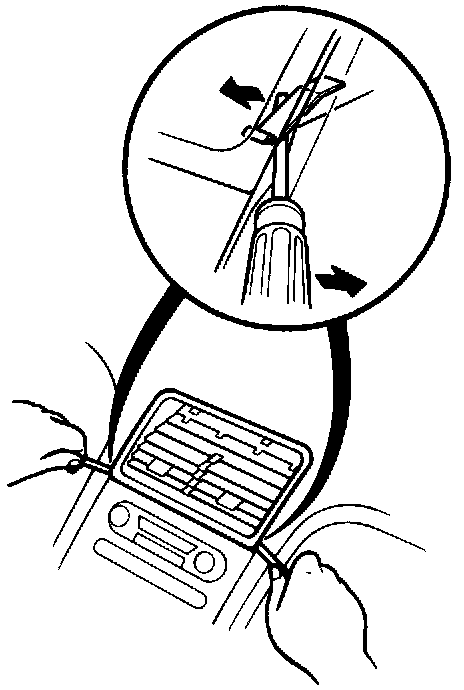

2. Remove the two screws behind the clock, then remove the center air vent.
Climate Control Unit-Replacement:

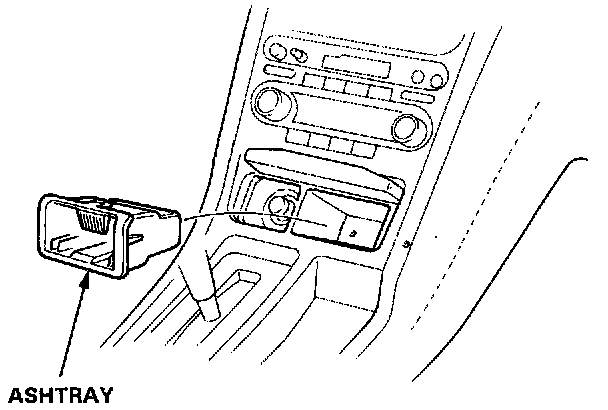

3. Take out the ashtray and remove the two screws from under the ashtray.
Climate Control Unit-Replacement:
4. Remove the four screws, then remove the center armrest.
Climate Control Unit-Replacement:

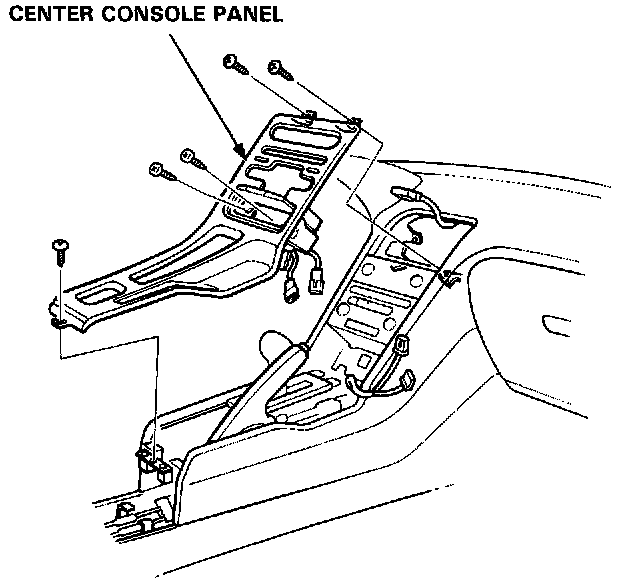

5. Remove the three screws and center console panel, then disconnect the 3P connector and 4P connector from the floor wire harness.
Climate Control Unit-Replacement:

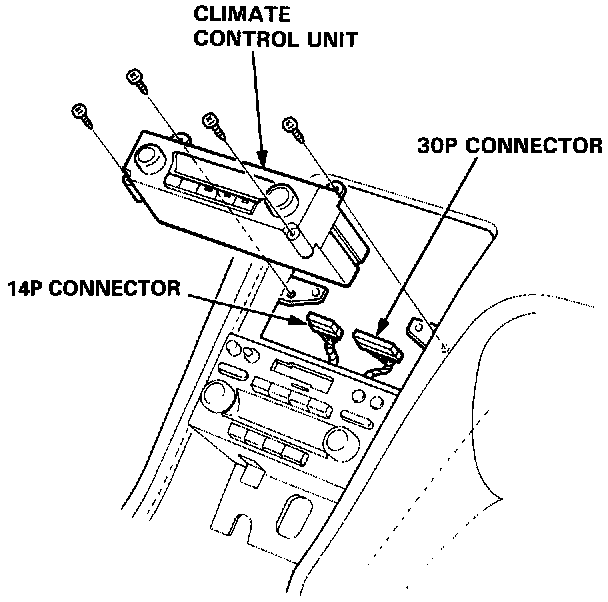

6. Remove the four screws, then disconnect the 14P and 30P connectors from the automatic climate control unit and remove it.
7. Install in the reverse order removal.
