Compressor Clutch Relay: Testing and Inspection

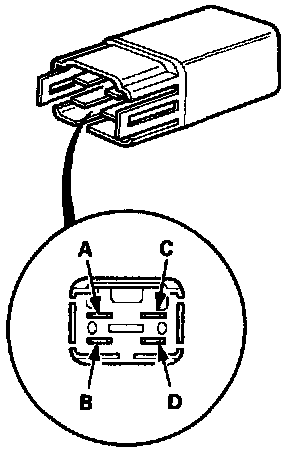

There should be continuity between the C and D terminals.

There should be continuity between the A and B terminals when power and ground are connected to the C and D terminals.

There should be no continuity when power is disconnected.

Compressor Clutch relay/Blower Motor Relay/Blower Motor High Relay:

- [1][2]Compressor clutch relay
