Gear Lockout Solenoid: Testing and Inspection

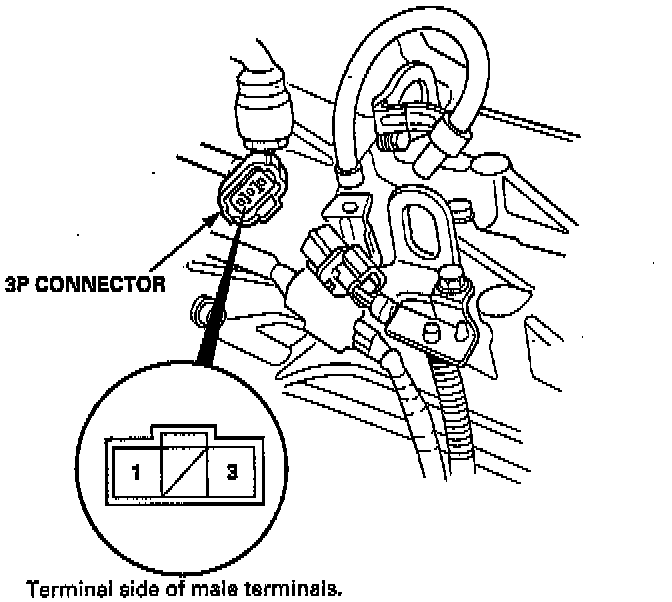

SOLENOID TEST1. Disconnect the 3P connector of the reverse lockout solenoid.
2. Measure the resistance between No. 1 and No. 3 terminals.
Standard: 10.74 - 11.86
If the resistance is not within the standard, replace the reverse lockout solenoid.
3. Test reverse lockout solenoid operation by connector battery power to the No. 1 terminal and ground to the No. 3 terminal. A clicking sound should be heard.
4. If the reverse lockout solenoid no clicking sound is heard, replace it.
