Gear Lockout Solenoid: Service and Repair

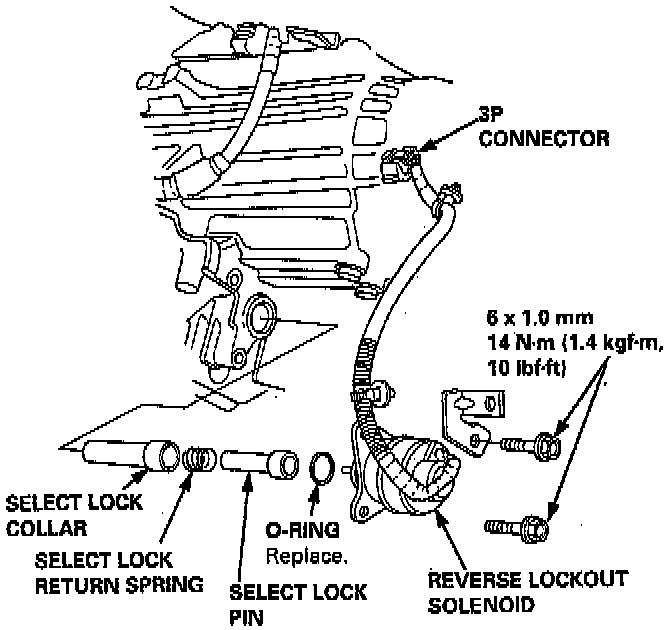

SOLENOID REPLACEMENT





1. Disconnect the 3P connector.
2. Remove the reverse lockout solenoid from the transmission.
3. Remove the select lock pin and select lock return spring.
4. Install the reverse lockout solenoid in the reverse order of removal.
