Torque Converter Clutch Solenoid: Service and Repair

NOTE: Lock-up control solenoid valves A and B must be removed/replaced as an assembly.

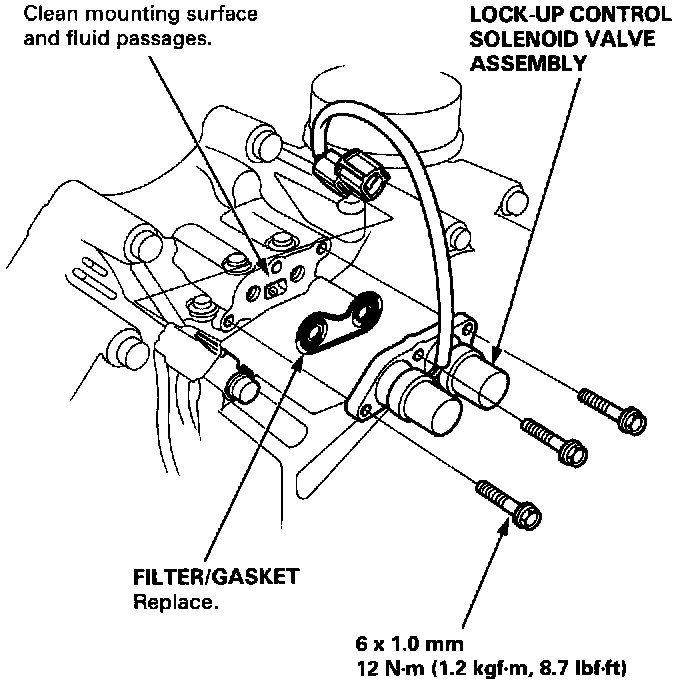

1. Remove the mounting bolts and lock-up control solenoid valve assembly.
2. Clean the mounting surface and fluid passages of the lock-up control solenoid valve assembly, then install a new lock-up control solenoid valve assembly with a new filter/gasket.
3. Check the connector for rust, dirt or oil and reconnect it securely.
