Shift Solenoid: Service and Repair

NOTE: Shift control solenoid valves A and B must be removed/replaced as an assembly.

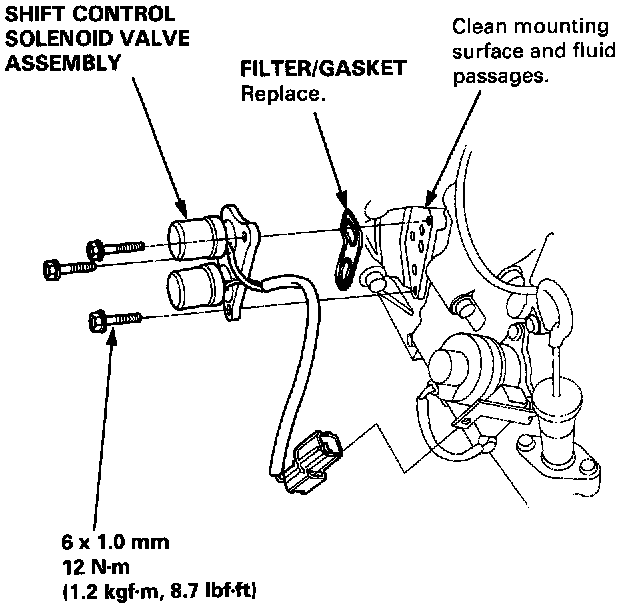

1. Remove the mounting bolts and shift control solenoid valve assembly.




2. Check the shift control solenoid valve fluid passages for dust or dirt. If necessary replace it as an assembly.
3. Clean the mounting surface and fluid passages of the shift control solenoid valve assembly, then install a new shift control solenoid valve assembly with a new filter/gasket.
4. Check the connector for rust, dint or oil, then reconnect it securely.
