Shift Interlock Solenoid: Testing and Inspection

Key Interlock Solenoid Test:

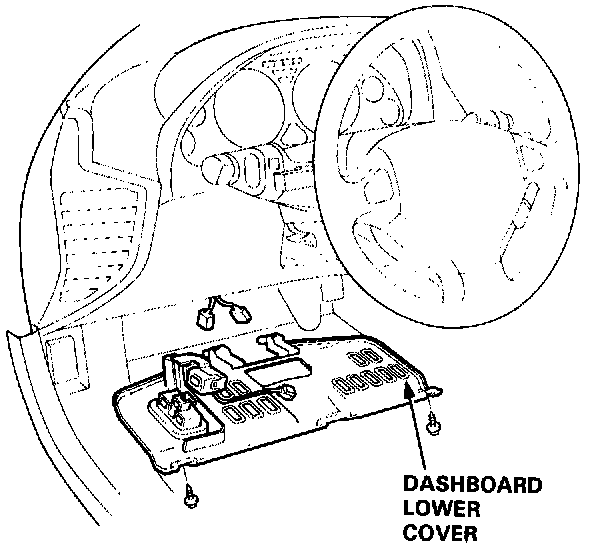

1. Remove the dashboard lower cover, and disconnect the floor wire harness connectors.

Key Interlock Solenoid Test:

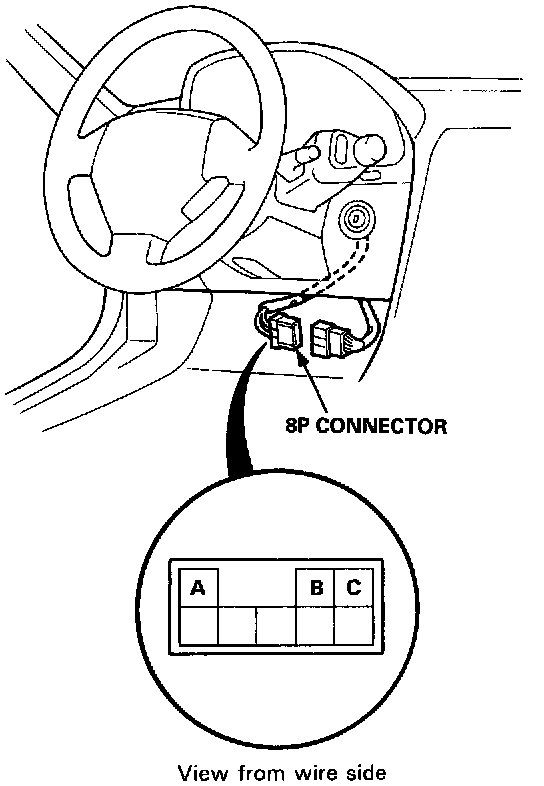

2. Disconnect the 8P connector from the floor wire harness.

Key Interlock Solenoid Test:

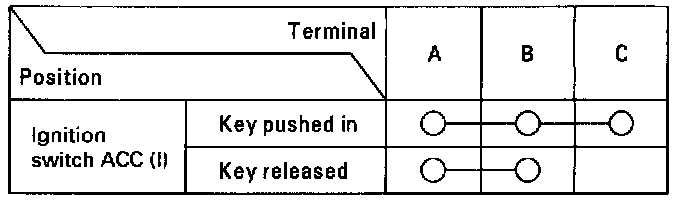

3. Check for continuity between the terminals in each switch position according to the table.
4. Check that the key cannot be removed with power and ground connected to the C and B terminals.
- If the key cannot be removed, the key interlock solenoid is OK.
- If the key can be removed, replace the steering lock assembly (key interlock solenoid is not available separately).
