Home >> Acura >> 1999 >> NSX V6-3.0L DOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Ignition System >> Ignition Control Module >> Locations

Ignition Control Module: Locations

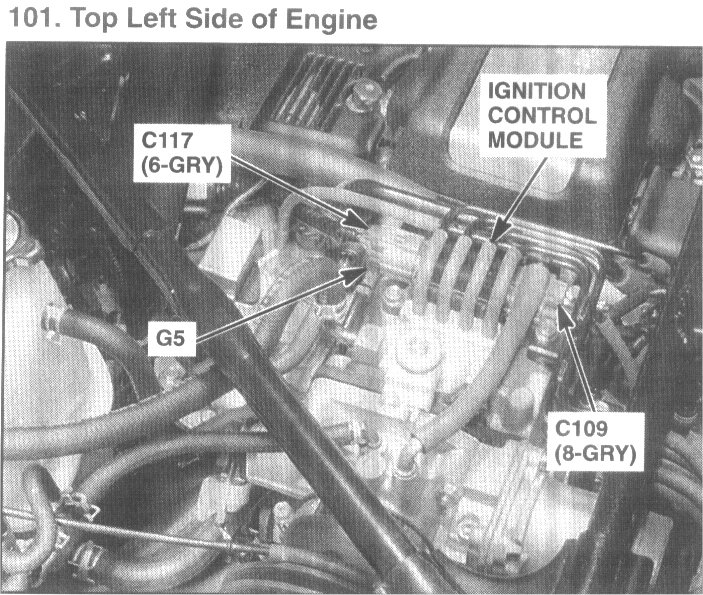

101. Top Left Side of Engine:
