Throttle Cable/Linkage: Adjustments

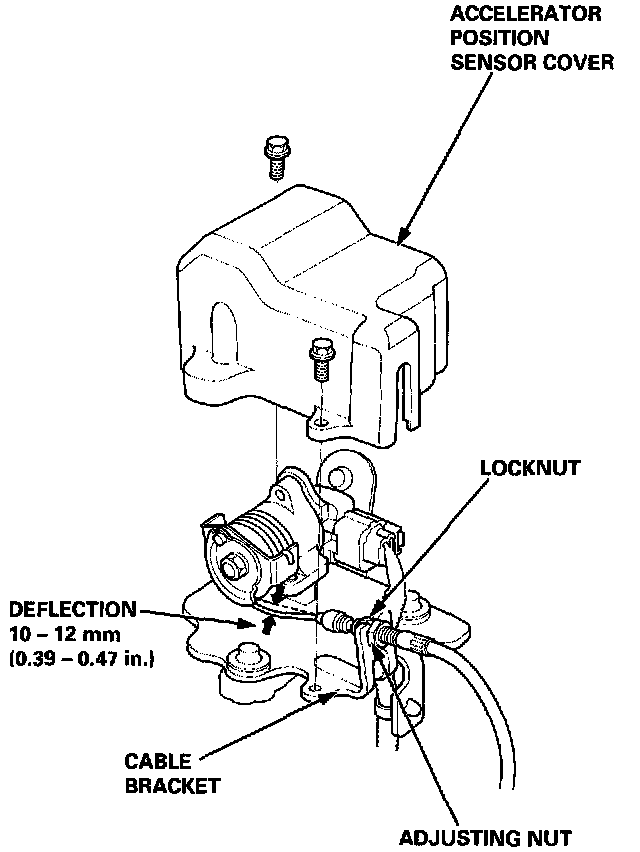

1. Remove the accelerator position sensor cover.
2. Check that the throttle cable operates smoothly with no binding or sticking. Repair as necessary.




3. Check cable free play at the throttle linkage. Cable deflection should be 10 - 12 mm (0.39 - 0.47 in.).
4. If deflection is not within specs, loosen the locknut, turn the adjusting nut until the deflection is as specified then retighten the locknut.
