Fuel Injector Resistor: Testing and Inspection

1. Disconnect the fuel injector resistor connector.

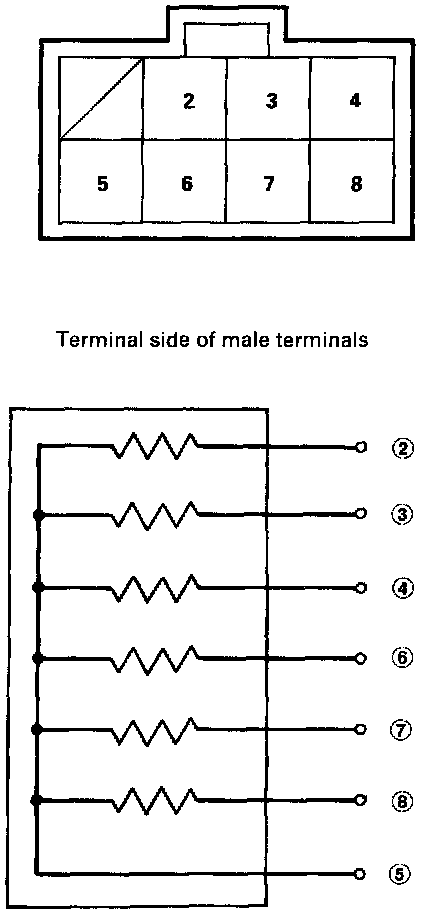

2. Check for resistance between each of the fuel injector resistor terminals (2, 3, 4, 6, 7 and 8) and the power terminal (5).

Resistance should be: 5 - 7 ohms.

Replace the fuel injector resistor with a new one if any of the resistances are outside of the specification.
