Home >> Acura >> 1999 >> NSX V6-3.0L DOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Clutch Switch Signal

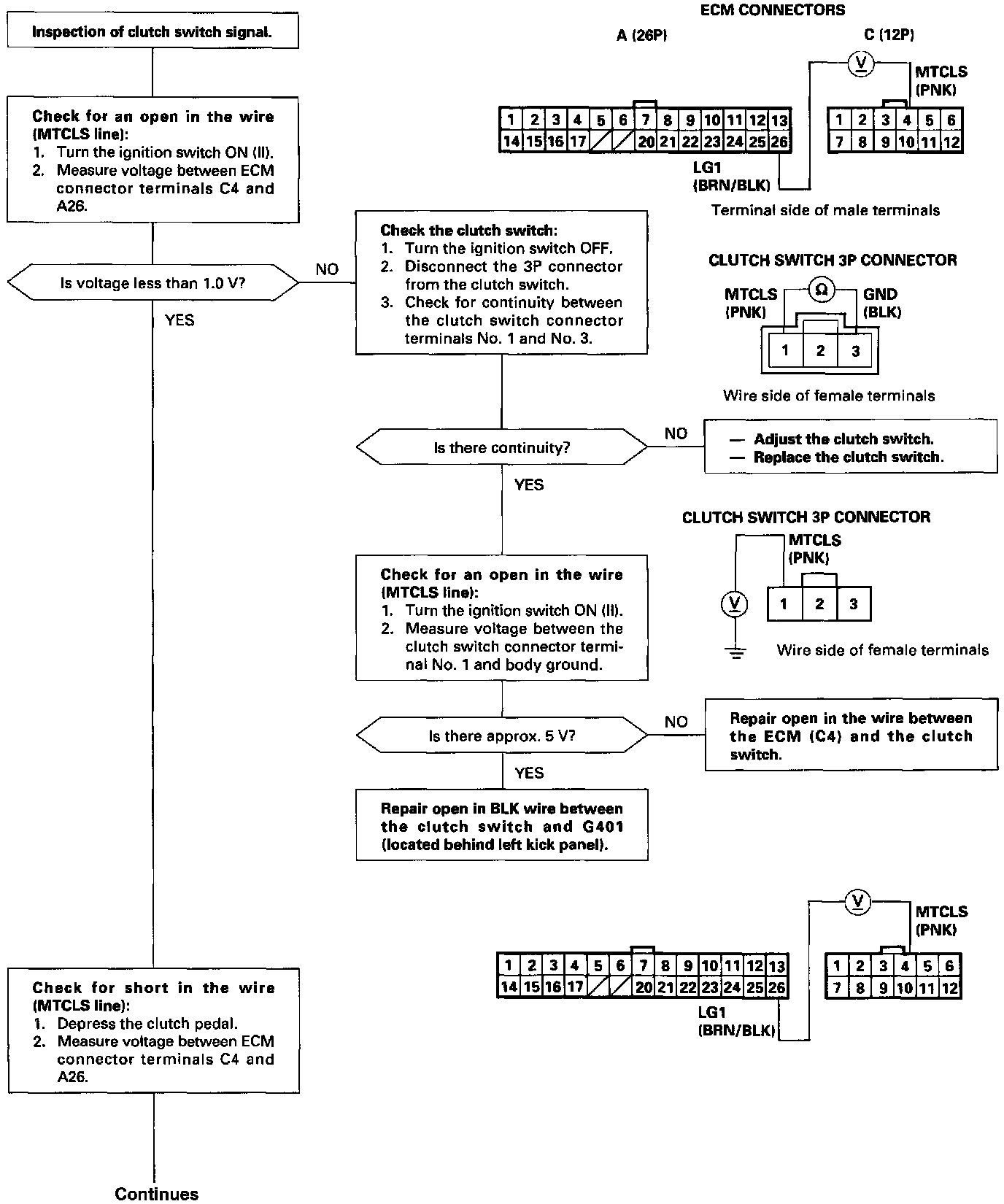

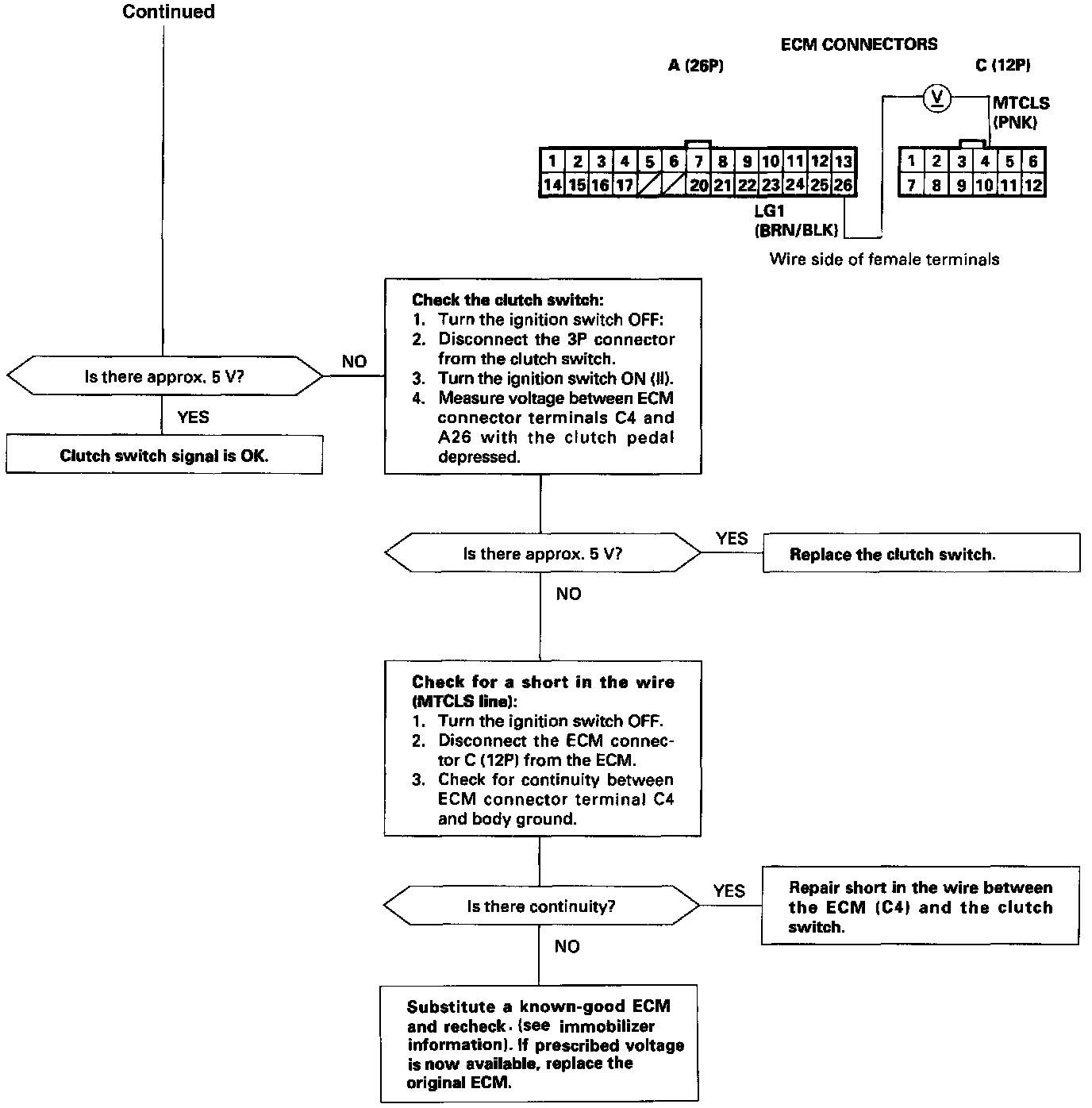

Clutch Switch Signal








This signals the ECM when the clutch is engaged.
