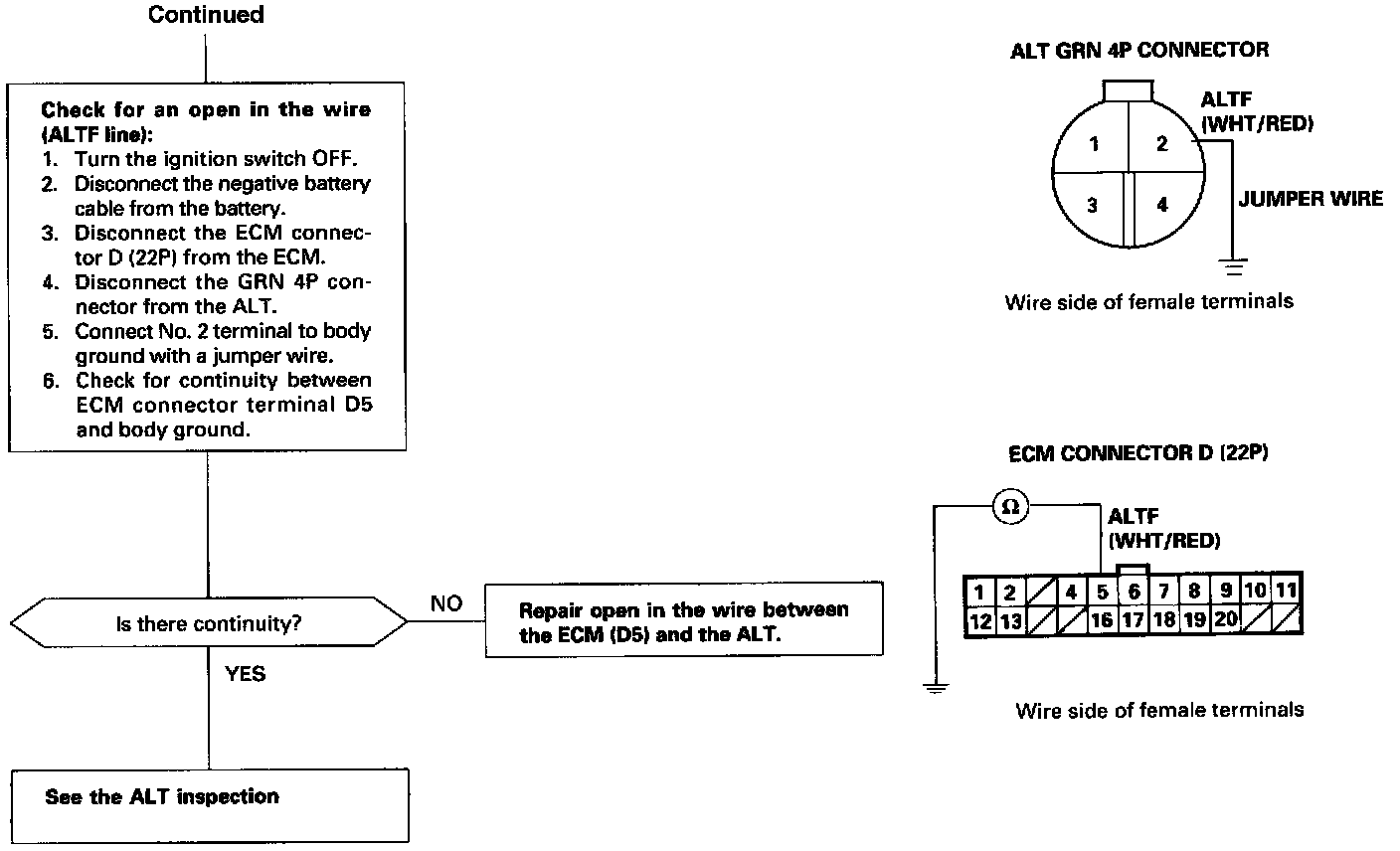

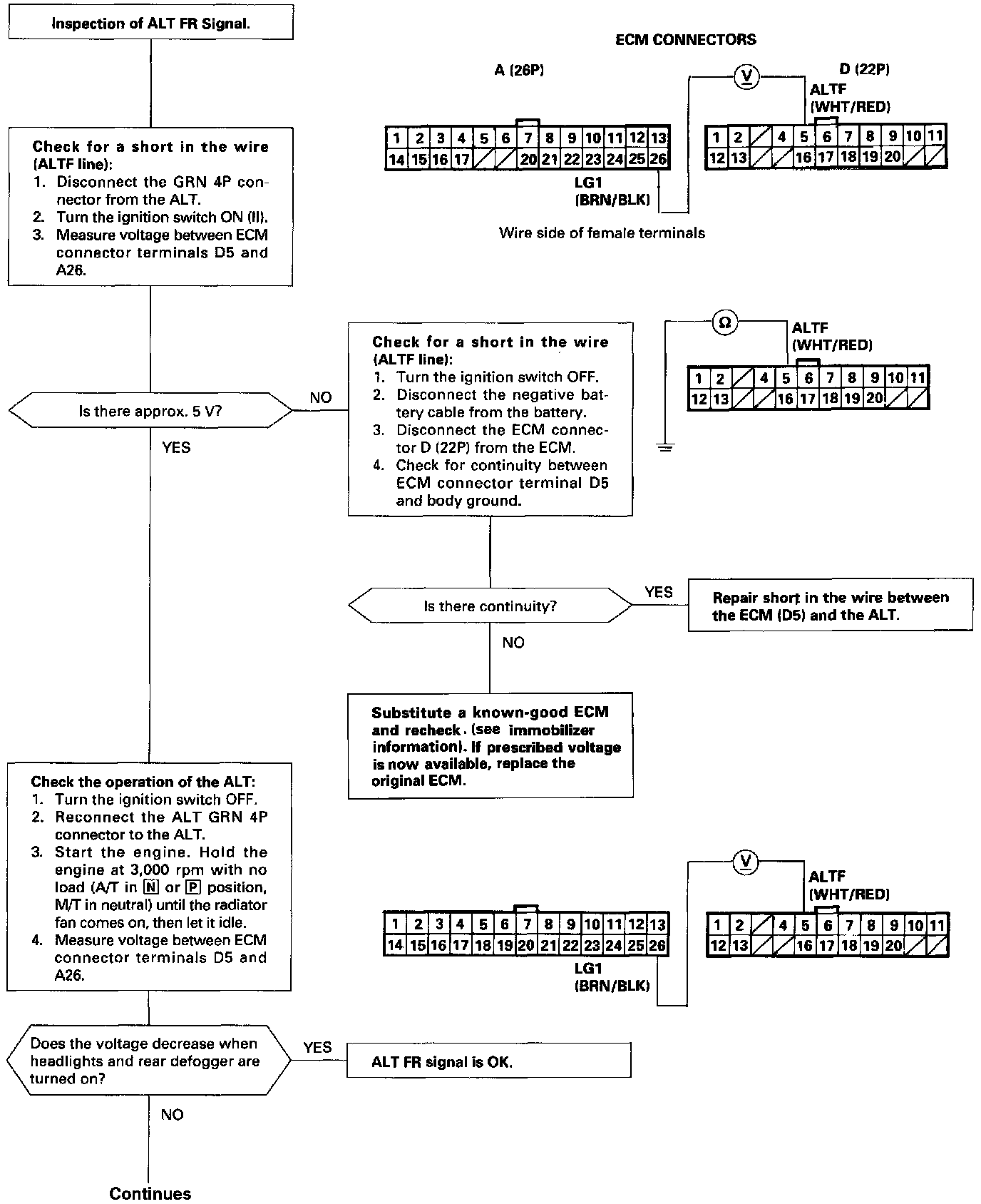

Alternator FR Signal Circuit Troubleshooting








This signals the ECM when the Alternator (ALT) is charging.
