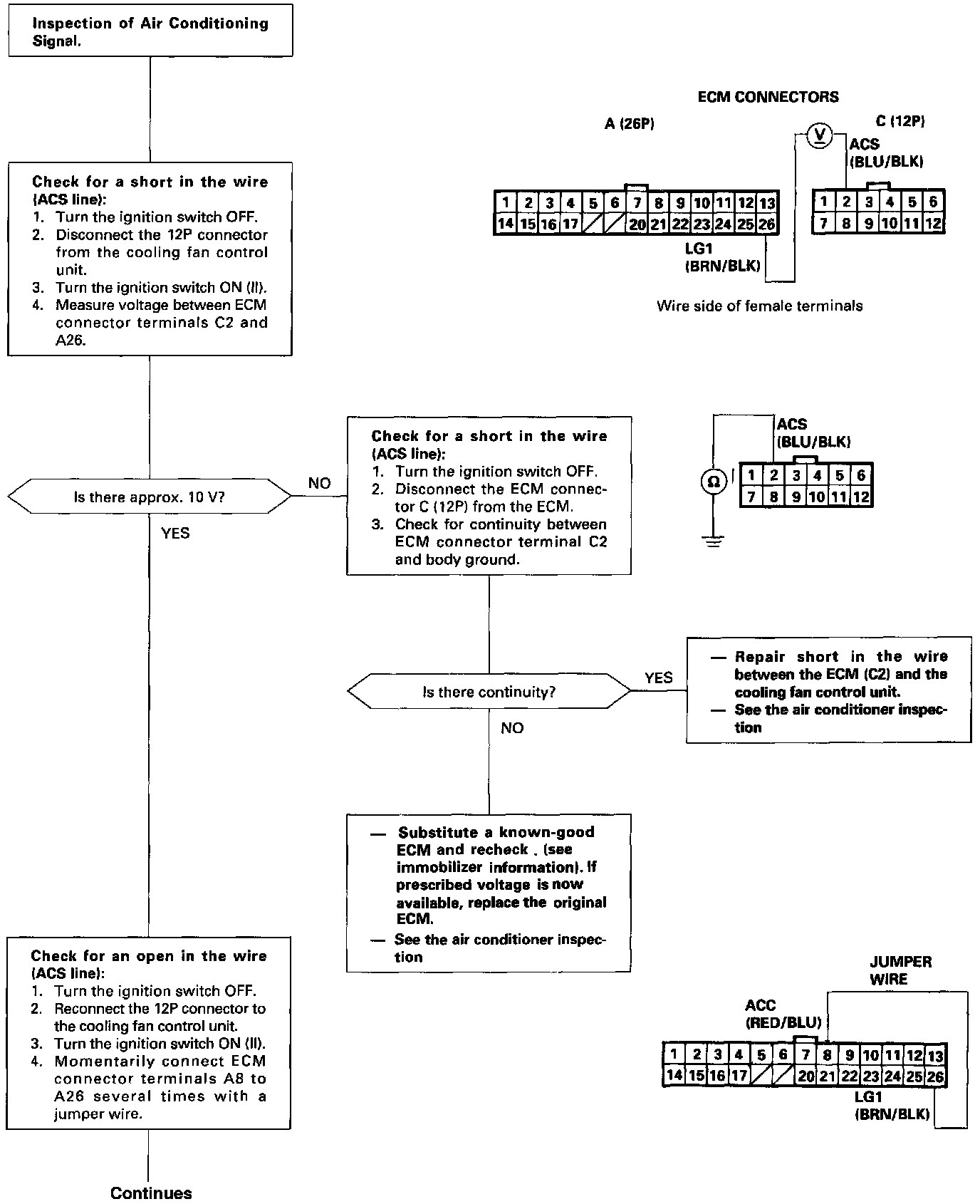

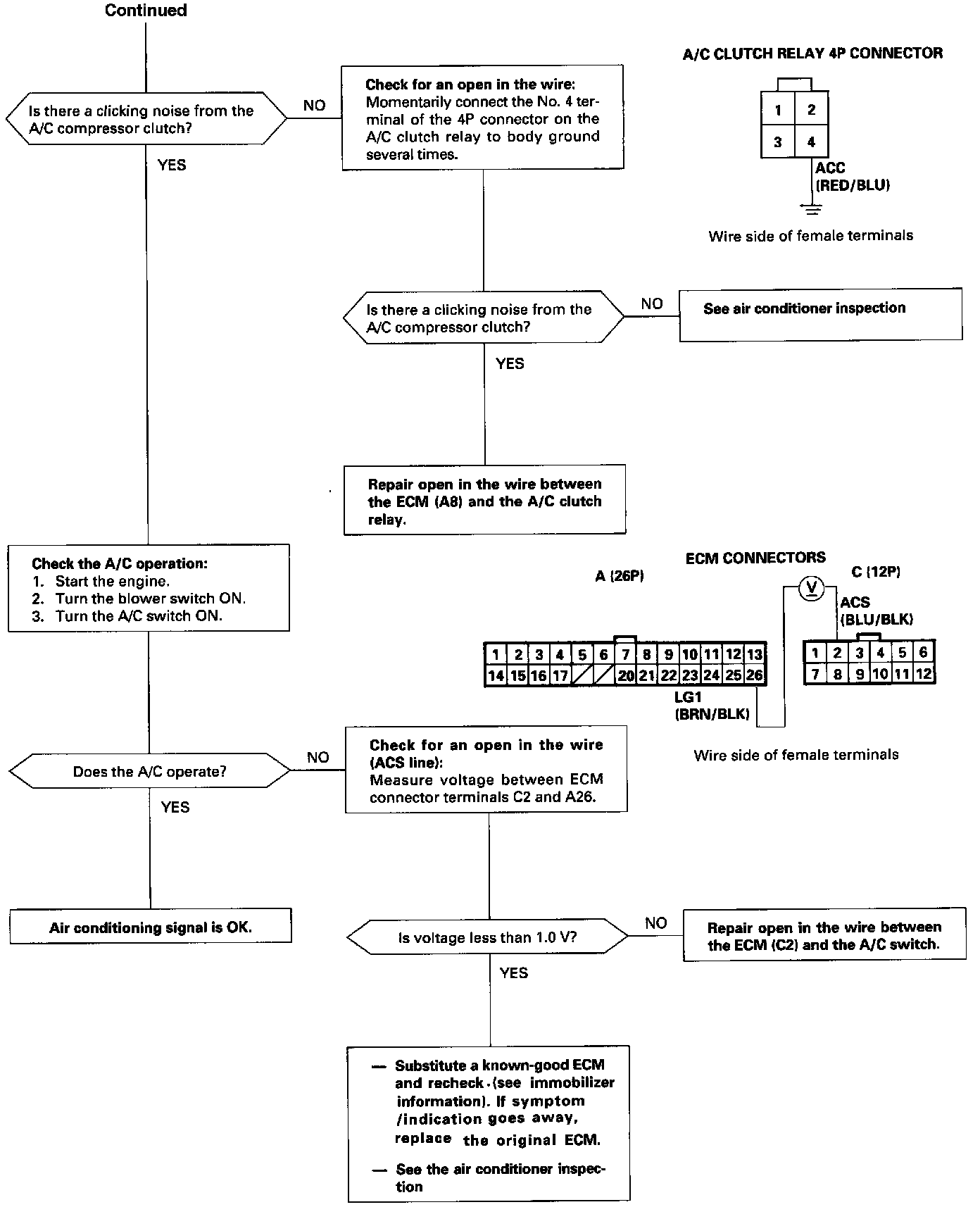

A/C Signal Circuit Troubleshooting
A/C Signal Circuit Troubleshooting
This signals the ECM when there is a demand for cooling from the air conditioning system.
