Headlight Relay Test

1. Remove the headlight relay from the under-hood fuse/relay box.

Headlight Relay Test:

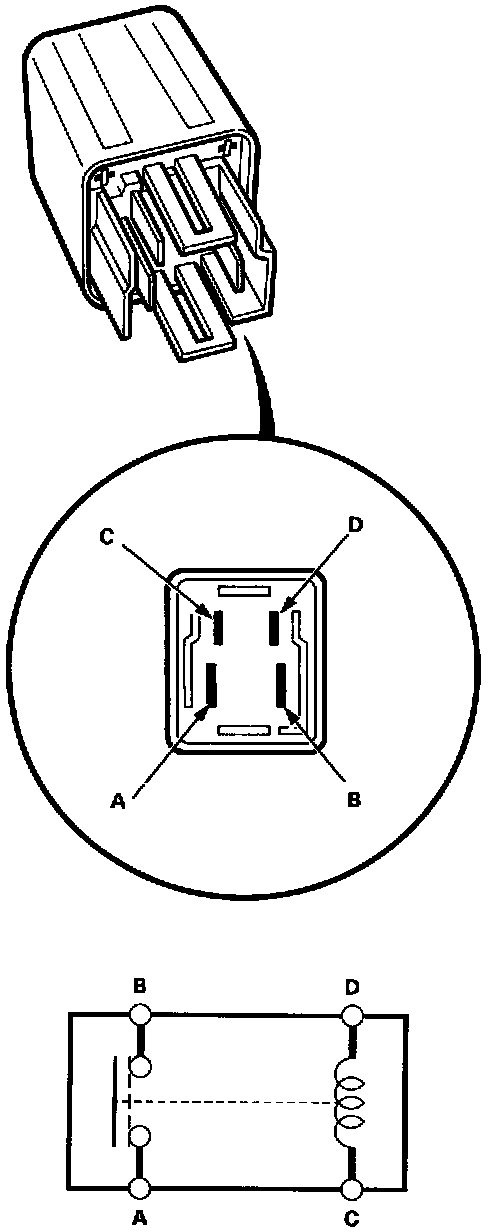

2. Check continuity at the relay terminals.
- There should be continuity between the C and D terminals.
- There should be continuity between the A and B terminals when power and ground are connected to the C and D terminals.
- There should be no continuity between the A and B terminals when power is disconnected.
