Home >> Acura >> 1999 >> NSX V6-3.0L DOHC (VTEC) >> Repair and Diagnosis >> Lighting and Horns >> Locations >> Lighting System

Lighting System

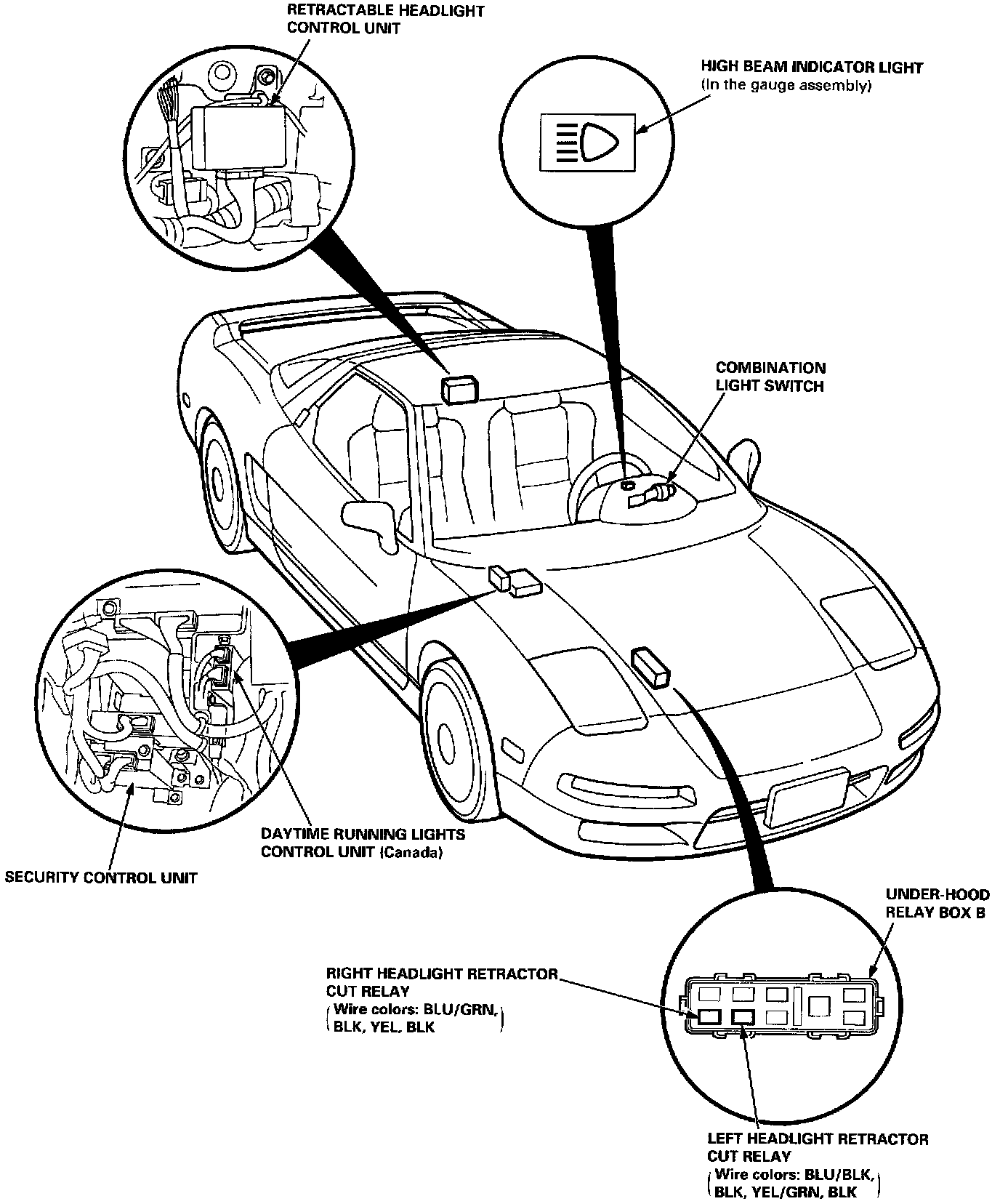

Lighting System-Component Location Index (Part 1 Of 2):

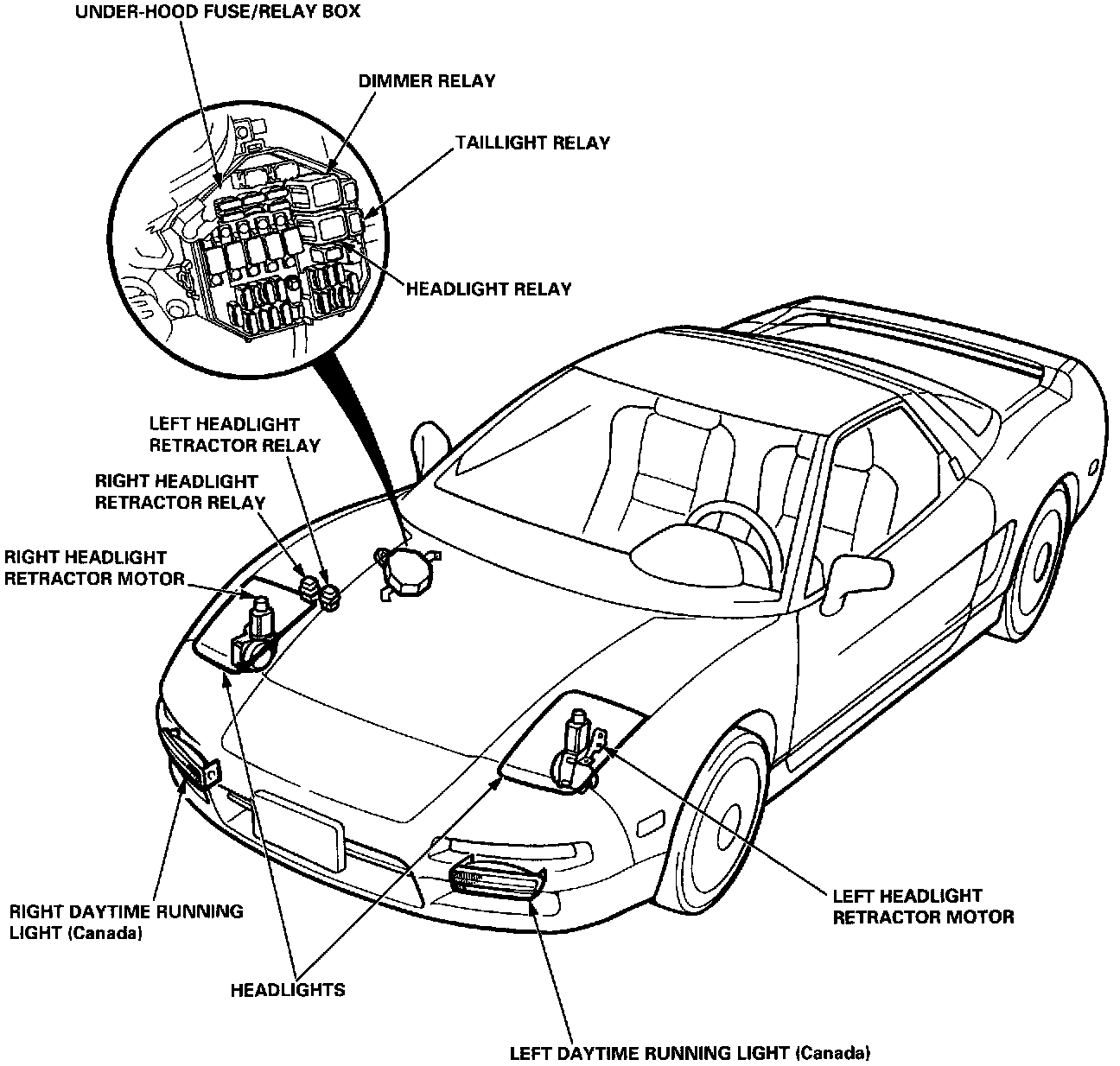

Lighting System-Component Location Index (Part 2 Of 2):
