Headlamp Motor: Testing and Inspection

1. Remove the retractor motor.
2. Test the motor by connecting battery power to the A terminal and ground to the D terminal. The motor should run continuously.

Retractor Motor Test:

3. If the motor does not run or fails to run smoothly, replace it.

NOTE: The illustration shows the motor in the condition when the headlight is fully raised.

Retractor Motor Test:

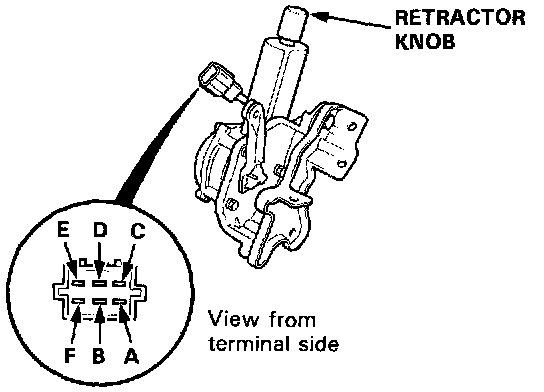

4. Disconnect the power supply, and check for continuity between the terminals according to the table while turning the retractor knob clockwise.
