Transmission Shift Position Indicator Lamp: Locations

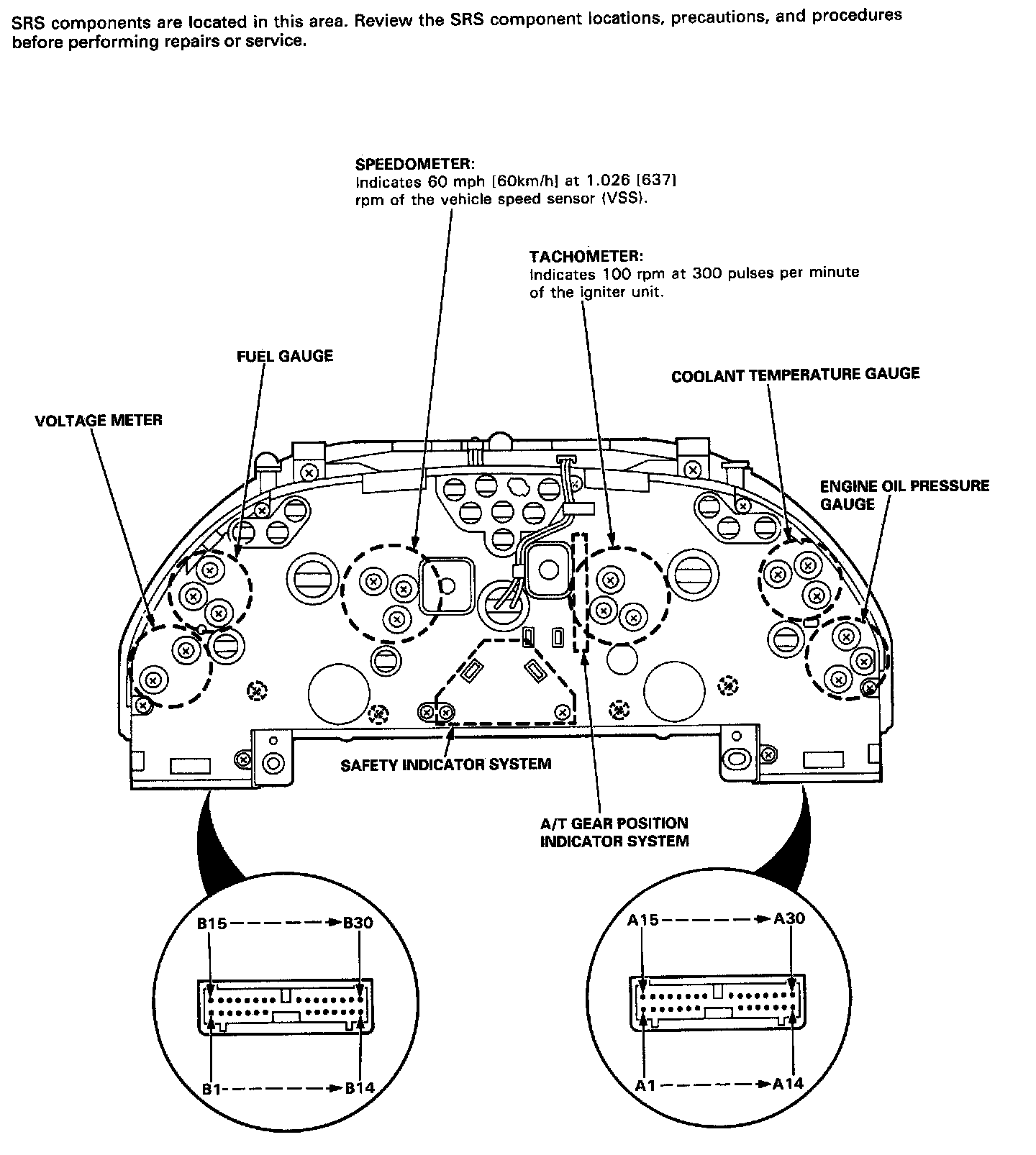

Gauge/Terminal Location Index:

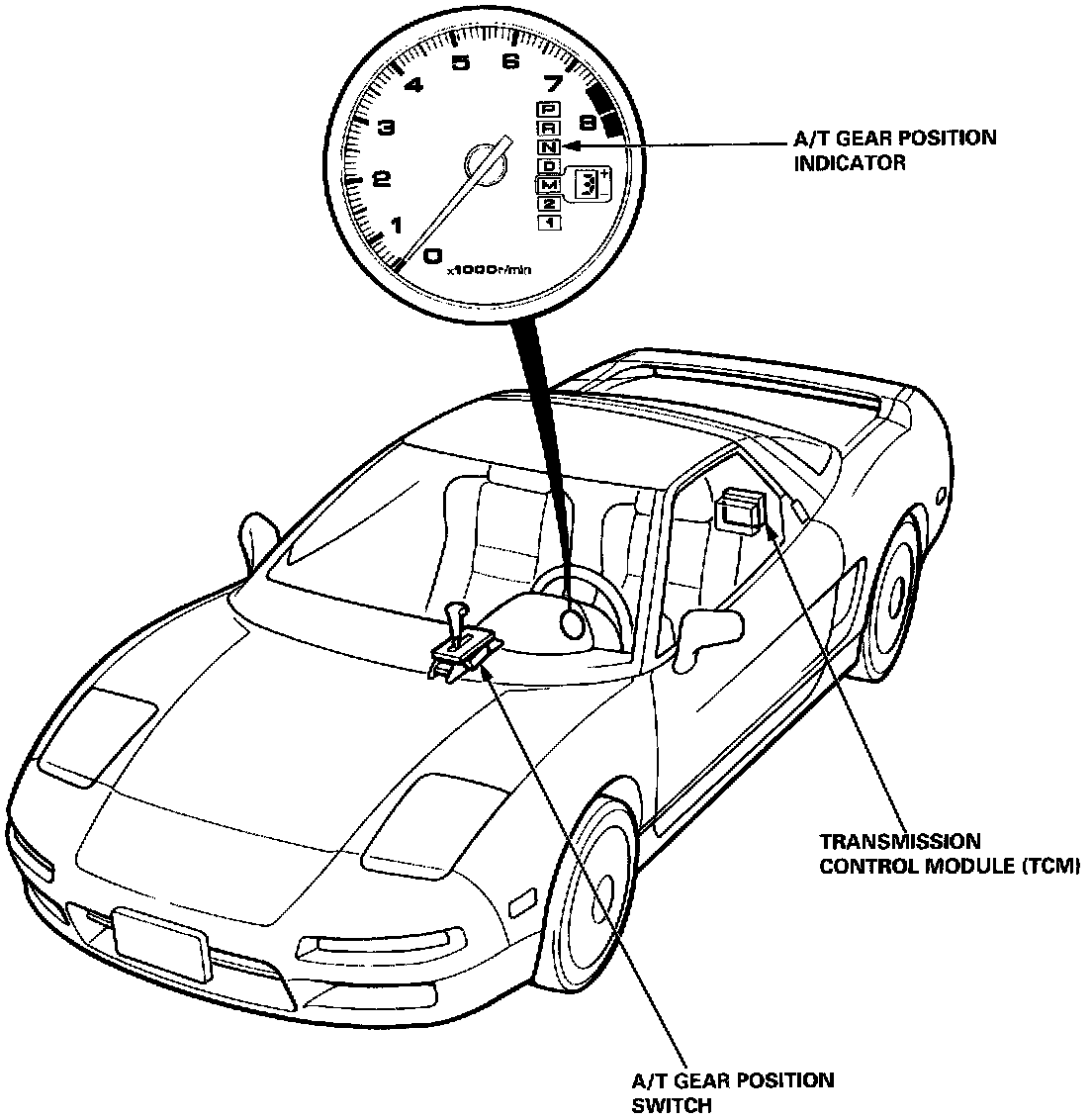

A/T Gear Position Indicator-Component Location Index:

SRS components are located in this area. Review the SRS component locations, precautions, and procedures in SRS before performing repairs or service.


NOTE: For [3/M] indicator troubleshooting, refer to Transmission Control Systems.
