Gauge Assembly Removal and Installation

SRS components are located in this area. Review the SRS component locations, precautions, and procedures in SRS before performing repairs or service.

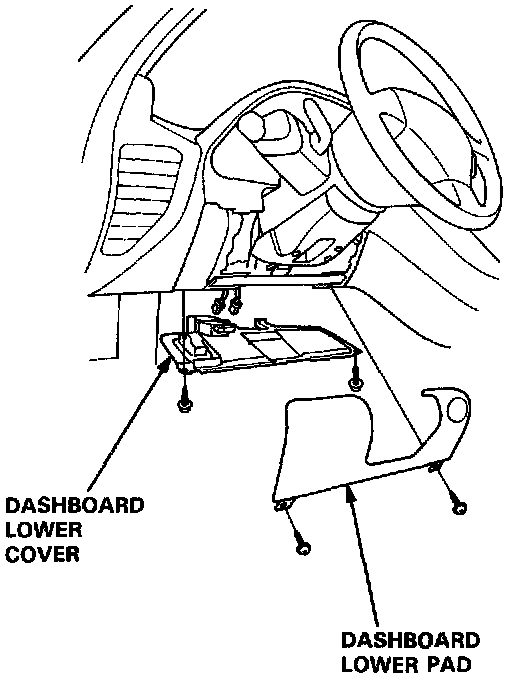

1. Remove the dashboard lower cover, and disconnect the floor wire harness connectors.

Gauge Assembly Removal:

2. Remove the two screws, then remove the dashboard lower pad from the dashboard.

Gauge Assembly Removal:

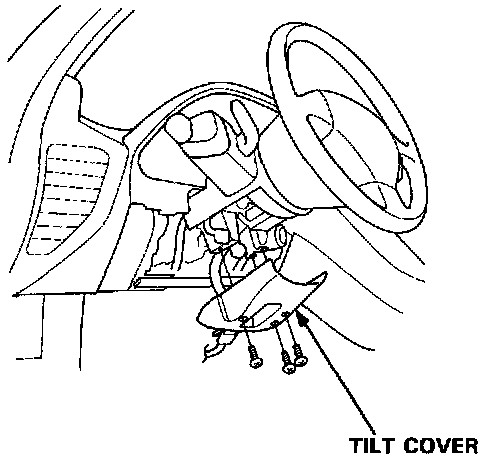

3. Remove the three screws, then remove the tilt cover from the steering column.
4. Disconnect the connectors from the instrument panel switches.

Gauge Assembly Removal:

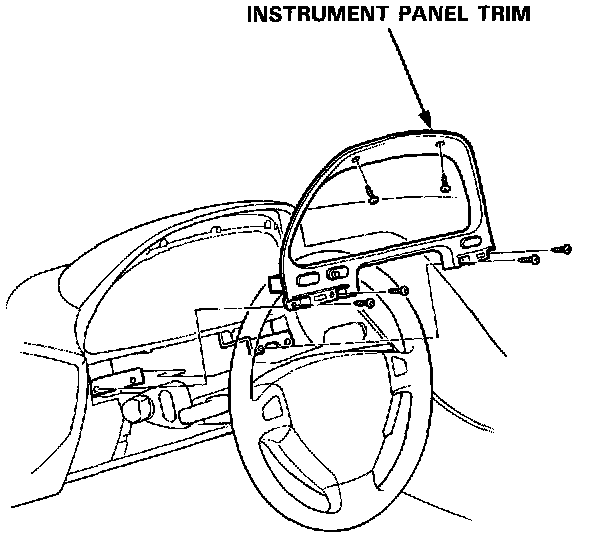

5. Remove the six screws, then remove the instrument panel trim from the dashboard.

Gauge Assembly Removal:

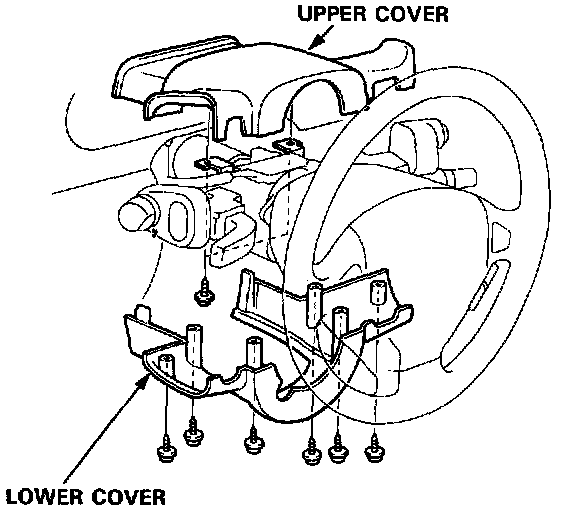

6. Remove the eight screws, then remove the steering column covers,

Gauge Assembly Removal:

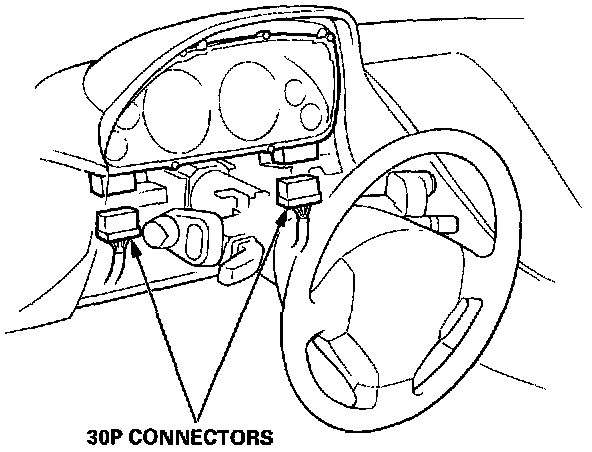

7. Disconnect the 3OP connectors from both sides of the gauge assembly.

Gauge Assembly Removal:

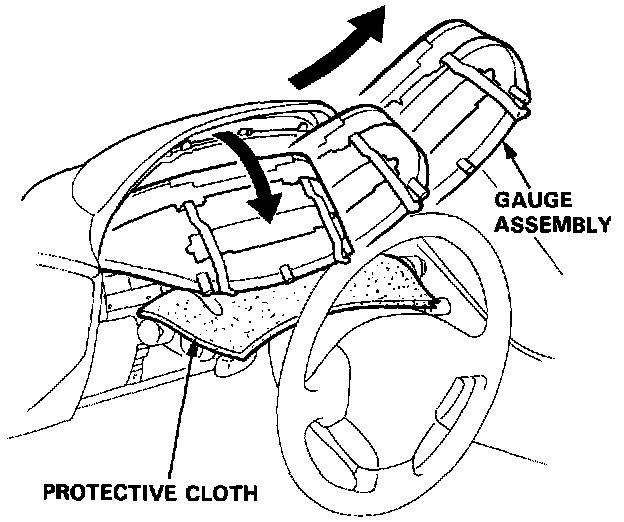

8. Lay a protective cloth on the combination switches to prevent scratching the gauge assembly. Remove the four screws, then take out the gauge assembly as shown.
