Electrical Diagrams

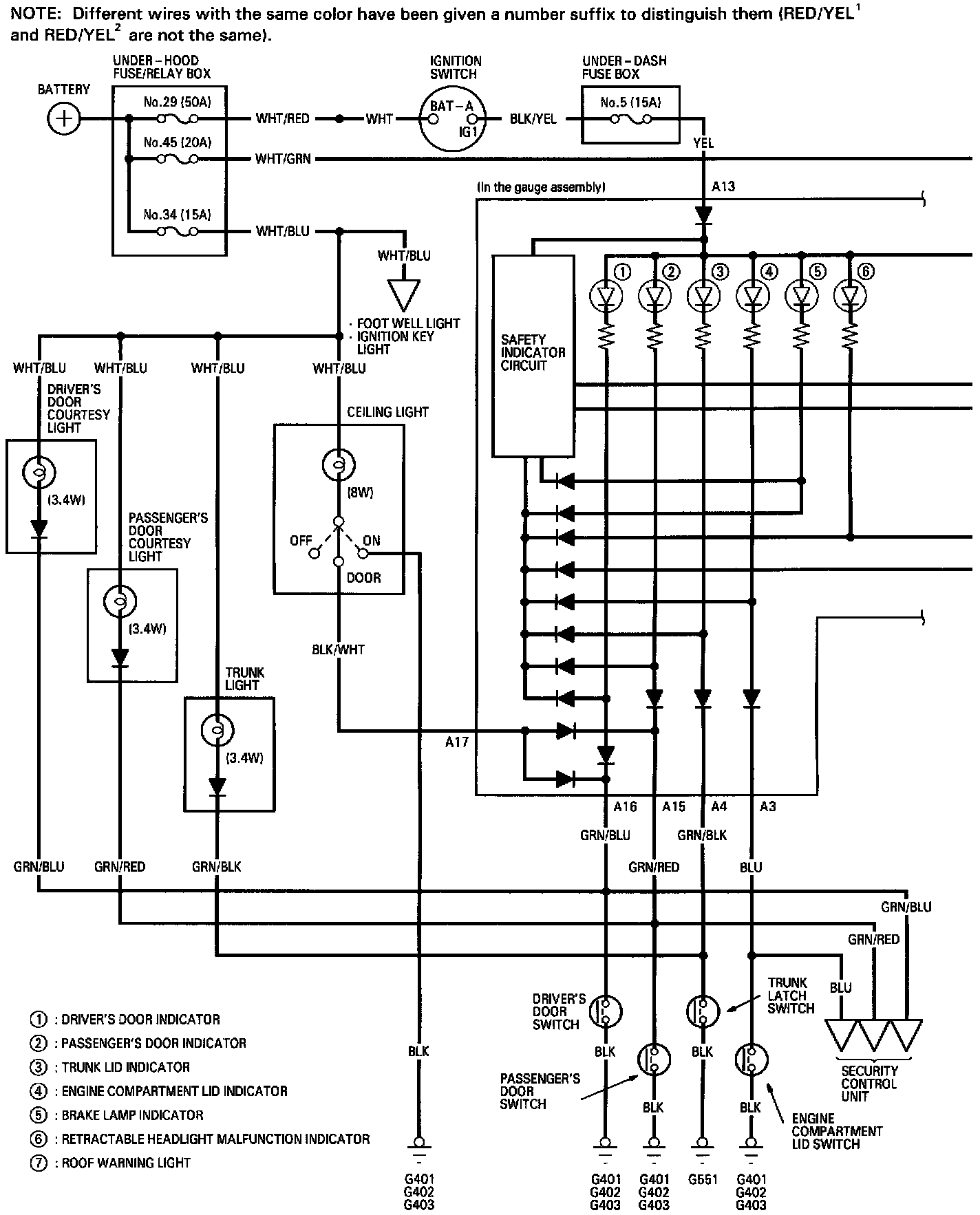

Safety Indicator-Circuit Diagram (Part 1 Of 2):



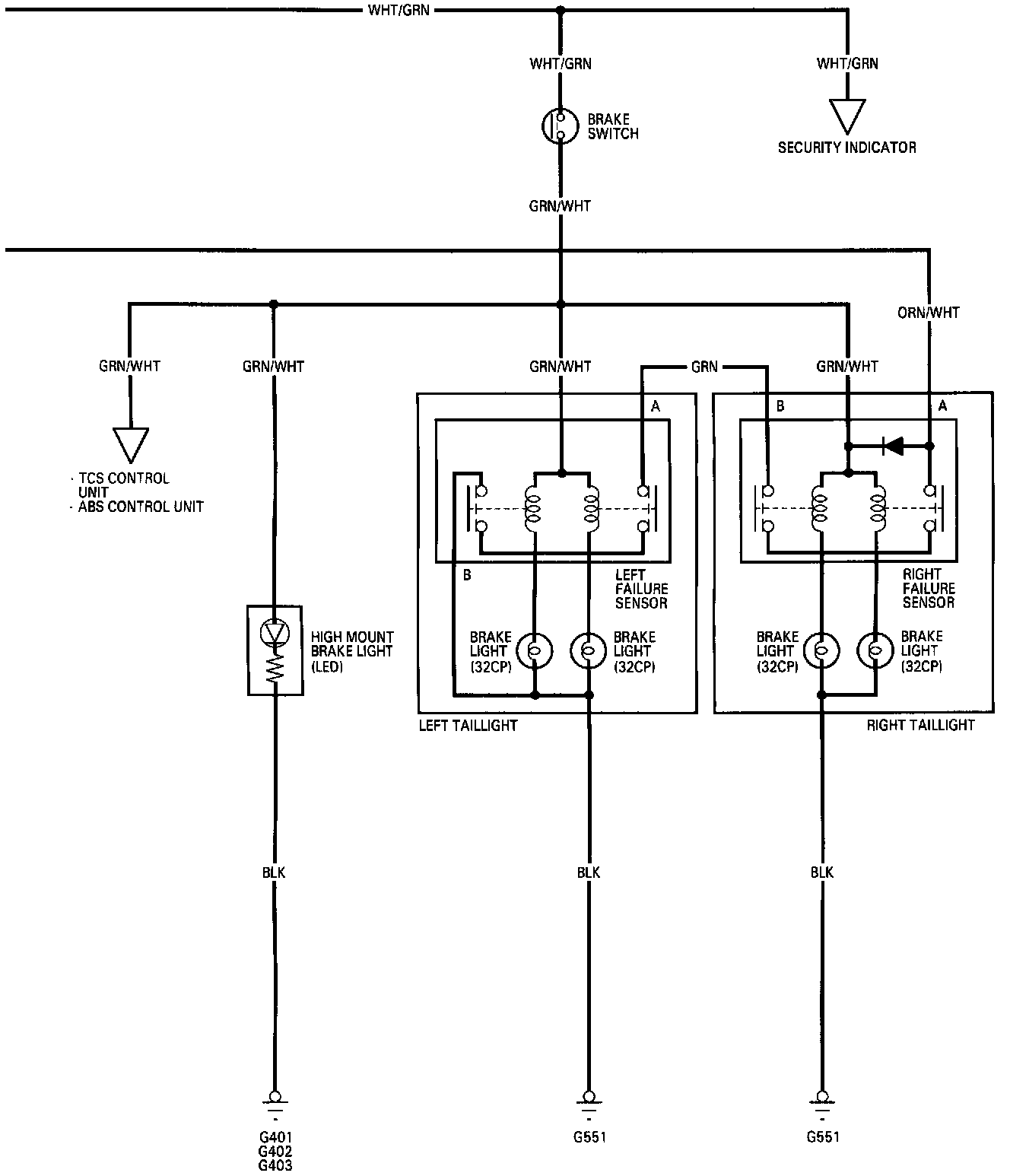

Safety Indicator-Circuit Diagram (Part 2 Of 2):

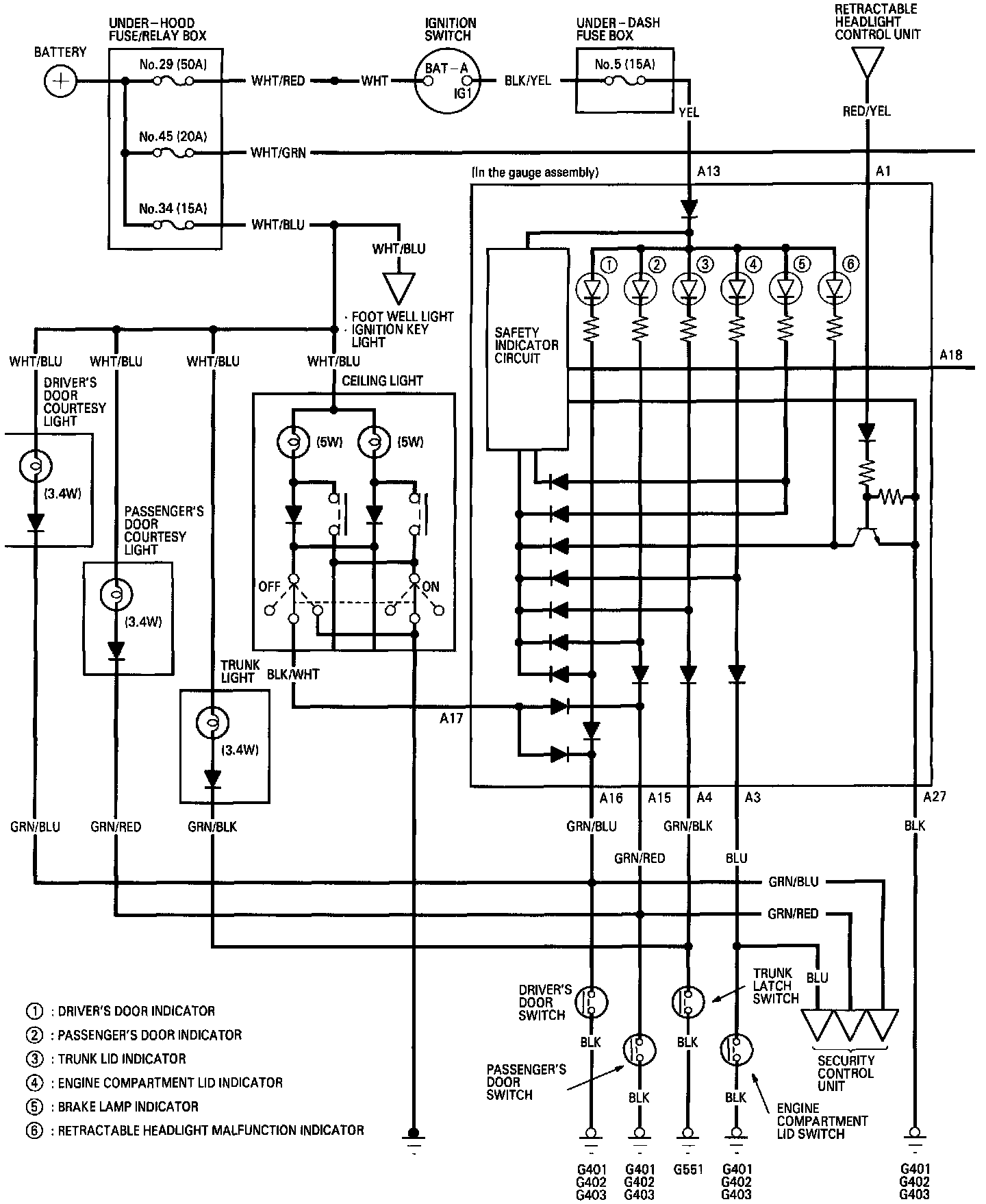

Safety Indicator-Circuit Diagram (Open Top) (Part 1 Of 2):



Safety Indicator-Circuit Diagram (Open Top) (Part 2 Of 2):
