Clock: Service and Repair

CAUTION: Be careful not to damage the center air vent or clock.

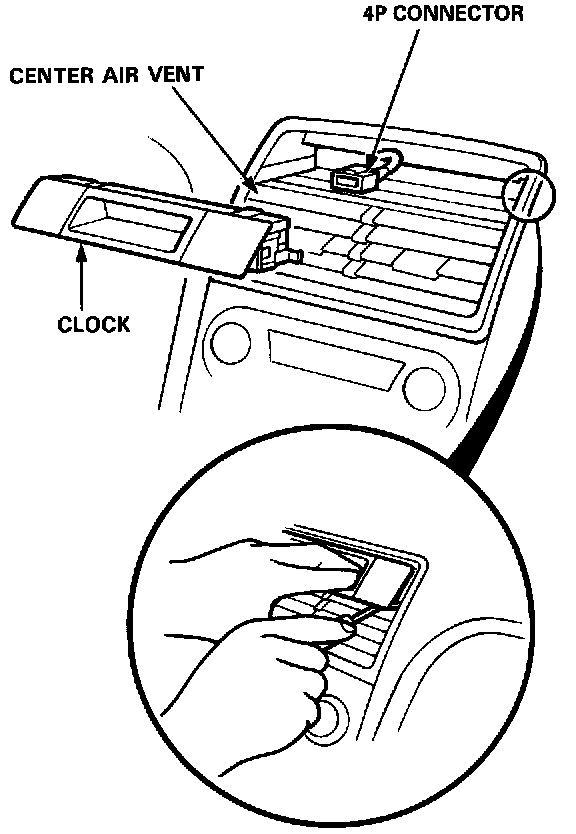

1. Pull the clock out with your fingers (if necessary, use a screwdriver).

Clock Removal:

2. Disconnect the 4P connector from the clock.
