Home >> Acura >> 1999 >> NSX V6-3.0L DOHC (VTEC) >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser Fan >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

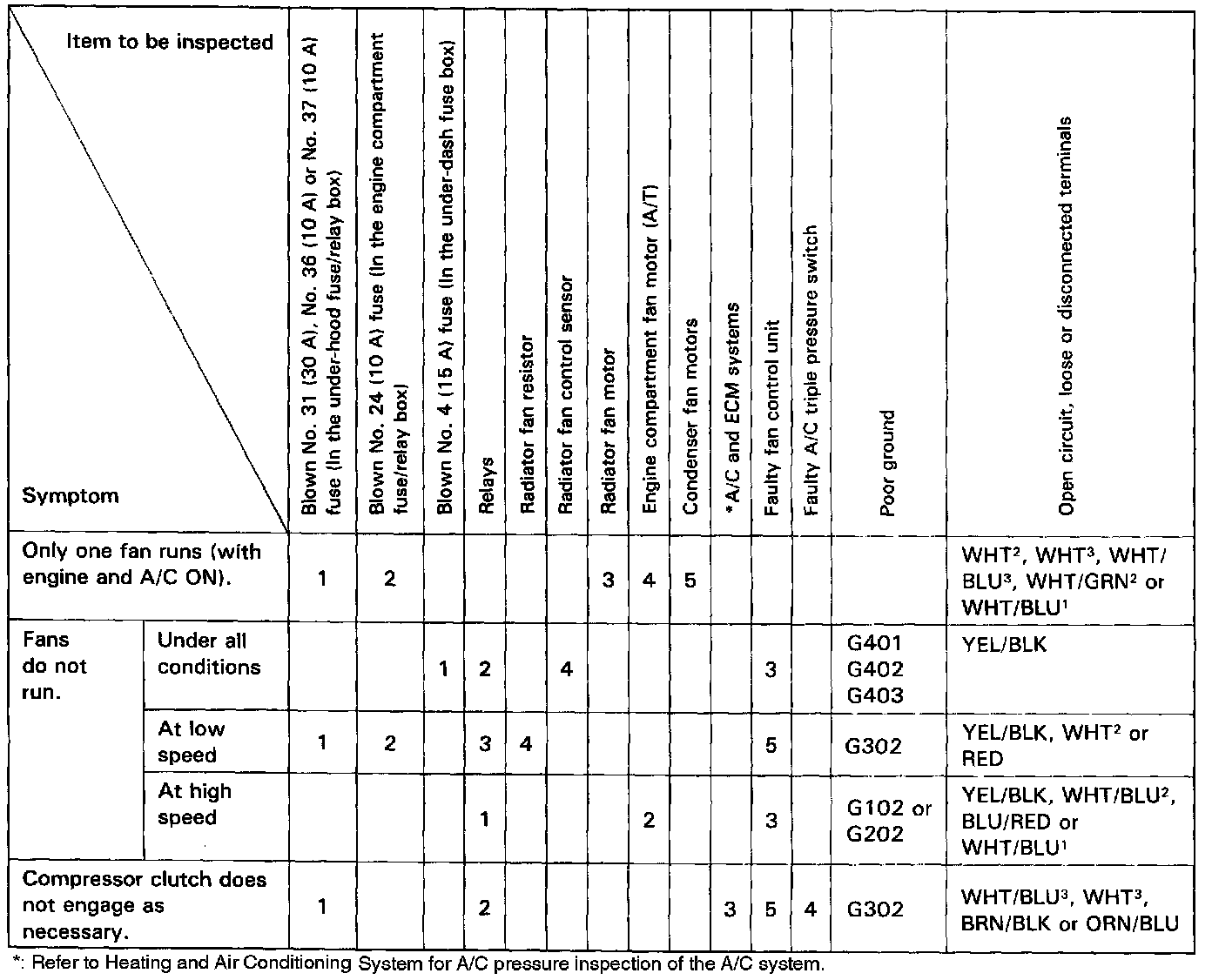

Troubleshooting:






NOTE: The numbers in the table show the troubleshooting sequence.
