Non-Trouble Code Procedures

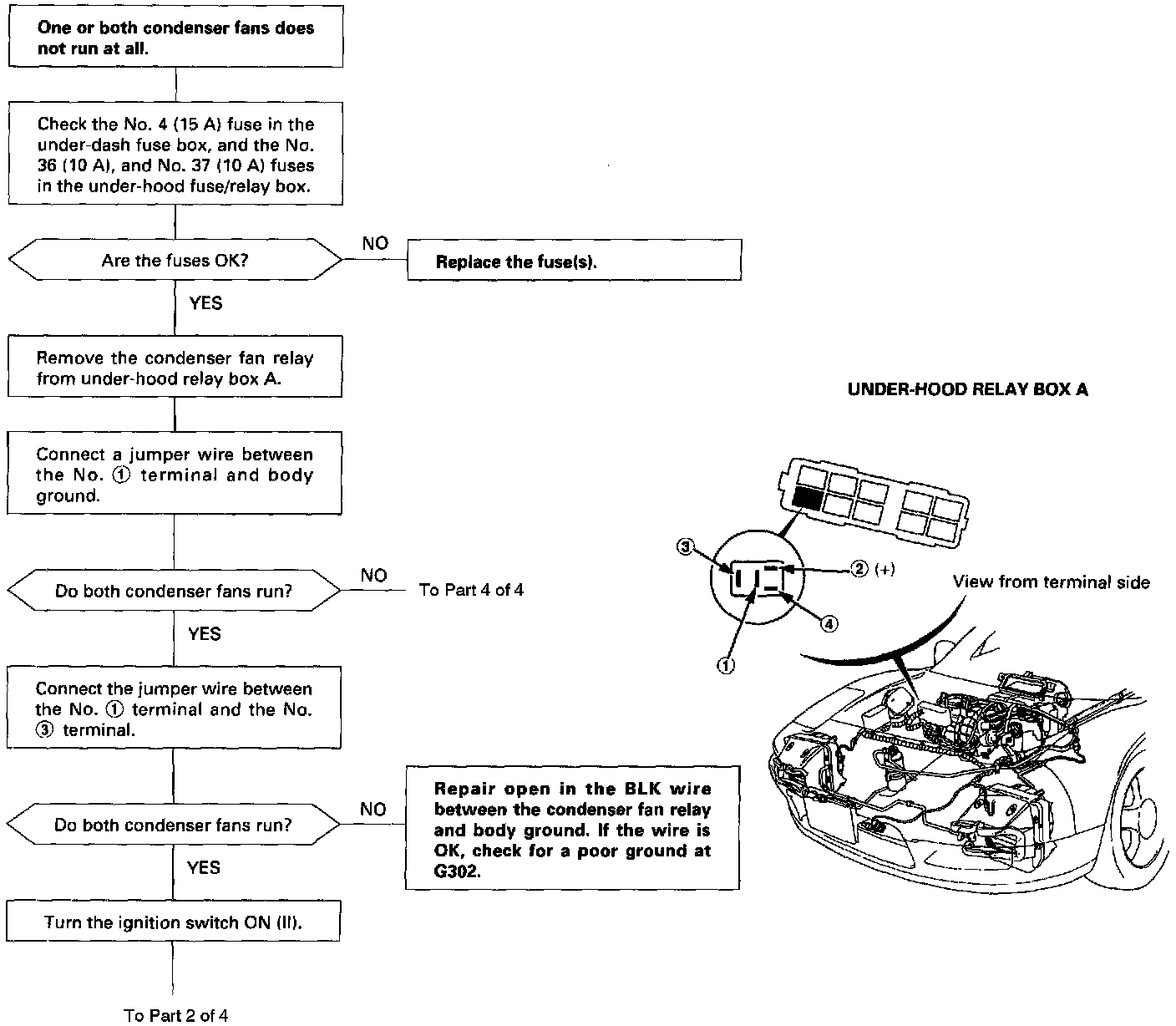

Flowchart-condenser Fan (Part 1 Of 4):

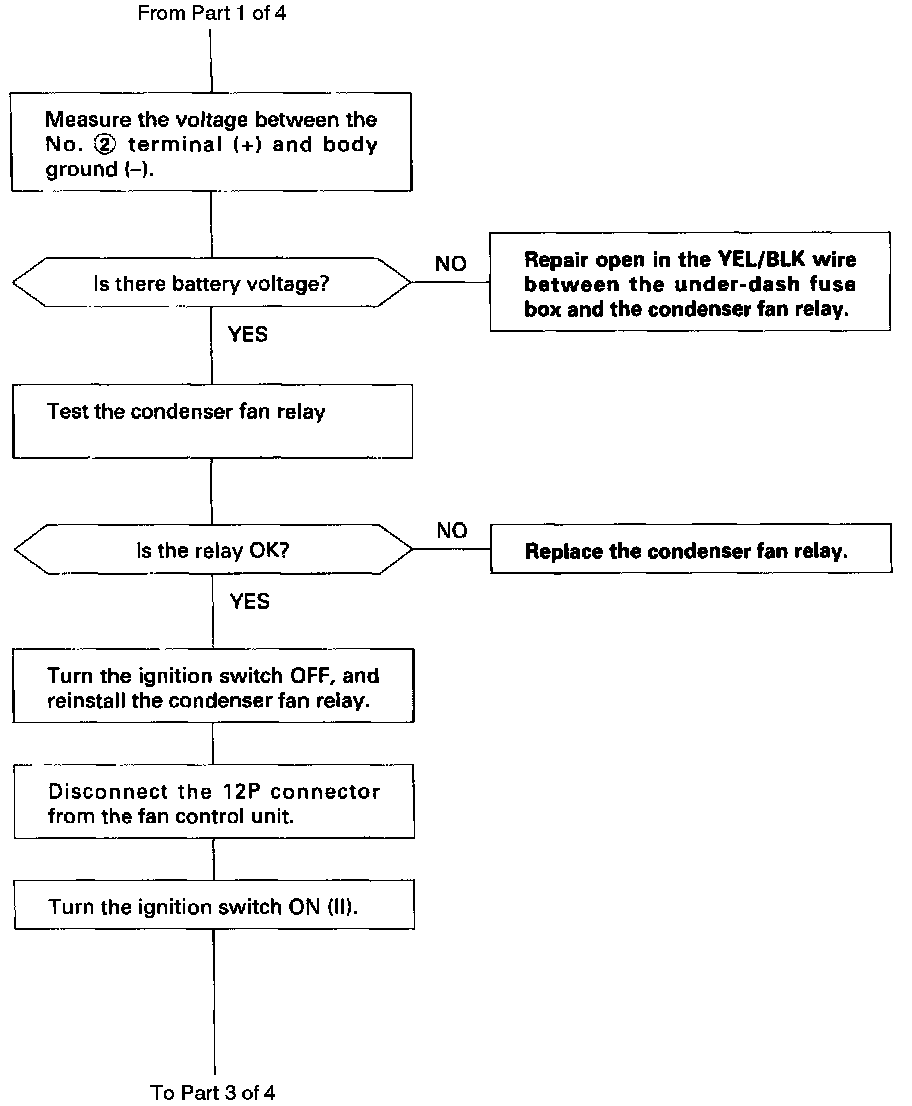

Flowchart-condenser Fan (Part 2 Of 4):

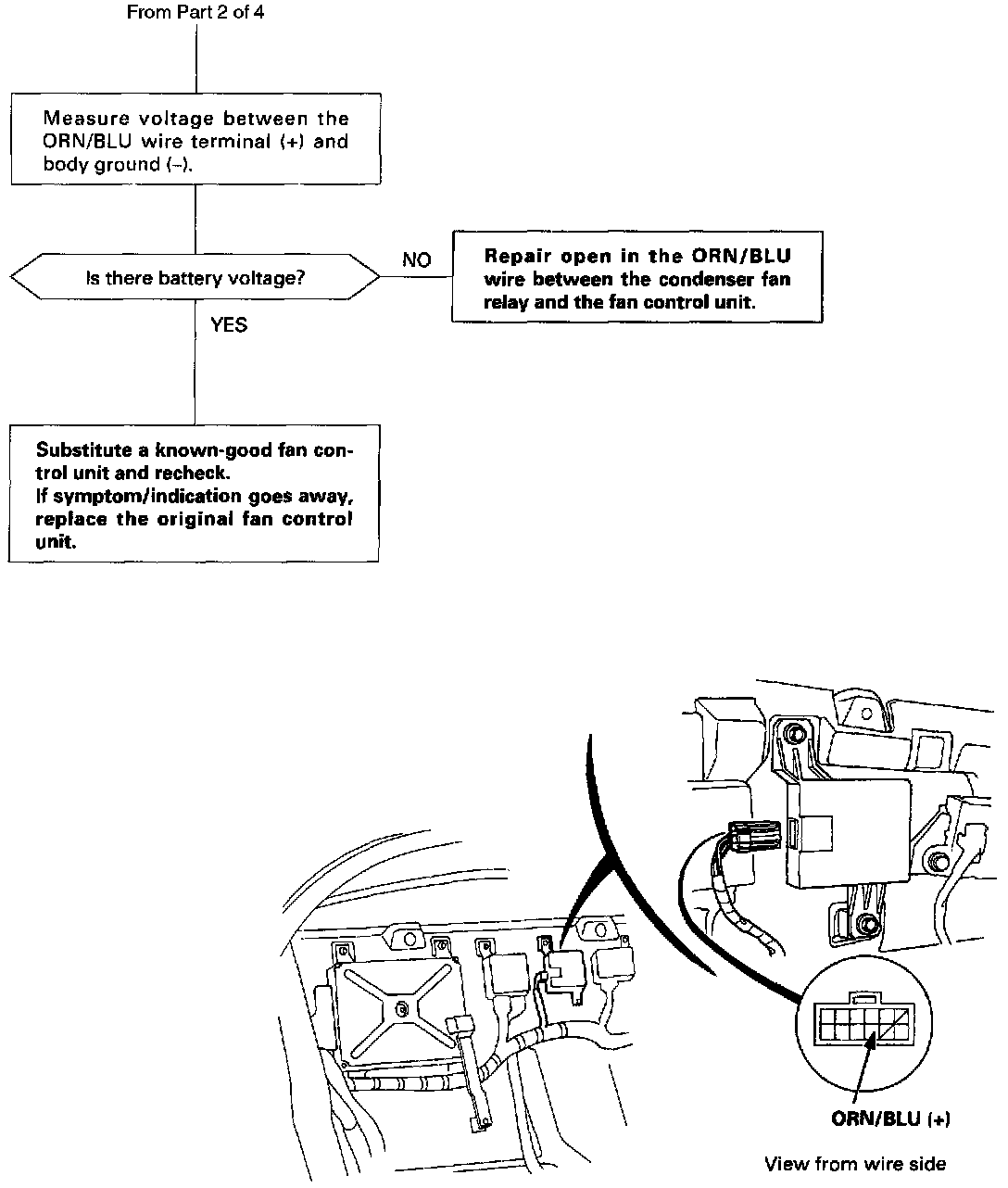

Flowchart-condenser Fan (Part 3 Of 4):

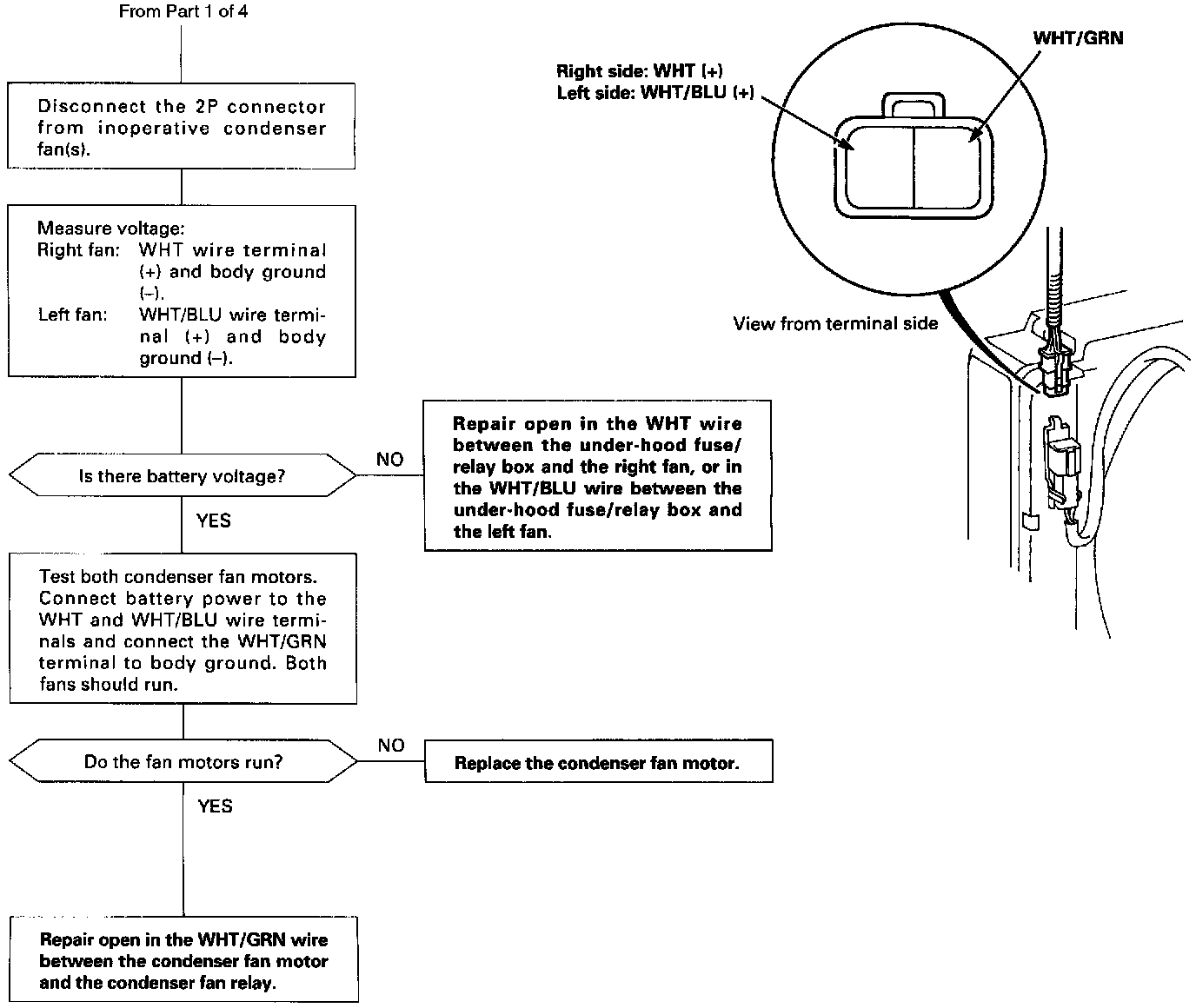

Flowchart-condenser Fan (Part 4 Of 4):
