Condenser Fan Motor Test

Condenser Fan Motor Test:

1. Disconnect the 2P connector from the condenser fan motor.

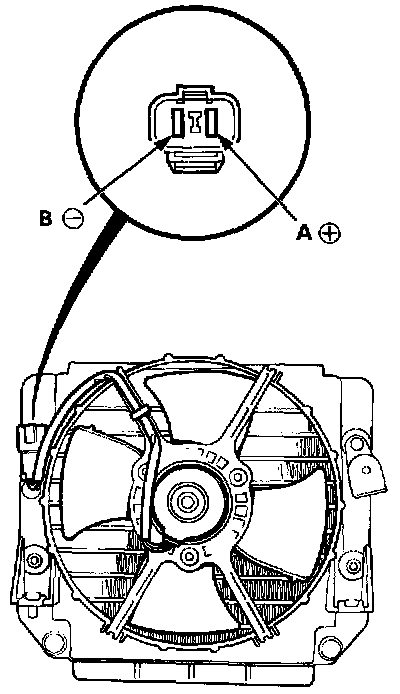

NOTE: The illustration shows the right condenser.


2. Test the motor by connecting battery power to the A terminal, and ground to the B terminal.
3. If the motor fails to run or does not run smoothly, replace it.
