Home >> Acura >> 1999 >> NSX V6-3.0L DOHC (VTEC) >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser Fan >> Diagrams >> Electrical Diagrams

Electrical Diagrams

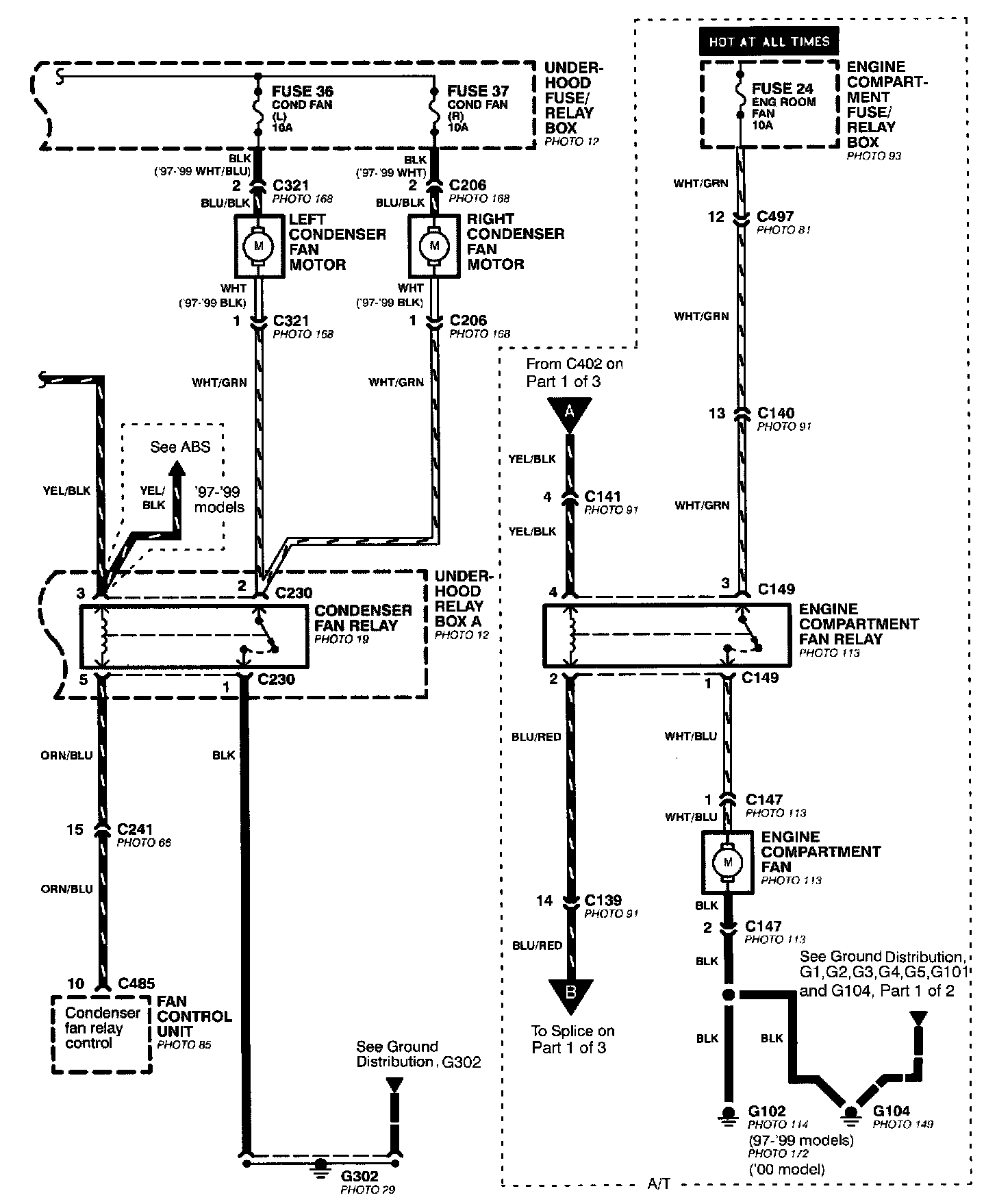

part 1 of 3:

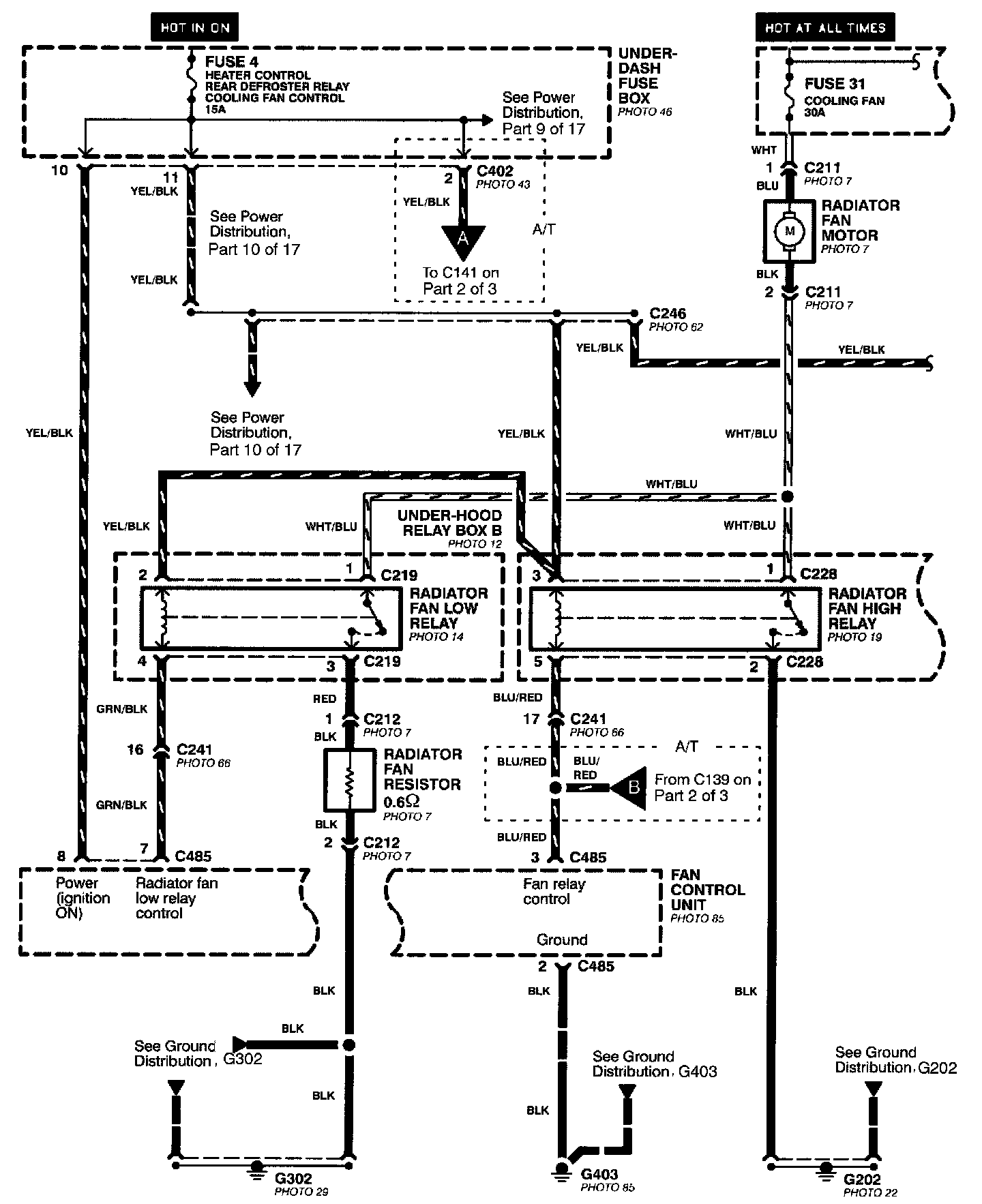

part 2 of 3:

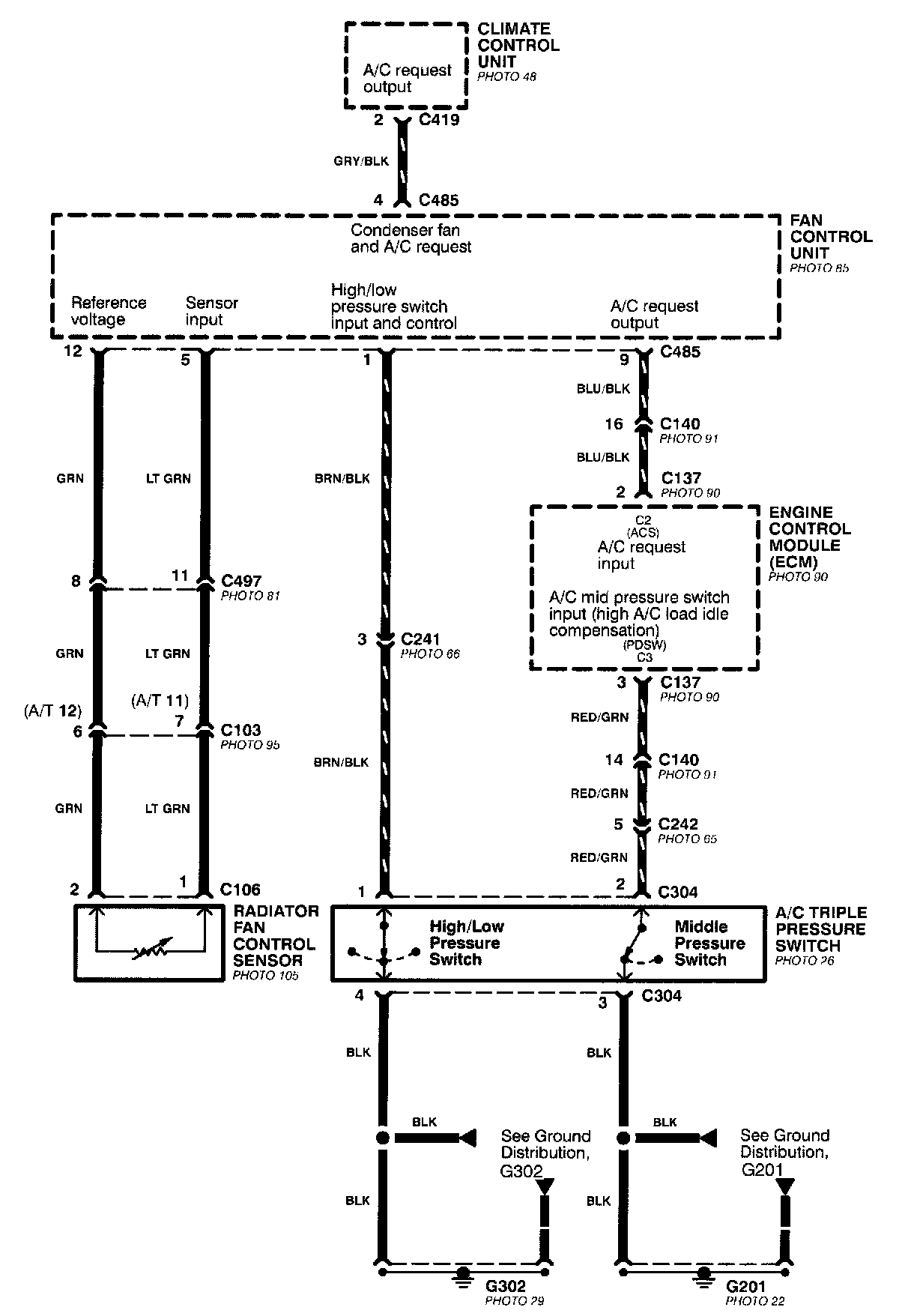

part 3 of 3:
